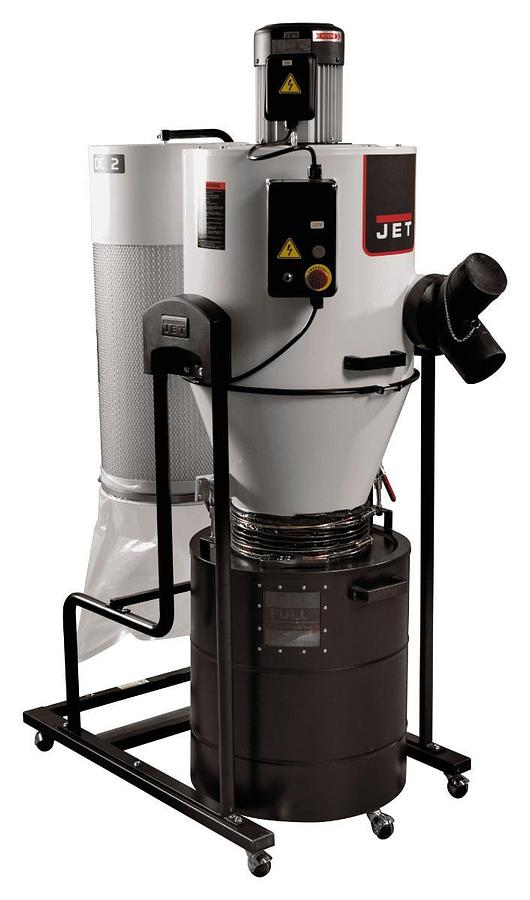

JCDC-2 Cyclone Dust Collector, 2HP, 230V

Description

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.

Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends

Double paddle manual cleaning system quickly cleans the pleated filter

Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below

Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying

Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction

Included radio frequency remote control works from up to 50 feet away

Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff

Swivel casters make it easy to move the unit around the shop

Cyclone's two stage separation provides more working CFM than comparable horsepower single stage units

Specifications

Manufacturer	Jettools
Model	JCDC-2
Condition	New
Stock Number	JT9-717520
1-Hose Connection Diameter (In.)	6
2-Hoses Connection Diameter (In.)	4
Canister Filter Length (In.)	22-5/8
Collection Drum Capacity (gal.)	30
Filter Efficiency (Micron)	1
Footprint (L x W/In.)	50-5/8 x 25-7/8
Impeller Material	Steel
Max. Static Pressure (Wc.)	10.079
MERV Value	13
Motor Power (HP)	2
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Static Pressure Loss (EU Method) (Wc.)	3.780
Static Pressure Loss (US Method) (Wc.)	2.520
Warranty	5 Year
Gross Weight	235.0
Net weight	207.0
