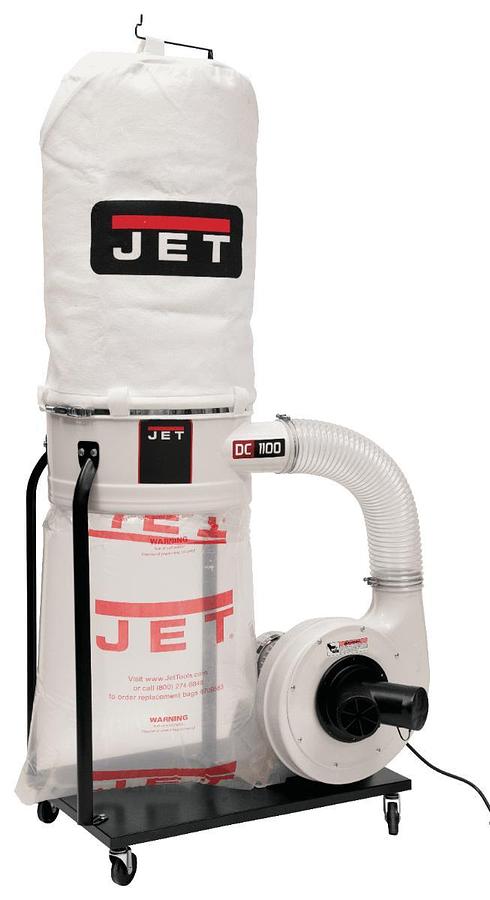

Dust Collector, 1.5HP 1PH 115/230V, 5-Micron Bag Filter Kit | DC-1100VX-5M

or
Call (954)444-4004

Description

The JET® DC-1100VX-5M features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.


  • Eliminates premature filter clogging for sustained performance
  • High air velocity (CFM) design stands up to any competitive specifications
  • Includes four casters for maneuverability and total portability
  • Industrial controls designed for years of trouble-free use
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • Single-stage design for economical and quiet operation
  • Vortex Cone improves chip separation and collector bag packing efficiency

    • Show All

    Specifications

    ManufacturerJettools
    ModelDC-1100VX-5M
    ConditionNew
    Stock NumberJT9-708658K
    1-Hose Connection Diameter (In.)6
    2-Hoses Connection Diameter (In.)4
    Air Flow @ 4" (CFM)1100
    Bag Diameter (In.)20
    Collection Bag Capacity (Cu. Ft.)5-3/10
    Collection Bag Length (In.)30
    Efficiency (Micron)5
    Impeller MaterialSteel
    Motor Amps11/5.5
    Motor Phase1
    Motor Power (HP)1-1/2
    Motor Voltage (V.)115/230
    Overall Dimensions (L x W x H) (In.)37" x 28" x 79"
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Sound Rating (Db.)70 - 80
    Static Pressure (Wc.)10-1/2
    Style (Type)Bag
    Velocity @ 4" (FPM)12,571
    Warranty5 Year
    Gross Weight143.0
    Net weight130.0
