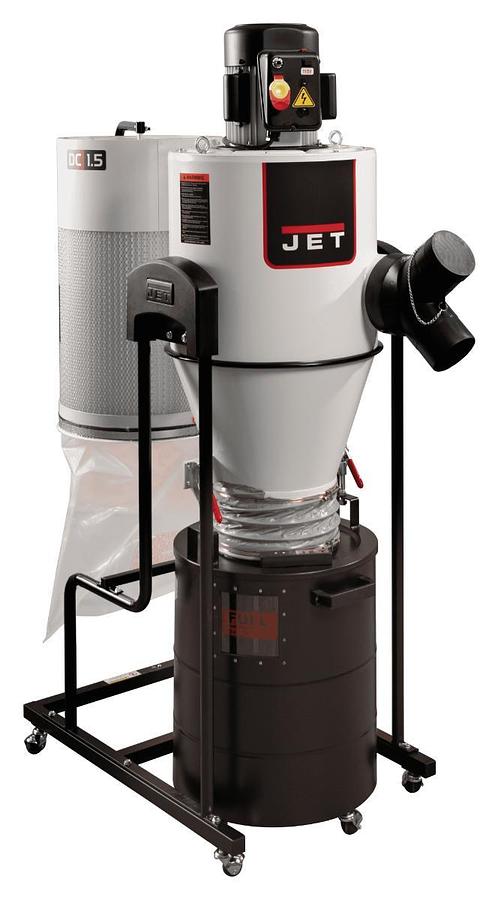

JCDC-1.5 Cyclone Dust Collector, 1.5HP, 115V

or
Call (954)444-4004

Description

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET® delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET® Cyclone Dust Collector and experience The Power of Efficiency.


  • Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
  • Double paddle manual cleaning system quickly cleans the pleated filter
  • Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
  • Heavy debris is captured in 20 gallon drum with quick release levers and independent casters for quick emptying
  • Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
  • Included radio frequency remote control works from up to 50 feet away
  • Swivel casters make it easy to move the unit around the shop
  • Cyclone's two stage separation provides more working CFM than comparable horsepower single stage units

    • Show All

    Specifications

    ManufacturerJettools
    ModelJCDC-1.5
    ConditionNew
    Stock NumberJT9-717515
    1-Hose Connection Diameter (In.)6
    2-Hoses Connection Diameter (In.)4
    Canister Filter Length (In.)15-3/4
    Collection Drum Capacity (gal.)20
    Filter Efficiency (Micron)1
    Footprint (L x W/In.)47 x 22
    Impeller MaterialSteel
    Max. Static Pressure (Wc.)8.268
    MERV Value13
    Motor Amps14
    Motor Power (HP)1.5
    Motor Voltage (V.)115
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Sound Rating (Db.)75
    Static Pressure Loss (EU Method) (Wc.)2.677
    Static Pressure Loss (US Method) (Wc.)1.535
    Warranty5 Year
    Gross Weight175.0
    Net weight132.0
