JWL-1840EVS 18" x 40" Wood Lathe
Description

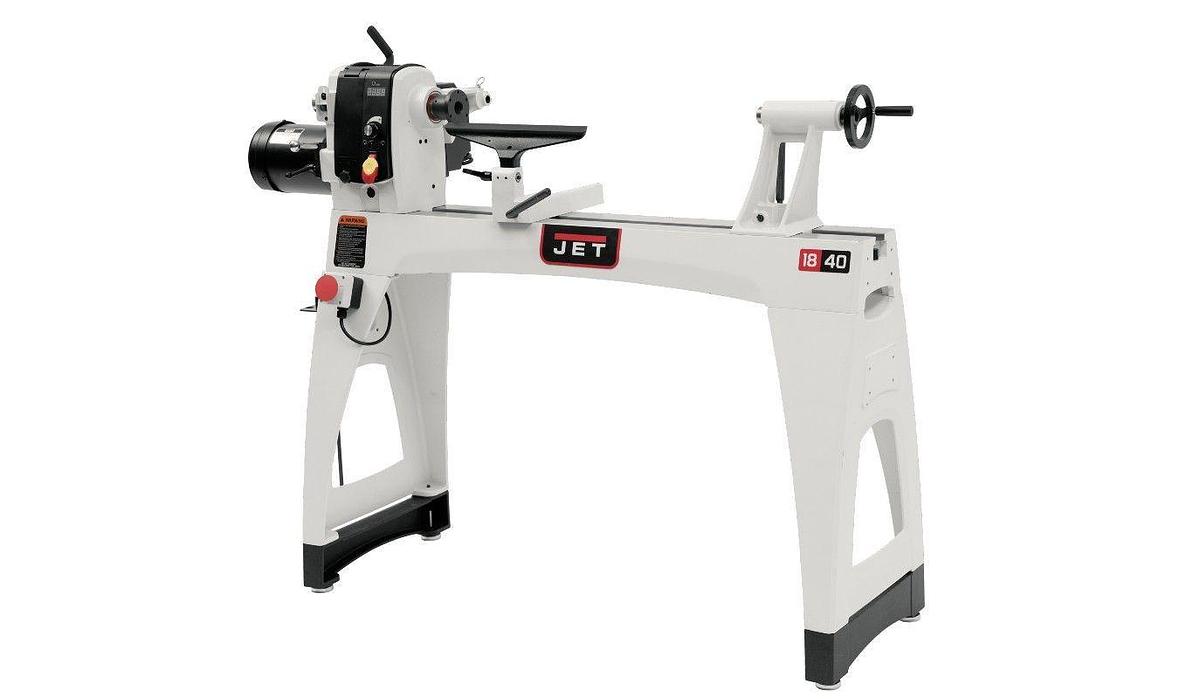

Introducing the 1840EVS woodworking lathe from JET. Designed to be as versatile as you are in the shop this lathe features a headstock that slides the full length of the bed. The included four-inch cast iron risers allow you to easily choose the working height that maximizes your comfort. The tailstock features Acme threads for smooth and durable
movement, and an improved quill locking mechanism that incorporates an anti-rotation key. This lathe features electronic infinitely variable speed from 40 to 3200 RPM.
Specifications
| Manufacturer | Jettools |
| Model | JWL-1840EVS |
| Condition | New |
| Stock Number | JT9-719600 |
| Bed Construction | Cast Iron |
| Motor Amps | 5 |
| Motor (HP) | 2HP, 230V,3ph |
| Motor Phase | 3 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 |
| Number of Indexing Positions | 36 |
| Overall Dimensions (L x W x H) (In.) | 73 X 53-1/2 X 20 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Shipping Dimensions (L x W x H) (In.) | 57 x 31 x 28 |
| Spindle Bore (In.) | 5/8 |
| Spindle Speeds | 40-3200 |
| Swing Over Bed (In.) | 18-1/2 |
| Warranty | 5 Year |
| Wiring Remarks | 230v, 1ph input only |
| Gross Weight | 484.0 |
| Net weight | 414.0 |
