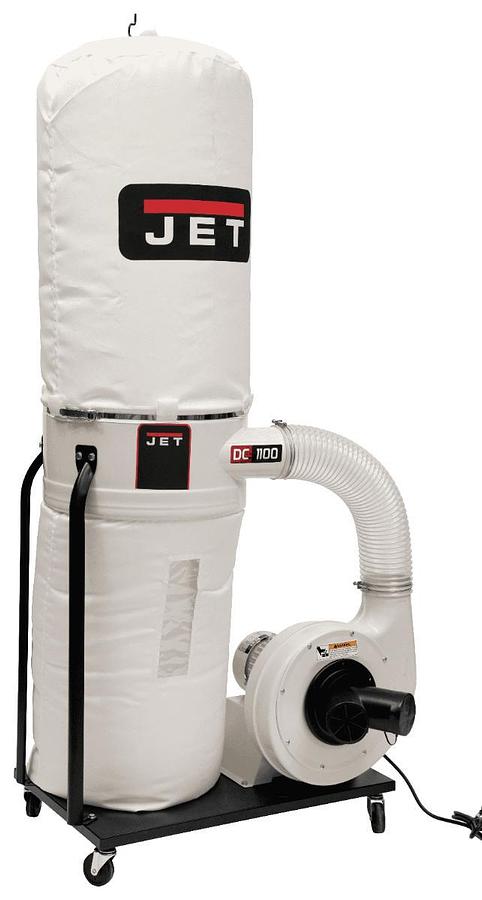

DC-1100VX-BK Dust Collector, 1.5HP 1PH 115/230V, 30-Micron Bag Filter Kit

or
Call (954)444-4004

Description

The JET® DC-1100VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have an elastic band for fast installation and removal. Swivel casters offer maneuverability within the shop. Visit http://www.vortexcone.com for more information.


  • Eliminates premature filter clogging for sustained performance
  • High air velocity (CFM) design stands up to any competitive specifications
  • Industrial controls designed for years of trouble-free use
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • Single-stage design for economical and quiet operation
  • Vortex Cone improves chip separation and collector bag packing efficiency

    • Show All

    Specifications

    ManufacturerJettools
    ModelDC-1100VX-BK
    ConditionNew
    Stock NumberJT9-708657K
    1-Hose Connection Diameter (In.)6
    2-Hoses Connection Diameter (In.)4
    Air Flow @ 4" (CFM)1100
    Bag Diameter (In.)20
    Collection Bag Capacity (Cu. Ft.)5-3/10
    Collection Bag Length (In.)30
    Efficiency (Micron)30
    Impeller MaterialSteel
    Motor Amps11/5.5
    Motor Power (HP)1-1/2
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Sound Rating (Db.)70 - 80
    Static Pressure (Wc.)10-1/2
    Style (Type)Bag
    Warranty5 Year
    Gross Weight139.0
    Net weight127.0
