90 Degree 1" Round Tube Die Set 3" CLR - (DS-90-1000T-R300)

or
Call (954)444-4004

Description

  • 1" round tube
  • 3" centerline radius
  • 90° die set
  • For RDB-050

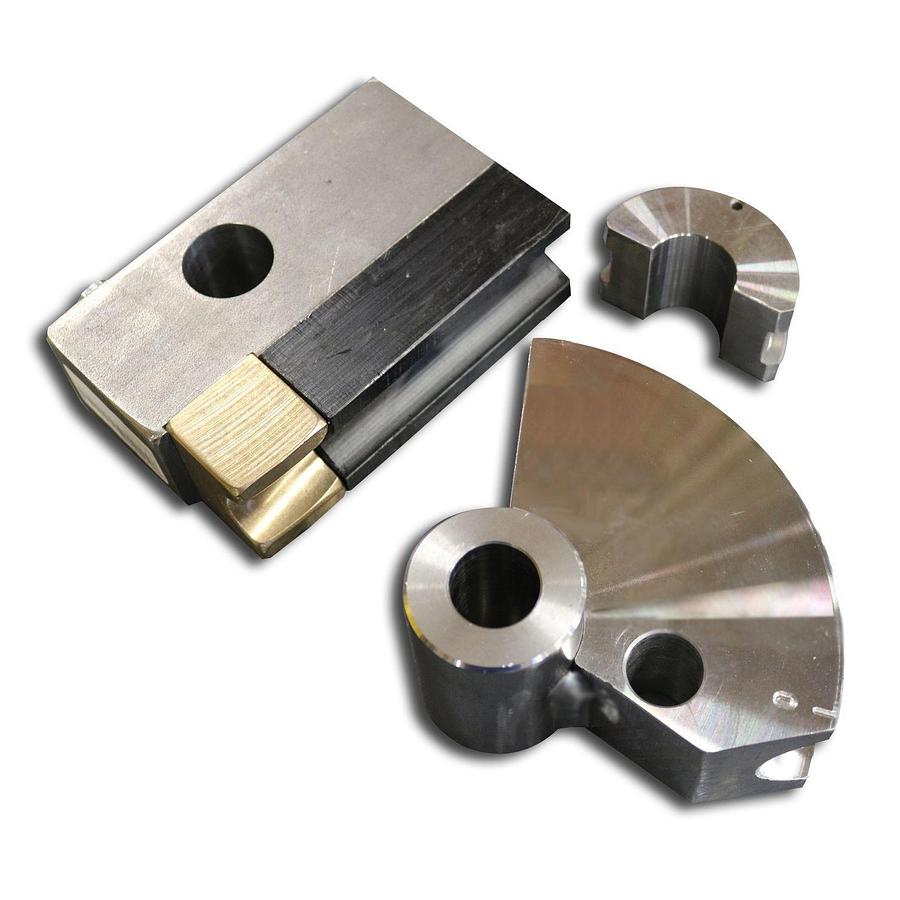

    • This is a complete die set, including forming die, counter die, and hook sleeve for 1" Round tube die set with a 3 Inch Center line Radius for making 90 dergree bends on the RDB-050 only. Center line radius is based on .063 wall thickness.


  • Compatible with RDB-050 only
  • Allows for 90 degree bends only
  • 1018 billet steel forming die
  • Replaceable / Consumable counter die inserts for counter die block
  • Nonproprietary spindle bore

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelDS-90-1000T-R300
    ConditionNew
    Stock NumberBA9-DS1000TR30090
    Center Line Radius3"
    Max Bend (Degrees)90.0000
    Prop 65Cancer and Reproductive Harm
    Recommended Wall Thickness0.063
    WarrantyNo value
    Gross Weight17.46
    Net weight17.46
    Material Dimension (In.)1"
