58-Pc Master CNC Router Bit Collection (BICNC-AMS-CNC-58)

Baileigh Industrial has partnered with Amana Tool to create the perfect starter kits for our industrial CNC Router tables. We have the tool you need for every CNC application! Whether you’re creating signs building cabinets or surfacing large areas we have created a versatile mix of router bits to complete your project. Each router bit is manufactured from Amana’s exclusive grade carbide according to stringent quality standards.58 pieces of the most versatile CNC industrial quality high performance solid carbide carbide tipped and solid carbide insert router bits. Router bits feature superior cutting edges mirror like finish (on some of the tools) balancing carbide of different grades for different materials/applications and excellent tool design to allow for repeat sharpening.
Designed for cutting:
*Aluminum Brass Bronze CopperGold Silver & Titanium
*Aluminum Composite Material (ACM)
*Aluminum FoamCore
*Composite
*Corrugated Polyproplene
*Fiberglass
*Fiberglass PCB Board
*FoamCore
*Gatorfoam®
*Graphite
*Melamine
*MDF/HDF
*Laminate
*Phenolic Composites
*Plastic Acrylic & Plexiglas®
*Sign Foam Sign Board & HDU
*Solid Surface
*Steel and Stainless Steel
*Veneered Plywood
*Wood
*Xanita® Lightboard™ and X-Board™

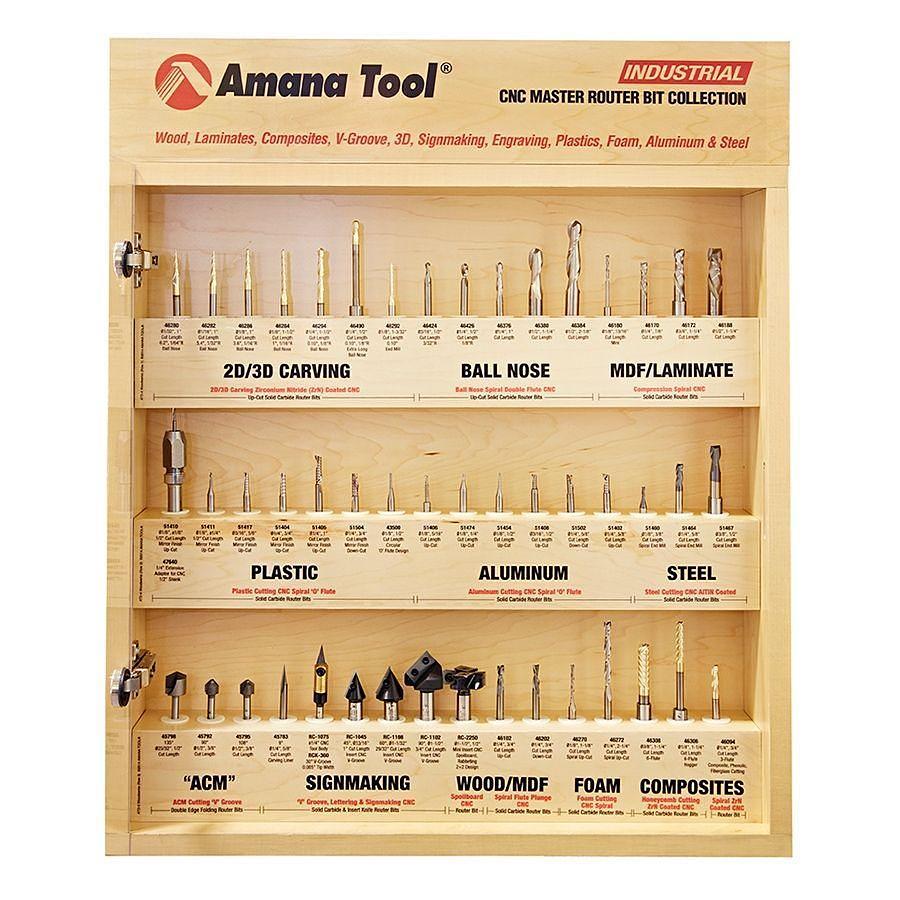

Stored in a freestanding or wall mounted wood display with locking clear acrylic door.

Bits included in kit

46280
CNC 2D and 3D Carving 6.2° Tapered Angle Ball Tip x 1/32" Dia x 1/64" Radius x 1" Cut Height x 1/4" Shank x 3" Long x 3 Flute Solid Carbide ZrN Coated Router Bit
46282
CNC 2D and 3D Carving 5.4° Tapered Angle Ball Tip x 1/16" Dia x 1/32" Radius x 1" Cut Height x 1/4" Shank x 3" Long x 4 Flute Solid Carbide ZrN Coated Router Bit
46286
CNC 2D and 3D Carving 3.6° Tapered Angle Ball Tip x 1/8" Dia x 1/16" Radius x 1-1/4" Cut Height x 1/4" Shank x 3" Long x 3 Flute Solid Carbide ZrN Coated Router Bit
46284
CNC 2D and 3D Carving 1° Tapered Angle Ball Tip x 1/8" Dia x 1/16" Radius x 1-1/2" Cut Height x 1/4" Shank x 3" Long x 3 Flute Solid Carbide ZrN Coated Router Bit
46292
CNC 2D and 3D Carving Flat Bottom x 1/8" Dia x 1-3/32" Cut Height x 1/4" Shank x 2-1/2" Long x 4 Flute Solid Carbide ZrN Coated Router Bit
46294
CNC 2D and 3D Carving 0.10° Tapered Angle Ball Tip x 1/4" Dia x 1/8" Radius x 1-1/2" Cut Height x 1/4" Shank x 3" Long x 2 Flute Solid Carbide ZrN Coated Router Bit
46490
Extra Long CNC 2D and 3D Carving 0.10° Tapered Angle Ball Tip x 1/4" Dia x 1/8" Radius x 1/2" Cut Height x 1/4" Shank x 4" Long x 3 Flute Solid Carbide ZrN Coated Router Bit
RB-116
Router Shank Reduction Bushing 1/2" Overall Dia x 1/4" Inner Dia x 1" Length
Ball Nose

46424
Solid Carbide Up-Cut Spiral Ball Nose 3/32" Radius x 3/16" Dia x 1/2" Cut Height x 1/4" Shank x 2-1/2" Long x 2 Flute Router Bit
46426
Solid Carbide Up-Cut Spiral Ball Nose 1/8" Radius x 1/4" Dia x 1/2" Cut Height x 1/4" Shank x 2-1/2" Long x 2 Flute Router Bit
46376
Solid Carbide Up-Cut Ball Nose Spiral 1/4" Dia x 1" Cut Height x 1/4" Shank
46380
Solid Carbide Up-Cut Ball Nose Spiral 1/2" Dia x 1-1/4" Cut Height x 1/2" Shank
46384
Solid Carbide Up-Cut Ball Nose Spiral 1/2" Dia x 2-1/8" Cut Height x 1/2" Shank
MDF/Laminate
46180
CNC Solid Carbide Compression Spiral 1/8" Dia x 13/16" Cut Height x 1/8" Shank
RB-102
Router Shank Reduction Bushing 1/4" Overall Dia x 1/8" Inner Dia x 1" Length
46170
CNC Solid Carbide Compression Spiral 1/4" Dia x 7/8" Cut Height x 1/4" Shank
46172
CNC Solid Carbide Compression Spiral 3/8" Dia x 1" Cut Height x 1/2 " Shank
RB-122
Router Shank Reduction Bushing 1/2" Overall Dia x 3/8" Inner Dia x 1" Length
46188
CNC Solid Carbide Compression Spiral 1/2" Dia x 1-1/4" Cut Height x 1/2" Shank
Plastic 'O' Flute
51410
Solid Carbide Spiral 'O' Flute, Plastic Cutting 1/8" Dia x 1/2"Cut Height x 1/8" Shank Up-Cut Design
RB-102
Router Shank Reduction Bushing 1/4" Overall Dia x 1/8" Inner Dia x 1" Length
51402
Solid Carbide Spiral 'O' Flute, Aluminum Cutting 1/4" Dia x 5/8" Cut Height x 1/4" Shank Up-Cut
47640
1/4 Extension Adapter for CNC 1/2" Shank
51411
Solid Carbide Spiral 'O' Flute, Plastic Cutting 1/8" Dia x 1/2" Cut Height x 1/4" Shank Up-Cut
51417
Solid Carbide Spiral 'O' Single Flute, Plastic Cutting 3/16" Dia x 5/8" Cut Height x 1/4 Shank x 2" Long Up-Cut Router Bit
51404
Solid Carbide Spiral 'O' Flute, Plastic Cutting 1/4" Dia x 3/4" Cut Height x 1/4" Shank Up-Cut
Aluminum 'O' Flute
51406
Solid Carbide Spiral 'O' Flute, Aluminum Cutting 1/8" Dia x 5/16" Cut Height x 1/8" Shank Up-Cut
RB-102
Router Shank Reduction Bushing 1/4" Overall Dia x 1/8" Inner Dia x 1" Length
51474
Solid Sub Micrograin Carbide Spiral 'O' Single Flute, Aluminum Cutting 1/8" Dia x 1/4" Cut Height x 1/4" Shank x 2 Long Up-Cut Router Bit
51454
Solid Sub Micrograin Carbide Spiral 'O' Single Flute, Aluminum Cutting 1/8" Dia x 1/2" Cut Height x 1/4" Shank x 2" Long Up-Cut Router Bit
51408
Solid Carbide Spiral 'O' Flute, Aluminum Cutting 3/16" Dia x 1/2" Cut Height x 1/4" Shank Up-Cut
51502
Solid Carbide Spiral 'O' Flute, Aluminum Cutting 1/4" Dia x 5/8" Cut Height x 1/4" Shank Down-Cut
51402
Solid Carbide Spiral 'O' Flute, Aluminum Cutting 1/4" Dia x 5/8" Cut Height x 1/4" Shank Up-Cut
Steel Cutting Aluminum Titanium Nitride (AlTiN) Coated
51460
Solid Carbide Spiral for Steel, Stainless Steel & Ferrous Metal with AlTiN (Aluminum Titanium Nitride) Coating 3-Flute x 1/8" Dia x 3/8" Cut Height x 1/4" Shank x 1-1/2" Long Up-Cut Router Bit/End Mill
51464
Solid Carbide Spiral for Steel, Stainless Steel & Ferrous Metal with AlTiN (Aluminum Titanium Nitride) Coating 3-Flute x 1/4" Dia x 5/8" Cut Height x 1/4" Shank x 2-3/8" Long Up-Cut Router Bit/End Mill
51467
Solid Carbide Spiral for Steel, Stainless Steel & Ferrous Metal with AlTiN (Aluminum Titanium Nitride) Coating 2-Flute x 3/8" Dia x 1/2" Cut Height x 3/8" Shank x 3" Long Up-Cut Router Bit/End Mill
RB-122
Router Shank Reduction Bushing 1/2" Overall Dia x 3/8" Inner Dia x 1" Length
Aluminum Composite Material (ACM)
45798
Carbide Tipped Double Edge Folding V Groove 22.5° x 23/32" Dia x 1/4" Shank
45792
Carbide Tipped Double Edge Folding V Groove 45° x 0.090" Tip Width x 1/2" Dia x 3/8" Cut Height x 1/4" Shank
45795
Solid Carbide Foam Cutting Up-Cut Spiral 1/8" Dia x 1-1/8" Cut Height x 1/4" Shank x 2-1/2" Long Router Bit
Signmaking

45783
Solid Carbide Carving Liner 18° x 1/4" Dia x 5/8" Cut Height x 1/4" Shank x Single Flute
RC-1075
CNC In-Groove Insert Engraving Tool Body 1/4" Shank
RCK-360
Solid Carbide Insert 30° x 0.005" V Tip Width Engraving Knife for In-Groove System
RC-1045
Insert V-Groove 45° x 7/8 Cut Height x 1/2 Shank CNC
RC-1108
Insert V-Groove 60° x 29/32 Cut Height x 1/2 Shank CNC
RC-1102
Insert V-Groove 90° x 3/4 Cut Height x 1/2 Shank CNC
Wood/MDF

RC-2250
CNC Insert Mini Spoilboard Surfacing & Rabbeting Flycutter 2+2 Flute Design 1-1/2" Dia x 1/2" Cut Height x 1/2" Shank
46102
Solid Carbide Spiral Plunge 1/4" Dia x 3/4" Cut Height x 1/4" Shank Up-Cut
46202
Solid Carbide Spiral Plunge 1/4" Dia x 3/4"Cut Height x 1/4" Shank Down-Cut
Foam

46270
Solid Carbide Foam Cutting Up-Cut Spiral 1/8" Dia x 1-1/8" Cut Height x 1/4" Shank x 2-1/2" Long Router Bit
46272
Solid Carbide Foam Up-Cut Cutting Spiral 1/4" Dia x 2-1/4" Cut Height x 1/4" Shank x 2-1/2" Long Router Bit
Composites, ZrN Coated
46308
Solid Carbide ZrN Coated Honeycomb Cardboard Cutting 3/8" Dia x 1-1/4" Cut Height x 3/8" Shank x 3" Long, 6-Flute Router Bit
RB-122
Router Shank Reduction Bushing 1/2" Overall Dia x 3/8" Inner Dia x 1" Length
46306
Solid Carbide ZrN Coated Honeycomb Hogger 1/4" Dia x 1-1/4" Cut Height x 1/4" Shank x 4" Long, 6-Flute CNC
RB-116
Router Shank Reduction Bushing 1/2" Overall Dia x 1/4" Inner Dia x 1" Length
46094
Solid Carbide Spiral 1/4 Dia x 3/4" Cut Height x 1/4" Shank x 2-1/2" Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Up-Cut Router Bit

For more information contact a Baileigh Represetative at 920-657-5360
