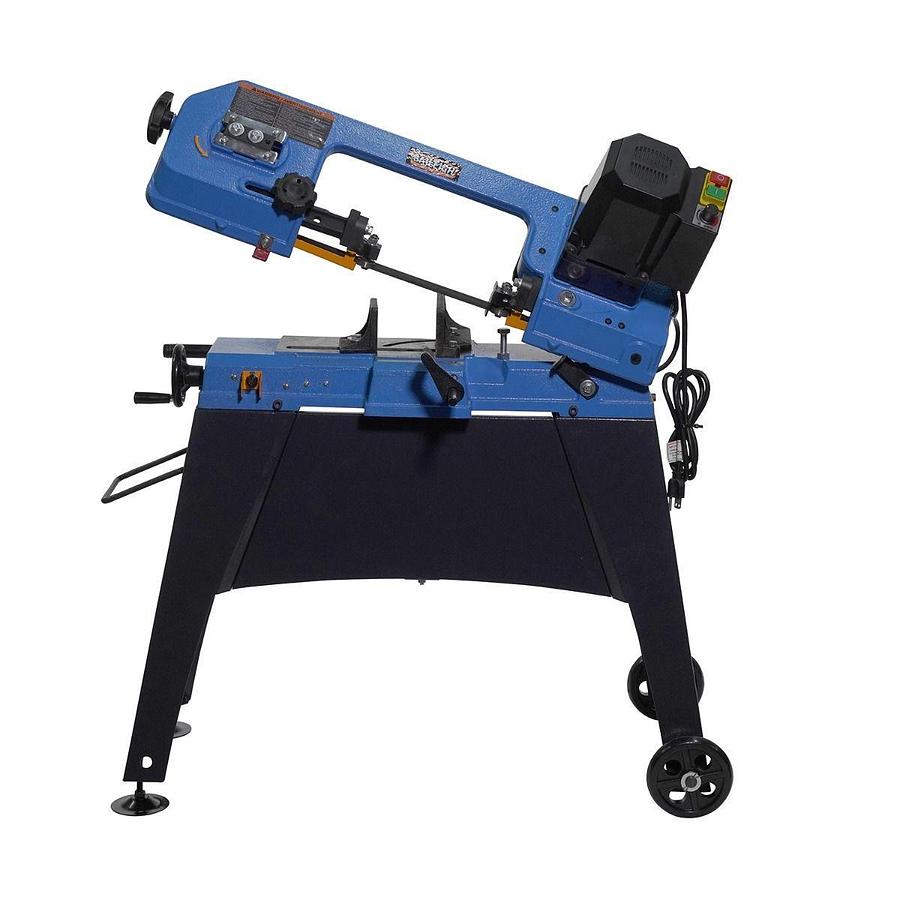

BHVBS-56V - 5" x 6" Variable Speed Horizontal/Vertical Bandsaw

or
Call (954)444-4004

Description

Baileigh Industrial’s line of metal cutting band saws range from small benchtop models all the way up to massive automatic saws for high production. All were designed and built to exacting quality standards, include innovative features and use industrial grade components to provide years of productivity in any shop.
The BS-56VS-VH variable speed horizontal/vertical bandsaw fits perfectly into that philosophy with features typically found on only larger more expensive saws. Its versatility allows it to not only meet the demands of any small to medium fabrication shop, but is the perfect “odd job” saw for large shops as well. See below for a list of features that set the BS-56VS-VH apart from its competition. configuration. Changing speeds is as easy as the turn of a knob and you can expect constant torque thanks to its DC motor with 3-step gear transmission. The robust stand with wheels provides a stable and sturdy base for moving around your shop with ease. This saw is CSA approved.


  • This portable metal bandsaw is ideal for home shops and hobbyists
  • Cuts up to 5” round stock at 90° and up to 6” rectangle
  • Variable Speed allows for the adjustment of blade speed "on the fly" while cutting providing access to a wider range of materials
  • Easily converts from Horizontal to Vertical configuration providing maximum cutting flexibility
  • DC brushless motor with 3-step gear transmission produces constant torque for smooth cutting
  • Quick locking vise is easy to adjust to clamp various material sizes
  • Robust stand with wheels provides a stable and sturdy base allowing easy movement around your shop
  • Automatic shut off stops the sawing process once a cut is completed
  • Adjustable material stop allows accurate, repeat cutting
  • Heavy-duty, casted head provides years of sawing

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBHVBS-56V
    ConditionNew
    Stock NumberBA1-162
    Amperage Draw @ 115V 1Ph3.5
    Bed Height (In.)25
    Blade Speed (SFPM)Variable 80-230
    Blade Speeds (SFPM)Variable 80-230
    Blade Wheel Diameter (In.)7-3/8
    Motor (HP)1/2 HP
    Overall Dimensions (L x W x H) (In.)24 x 17 x 49
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)4-1/2 x 3
    Rectangle at 90 Degrees (In.)5 x 5-3/4 and 2 x 6
    Round at 45 Degrees (In.)3
    Round at 90 Degrees (In.)5
    Shipping Weight (Lbs.)150
    Throat Depth (In.)5
    Vise Swivels (Deg.)45°
    Warranty1 Year
    Gross Weight121.0
    Net weight115.0
    Blade Size (In.)1/2 x 0.025 x 65
