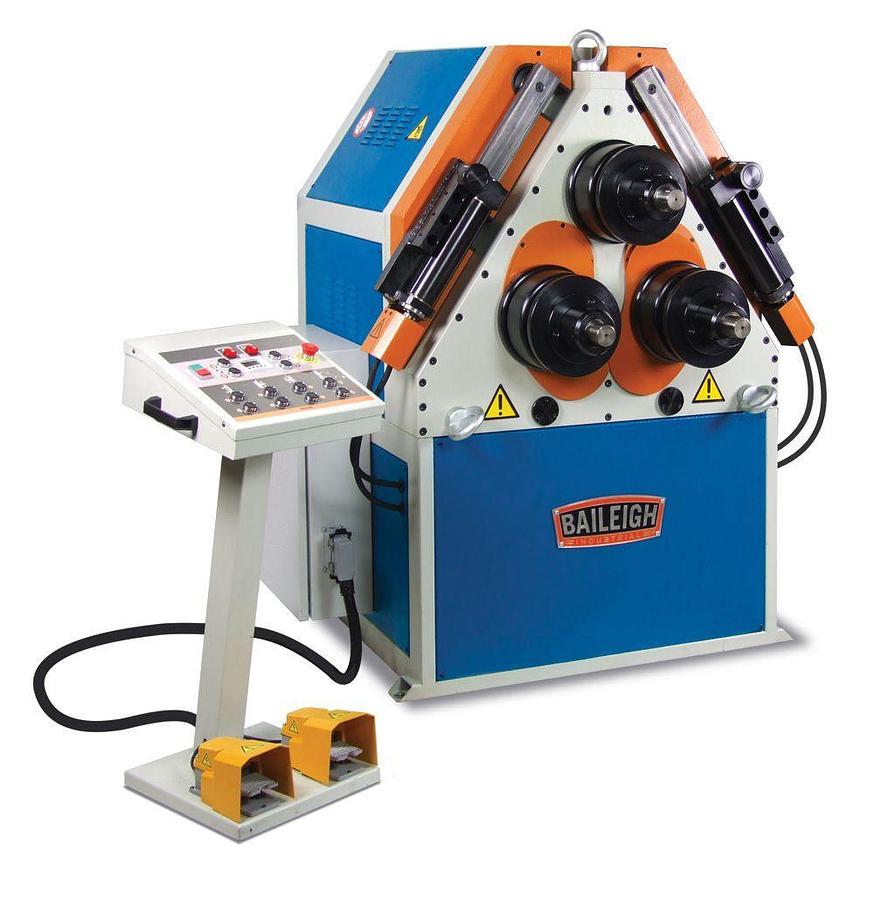

Hydraulic Roll Bender R-H85

Losing too much money on scrap metal? Hone your shop’s efficiency and reduce waste with this fast and accurate double-pinch ring roller.
*Runs on 220-volt 3-phase power.
*Bends up to 4" round tube, 3” schedule 40 pipe, and 3.375” x 3.375” x .25” angle iron.
*3 rolls driven by industrial-grade hydraulic transmission.
*Double-pinch design consists of 1 fixed top roll plus 2 bottom rolls moved by independent hydraulic cylinders.
*Hydraulic encoders communicate exact roll positioning to integrated digital readout programmers, making repeatability a cinch.
*You can control all machine movement of the machine from the podium-mounted operator panel with attached foot pedal.
*Hydraulic lateral guide rolls prevent the material from twisting and correct bend angles.
*We bolt and weld the heavy steel plate frame for structural strength so that it won’t flex even at full capacity.
*Baileigh covers this tubing roller with a 1-year parts warranty and lifetime technical support by phone.
Why choose the Hydraulic Roll Bender R-H85 over similar machines?
*Cut out those costly straight segments at the start and finish of bends with our double-pinch system, allowing you to pre- and post-bend the material.
*You won’t find many roll benders on the market that can match the robust steel construction of the R-H85.
*No more worrying about checking angles for repeat parts during production runs, thanks to the machine’s programmable stop.
*If you ever run into a problem with the R-H85 or want some advice on a project, you can call Baileigh’s team of knowledgeable reps anytime.
