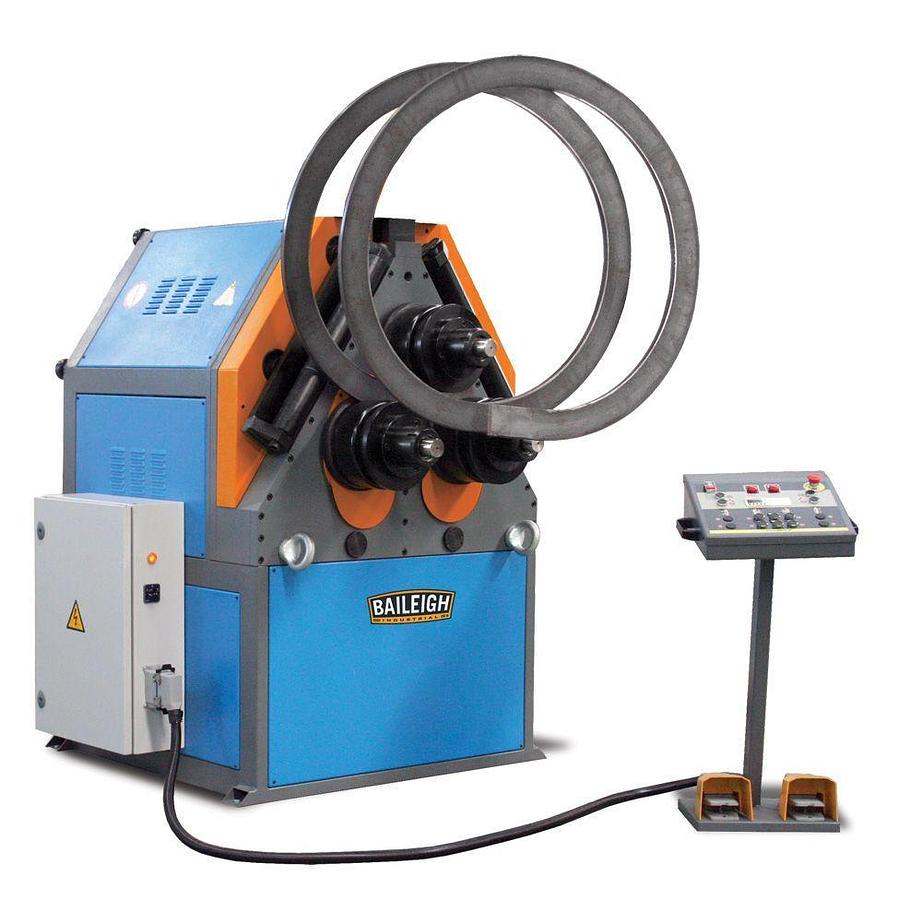

Double Pinch Roll Bender - (R-H85E)

or
Call (954)444-4004

Description

  • 220V 3-phase hydraulic roll bender.
  • 3 " schedule 40 pipe maximum capacity.
  • 3 rolls: 1 fixed top roll 2 hydraulic bottom rolls.
  • Includes a set of segmented rolls.

    • This Hydraulic Double-Pinch Ring Roller Double-Pinch Roll Bender reduces material waste and cuts down on bend time.
    Why choose the R-H85E over similar machines?
    *Double-pinch rolls let you pre- and post-bend, minimizing those money-wasting pieces of straight material left over at the start and finish.
    *Few roll benders can match the tough steel plate construction of the R-H85, which minimizes flex and maintains accuracy.
    *Overload-protected inverter drive extends machine’s working lifetime.
    *You can perform all machine functions at once from the well-organized control panel.
    *Choose from many optional tooling sets to suit specific applications, kept in stock for quick shipment.
    *Troubleshooting and project advice from Baileigh’s knowledgeable team is always just a phone call away, as long as you’re using the R-H85E.

  • Baileigh ring roller runs on 220-volts 3-phase power
  • Bends up to 3” schedule 40 pipe and 3.375” x 3.375” x .25" angle iron
  • All 3 rolls, 1 fixed top roll and 2 bottom rolls, driven by industrial-grade hydraulic transmission with independent hydraulic cylinders
  • Digital readout programmers let you monitor the exact encoder-specified positions of each roll
  • You can easily input programmable stops or adjust roll positions from the movable podium control
  • Convenient foot pedals, located at podium base, stop, and start roll bender in reverse and forward modes
  • Manually adjustable lateral angle guides help bend material to a wide range of coil widths
  • To accommodate longer pieces of material, you can safely tip the machine onto its back in horizontal mode
  • Includes a set of hardened segmented rolls that can handle diverse profiles
  • Fully welded steel plate framework gives this hydraulic roll bender the strength to bend at full capacity, day in, day out, for years, and deliver accurate results

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelR-H85E
    ConditionNew
    Stock NumberBA9-1009407
    Prop 65Cancer and Reproductive Harm
    Style (Type)Double Pinch Roll Bender
    Warranty1 Year
    Gross Weight3550.0
    Net weight3550.0
