Description

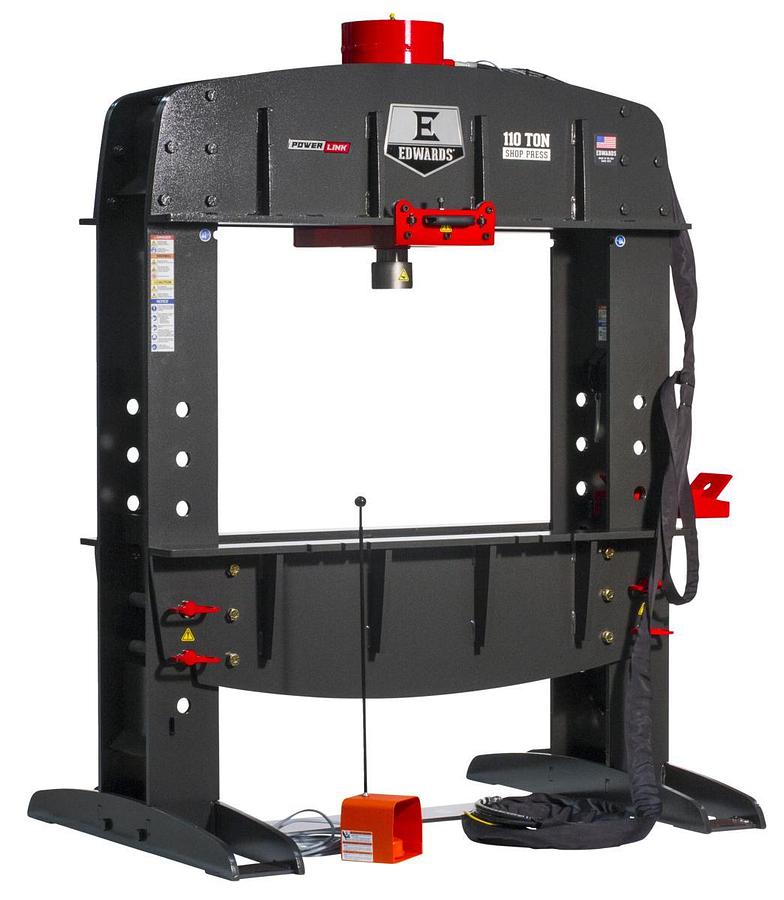

110 Ton Shop Press and Portable Power Unit 230V, 3Ph

Our most powerful Shop Press, the 110 Ton offers the greatest capacity for the widest variety of projects. Able to accept all of our standard tooling along with custom tooling in its large work table area, the 110 Ton can press bearings, bend metal or straighten your parts. The rolling cylinder, open-sided design, pressure gauge, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP. Also available with Programmable Logic Control (PLC).


  • 20' quick-connect hoses for simple "plug & play" operation
  • Accepts a variety of standard and custom tooling
  • Electric foot pedal with integrated jog control
  • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • Open-sided design allows longer material to pass through the frame
  • Pressure gauge provides accurate measurements allowing for easy repeatable parts production
  • Rolling cylinder provides maximum adaptability

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT9020
    ConditionNew
    Stock NumberED9-HAT9020
    Minimum Ram Speed (In./Sec).186
    Minimum Return Speed (In./Sec).220
    Product Dimensions (In.)48 x 64 x 88
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)110
    Steel Frame Thickness (In.)3/4
    Stroke (In.)12-1/4
    Warranty1 Year
    Work Table (In.)37-7/16 x 48
    Gross Weight2600.0
    Net weight2600.0
