60 Ton Shop Press

or
Call (954)444-4004

Description

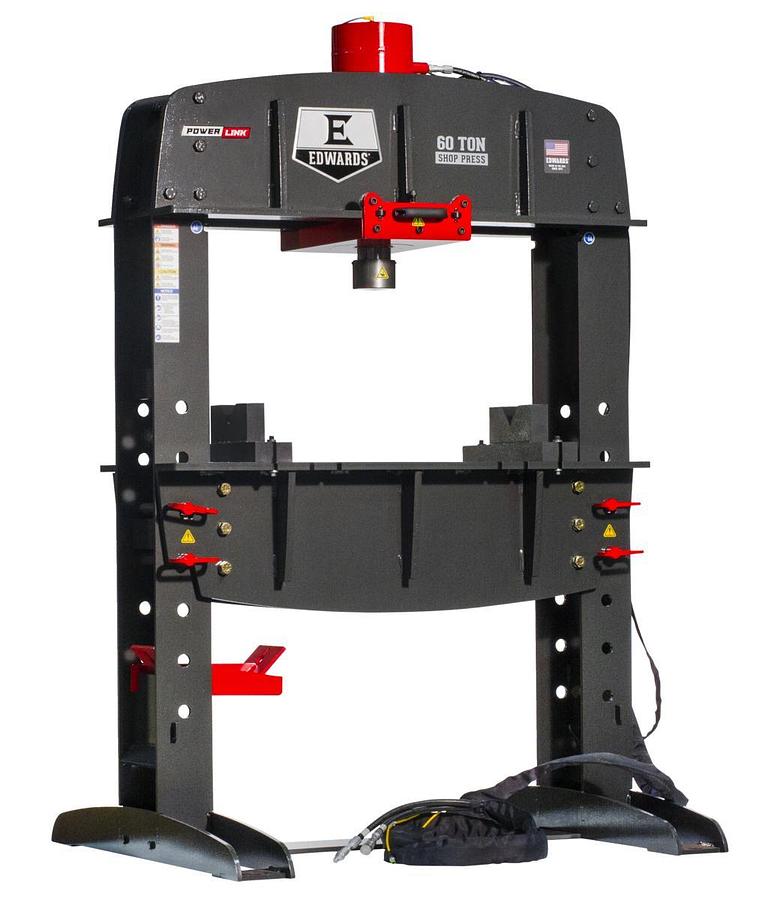

60 Ton Shop Press

Powerful and flexible, the 60 Ton Shop Press can easily improve your productivity. With a large work table area, this Shop Press accepts both standard and custom tooling to press bearings, bend metal or straighten a part. The rolling cylinder, open-sided design, pressure gauge, and electric foot pedal make this 60 ton press machine simple to use. Must be run off an Edwards Ironworker with PowerLink ™ System or Portable Power Unit. Also available with Programmable Logic Control (PLC).


  • 20' quick-connect hoses for simple "plug & play" operation
  • 60 ton press machine accepts a variety of standard and custom tooling
  • Electric foot pedal with integrated jog control
  • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • Open-sided design allows longer material to pass through the frame
  • Pressure gauge provides accurate measurements allowing for easy repeatable parts production
  • Rolling cylinder provides maximum adaptability

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT8000
    ConditionNew
    Stock NumberED9-HAT8000
    Minimum Ram Speed (In./Sec).330
    Minimum Return Speed (In./Sec).456
    Product Dimensions (In.)48 x 54 x 86
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)60
    Steel Frame Thickness (In.)1/2
    Stroke (In.)12-1/4
    Warranty1 Year
    Work Table (In.)39-1/4 x 42
    Gross Weight1900.0
    Net weight1900.0
