60 Ton Shop Press and Portable Power Unit 230V, 3Ph

or
Call (954)444-4004

Description

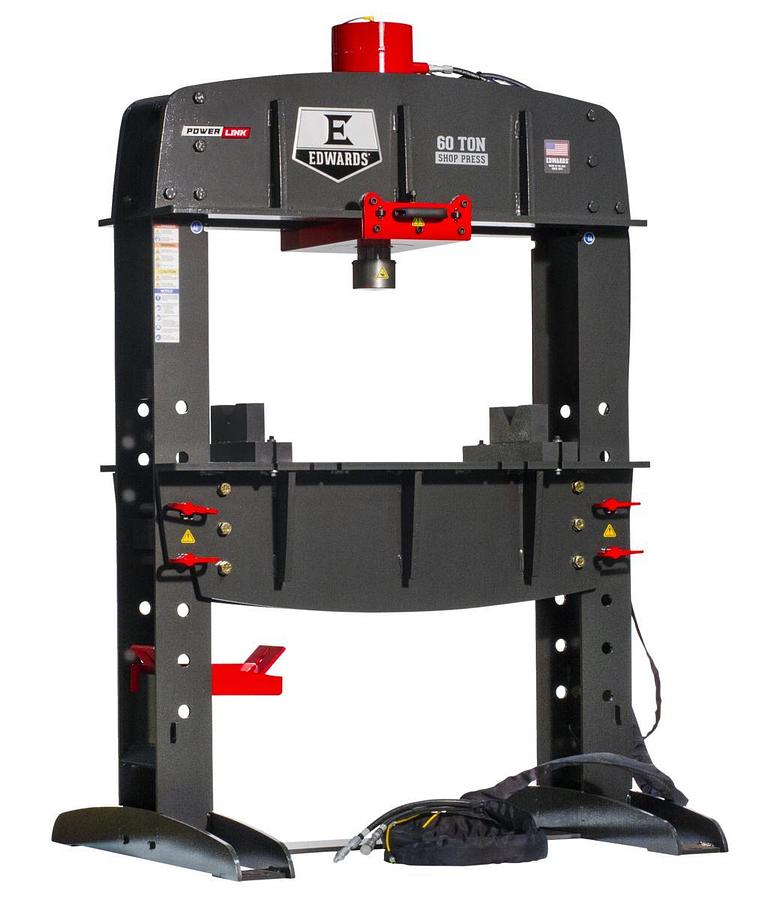

60 Ton Shop Press and Portable Power Unit 230V, 3Ph

Powerful and flexible, the 60 Ton Shop Press can easily improve your productivity. With a large work table area, this Shop Press accepts both standard and custom tooling to press bearings, bend metal or straighten a part. The rolling cylinder, open-sided design, pressure gauge, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP. Also available with Programmable Logic Control (PLC).


  • 20' quick-connect hoses for simple "plug & play" operation
  • Accepts a variety of standard and custom tooling
  • Electric foot pedal with integrated jog control
  • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • Open-sided design allows longer material to pass through the frame
  • Pressure gauge provides accurate measurements allowing for easy repeatable parts production
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
  • Rolling cylinder provides maximum adaptability

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT8020
    ConditionNew
    Stock NumberED9-HAT8020
    Minimum Ram Speed (In./Sec).330
    Minimum Return Speed (In./Sec).456
    Product Dimensions (In.)48 x 54 x 86
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)60
    Stroke (In.)12-1/4
    Warranty1 Year
    Work Table (In.)39-1/4 x 42
    Gross Weight2300.0
    Net weight2300.0
