60 Ton Shop Press with PLC and Portable Power Unit 460V, 3Ph

or
Call (954)444-4004

Description

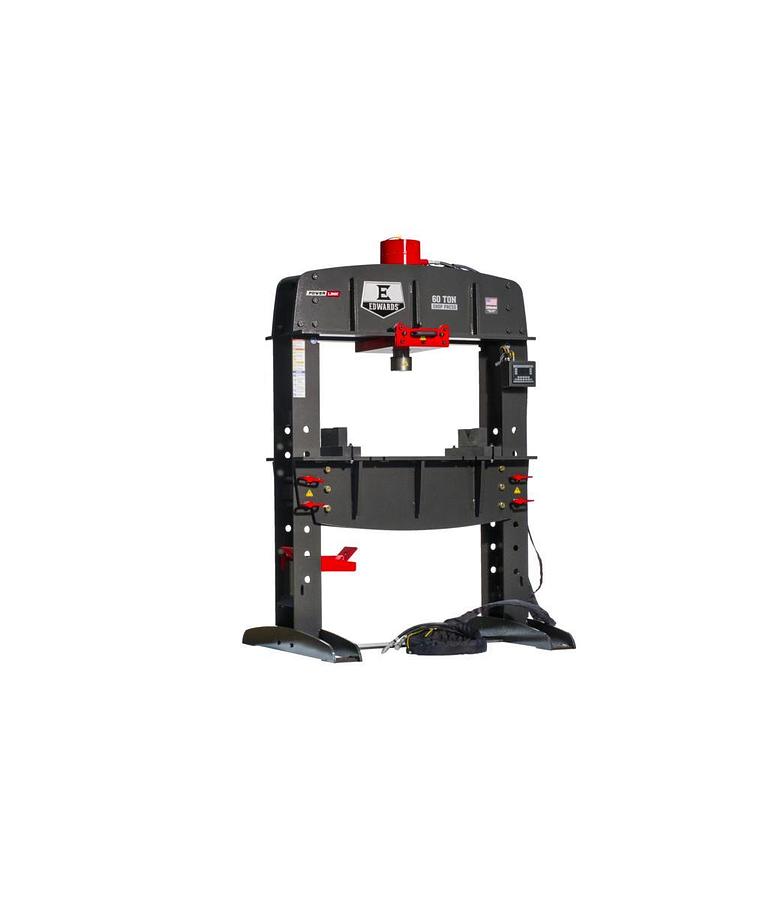

60 Ton Shop Press with PLC and Portable Power Unit 460V, 3Ph

This 60 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With a large work table area, this Shop Press accepts both standard and custom tooling to press bearings, bend metal or straighten a part. The rolling cylinder, open-sided design, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.


  • 20' quick-connect hoses for simple "plug & play" operation
  • Accepts a variety of standard and custom tooling
  • Electric foot pedal with integrated jog control
  • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • Magnetic PLC control box mounts anywhere on the shop press for user performance and comfort
  • Open-sided design allows longer material to pass through the frame
  • Programmable Logic Control (PLC) allows operators to create repeatable actions, improving efficiency
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
  • Rolling cylinder provides maximum adaptability

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT8080
    ConditionNew
    Stock NumberED9-HAT8080
    Minimum Ram Speed (In./Sec).330
    Minimum Return Speed (In./Sec).456
    Product Dimensions (In.)48 x 54 x 86
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)60
    Stroke (In.)12-1/4
    Warranty1 Year
    Work Table (In.)39-1/4 x 42
    Gross Weight2300.0
    Net weight2300.0
