Description

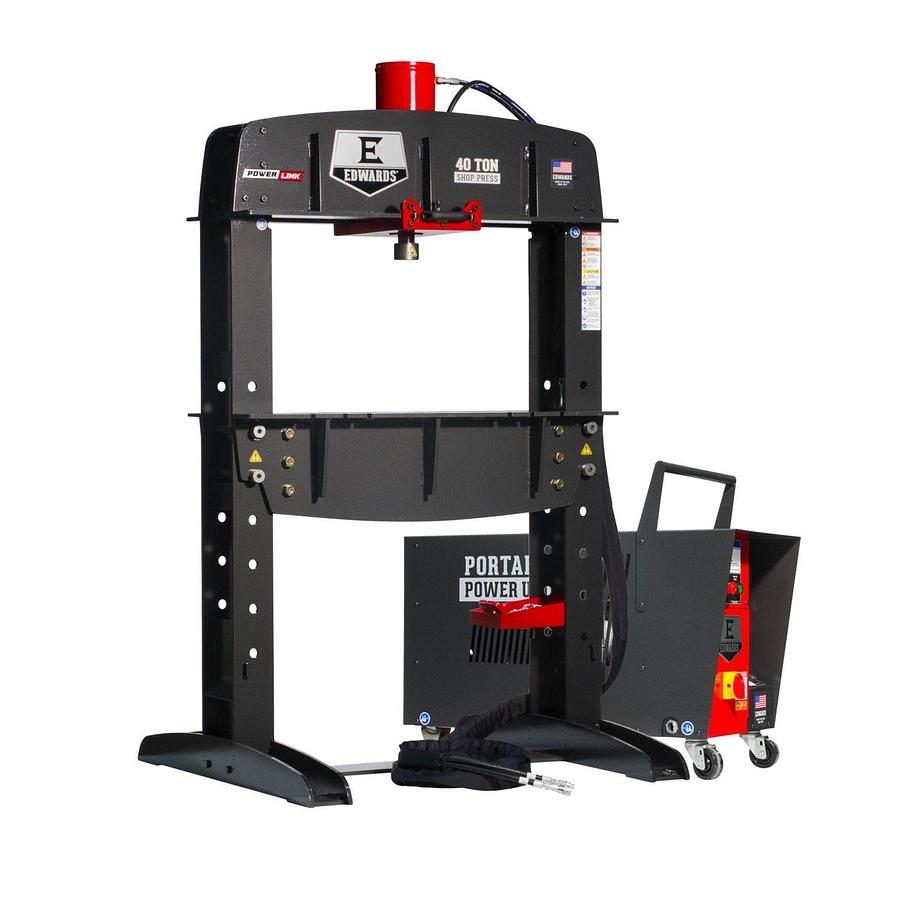

40 Ton Shop Press and Portable Power Unit 460V, 3Ph

The 40 Ton Hydraulic Shop Press is rugged and economical. With a rolling cylinder, pressure gauge, open-sided design, and hand/jog controls, it is an easy to use, powerful machine. Able to accept standard & custom tooling the smooth and precise pressure is perfect for any shop. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.


  • 20' quick-connect hoses for simple "plug & play" operation
  • Edwards Ironworkers' 40 ton hydraulic shop press accepts a variety of standard and custom tooling
  • Easy-to-use hand/jog controls with integrated E-Stop
  • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • Open-sided design allows longer material to pass through the frame
  • Pressure gauge provides accurate measurements allowing for easy repeatable parts production
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
  • Rolling cylinder provides maximum adaptability

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT4030
    ConditionNew
    Stock NumberED9-HAT4030
    Minimum Ram Speed (In./Sec).517
    Product Dimensions (In.)48 x 48 x 79
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)40
    Steel Frame Thickness (In.)1/2
    Stroke (In.)12-1/4
    Warranty1 Year
    Work Table (In.)38 x 40-1/2
    Gross Weight1830.0
    Net weight1793.0
