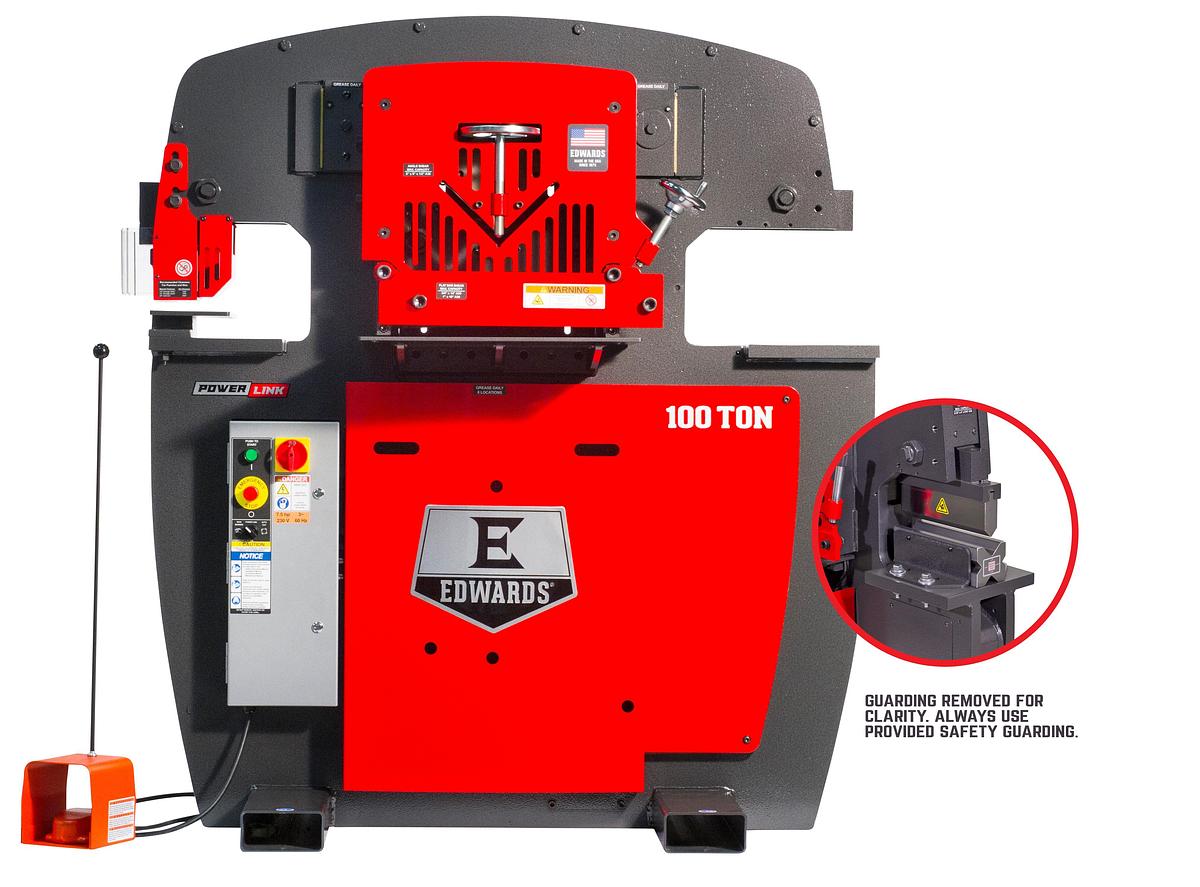

100 Ton Ironworker 208V, 1Ph, PowerLink, 10" Brake & 2 LED Lights
Description
This 100 Ton Ironworker provides optimal power & adaptability to handle any project with its 4 Workstations including a factory-stalled 10" Brake. Compatible with 12 interchangeable Attachments and 17 Accessories to adapt the Ironworker to your needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle. Ideal for larger fabrication shops or those jobs requiring heavier materials.
Specifications
| Manufacturer | Edwards |
| Model | 10203522 |
| Condition | New |
| Stock Number | ED9-10203522 |
| Flat Bar Shear Max Capacity 1" | 14 |
| Flat Bar Shear Max Round (In) | 1-1/4 |
| Flat Bar Shear Max Square (In) | 1-1/4 |
| Flat Bar Shear Work Height (In.) | 37 |
| Hydraulic Pump (GPM) | 10-1/2 |
| Motor Amps | 36 |
| Motor (HP) | 7.5HP |
| Motor Speed (RPM) | 1765 |
| Prop 65 | None |
| Punch Max Capacity (In.) | 1-1/16 dia in 1" A36" |
| Punch Open Height (In) | 8-3/4 |
| Punch Shut Height (In) | 6-15/16 |
| Punch Stroke (In.) | 1-13/16 |
| Punch Throat Depth (In.) | 11 |
| Punch Work Height (In.) | 39-1/16 |
| Rating (Tons) | 100 |
| Reservoir (Gal.) | 17 |
| Valve Pressure (PSI) | 3500 |
| Warranty | 1 Year |
| Gross Weight | 4704.0 |
| Net weight | 4704.0 |
