55 Ton Ironworker 3 Phase, 208 Volt, Coper Notcher
Description

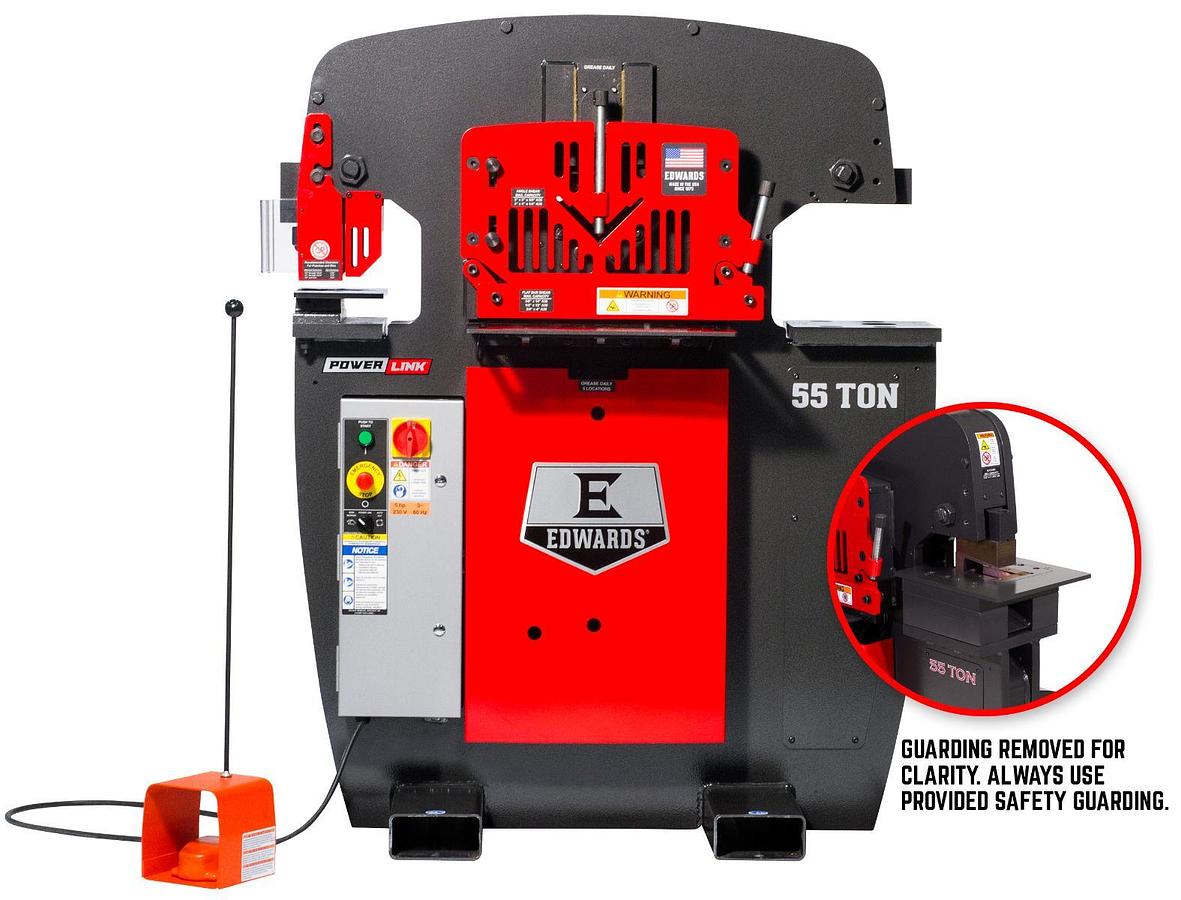

Edwards 55 Ton Ironworker with Coper Notcher with lighted workstations, 3 Ph, 208 Volt
This 55 Ton Ironworker includes a factory-installed coper notcher, provides power for large projects, and offers the ability to customize one of its four workstations with 11 interchangeable attachments, and 17 additional accessories to help improve operator accuracy and productivity. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. Great for general use from medium size shops to full factory maintenance departments, the compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine.
Specifications
| Manufacturer | Edwards |
| Model | 55203012 |
| Condition | New |
| Stock Number | ED9-55203012 |
| Amps | 14 |
| Angle Shear Max Capacity 1/2" | 4 x 4 |
| Angle Shear Max Capacity 3/8" | 3 x 3 |
| Flat Bar Shear Max Capacity 1" | 12 |
| Flat Bar Shear Max Capacity 3/4" | 14 |
| Flat Bar Shear Max Round Capacity (In.) | 7/8 |
| Flat Bar Shear Max Round (In) | 7/8 |
| Flat Bar Shear Max Square Capacity (In.) | 7/8 |
| Flat Bar Shear Max Square (In) | 7/8 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Hydraulics | 2500.0000 |
| Hydraulics (GPM) | 3-1/2 |
| Hydraulics (PSI) | 2500 |
| Motor Amps | 14 |
| Motor (HP) | 5HP, 230V, 3PH |
| Motor Speed (RPM) | 1725 |
| Open Station Open Height (In) | 8-1/8 |
| Open Station Shut Height (In) | 6-7/8 |
| Open Station Stroke (In) | 1-1/4 |
| Open Station Throat Depth (In) | 11-3/16 |
| Open Station Work Height (In) | 34-1/2 |
| Open Workstation Throat Depth (In.) | 11-3/16 |
| Open Workstation Work Height (In.) | 34-1/2 |
| Opt. Coper Notcher Max Capacity (In.) | 2-1/2 x 4 x 5/16 |
| Opt. Coper Notcher Work Height (In.) | 39-1/2 |
| Product Dimensions (In.) | 44-3/8 x 36-1/8 x 55-1/4 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 1-16 diam. In 5/8 mild steel |
| Punch Open Height (In) | 8-1/8 |
| Punch Rating (Tons) | 55 |
| Punch Shut Height (In) | 6-7/8 |
| Punch Stroke (In.) | 1-1/4 |
| Punch Throat Depth (In.) | 7-1/2 |
| Punch Work Height (In.) | 36-9/16 |
| Rating (Tons) | 55 |
| Reservoir (Gal.) | 7 |
| Shipping Dimensions (L x W x H) (In.) | 45 x 51 x 62 |
| Warranty | 1 Year |
| Gross Weight | 2480.0 |
| Net weight | 2430.0 |
