20 Ton Radius Roller

or
Call (954)444-4004

Description

Radius Roller

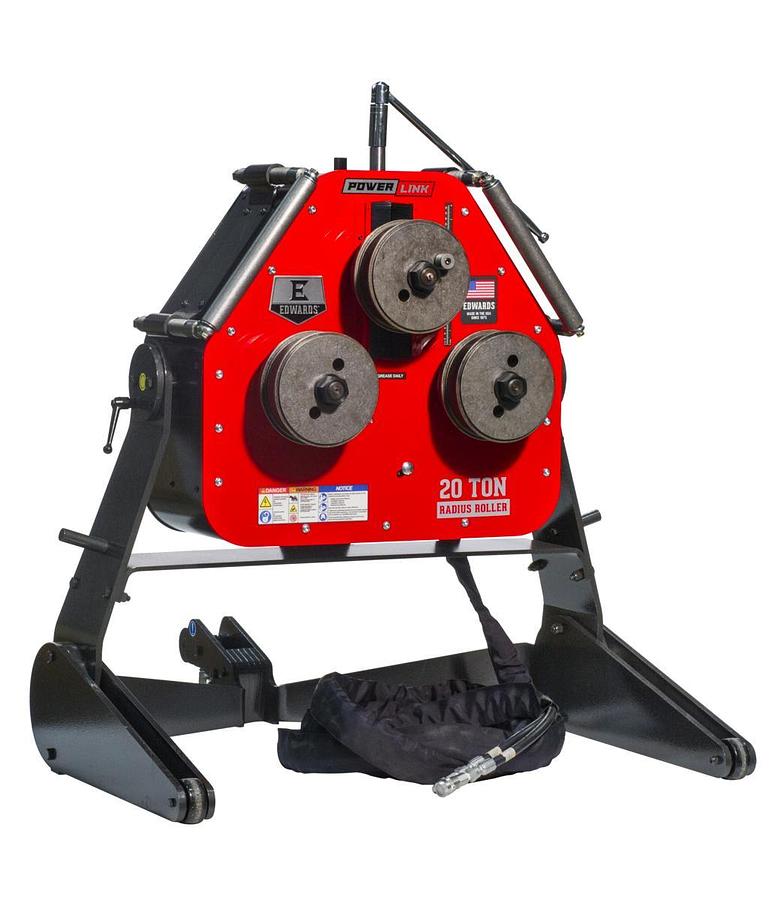

The Edwards 20 Ton Radius Roller is designed to roll medium to heavy flat bar, angle, pipe, tube and channel in smooth, long diameter bends. Able to operate either Horizontally or Vertically depending on your project and with a heavy-duty rolling base, you can move the Radius Roller out of the way when your project is complete. Must be run off an Edwards Ironworker with PowerLink ™ System or Portable Power Unit.


  • 20' quick-connect hoses for simple "plug & play" operation
  • Angle roller machine bends a smooth, long diameter curve for a wide variety of materials including flat bar, angle iron, pipe, tube, square
  • Built-in storage on the frame keeps your Dies conveniently close
  • Edwards 20 Ton radius roller has easy-to-use hand/jog controls with integrated E-Stop
  • Heavy-duty rolling base for easy movement
  • Horizontal or Vertical operation provides the user flexibility
  • Includes a 6 Universal Piece Die Set that accepts square tube, flat bar, angle iron, & channel
  • Hydraulic roller has optional dies available for round pipe, tube, or solid round
  • Variable speed hydraulic drive allows users to dial in the appropriate speed for different materials

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT5000
    ConditionNew
    Stock NumberED9-HAT5000
    Angle Iron Capacity (In.)2 (.250)
    Flat Bar (Easy Way) Capacity (In.)3 (.375)
    Flat Bar (Hard Way) Capacity (In.)2.25
    Overall Dimensions (L x W x H) (In.)45 x 51 x 52
    Product Dimensions (In.)43 x 45 x 49
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)20
    Round Pipe Sch. 40 Capacity (In.)2
    Round Tube Capacity (In.)2-1/2
    Solid Round Capacity (In.)1-3/8
    Square Tube Capacity (In.)2 (.120)
    Warranty1 Year
    Gross Weight994.0
    Net weight950.0
