Description

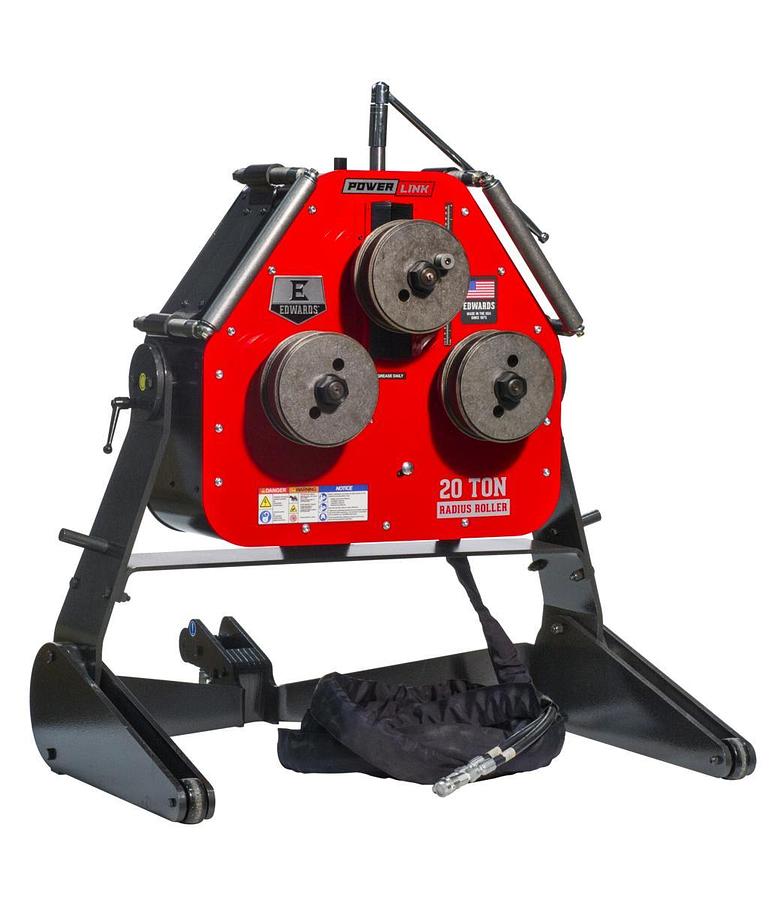

Radius Roller and Portable Power Unit 460V, 3Ph

The Edwards 20 Ton Radius Roller is designed to roll medium to heavy flat bar, angle, pipe, tube and channel in smooth, long diameter bends. Able to operate either Horizontally or Vertically depending on your project and with a heavy-duty rolling base, you can move the Bender out of the way when your project is complete. This Radius Roller package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.


  • 20' quick-connect hoses for simple "plug & play" operation
  • Bends a smooth, long diameter curve for a wide variety of materials including pipe, tube, square tube, solid round, flat bar, angle iron, and channel
  • Built-in storage on the frame keeps your Dies conveniently close
  • Heavy-duty rolling base for easy movement
  • Horizontal or Vertical operation provides the user flexibility
  • Includes a 6 Universal Piece Die Set that accepts square tube, flat bar, angle iron, & channel
  • Optional dies available for round pipe, tube or solid round
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
  • Standard tooling included: 6" Brake with Four-Way Die
  • Variable speed hydraulic drive allows users to dial in the appropriate speed for different materials

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT5030
    ConditionNew
    Stock NumberED9-HAT5030
    Angle Iron Capacity (In.)2 (.250)
    Flat Bar (Easy Way) Capacity (In.)3 (.375)
    Flat Bar (Hard Way) Capacity (In.)2.25
    Overall Dimensions (L x W x H) (In.)69 x 99 x 89
    Product Dimensions (In.)43 x 45 x 49
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)20
    Round Pipe Sch. 40 Capacity (In.)2
    Round Tube Capacity (In.)2-1/2
    Solid Round Capacity (In.)1-3/8
    Square Tube Capacity (In.)2 (.120)
    Warranty1 Year
    Gross Weight1394.0
    Net weight1350.0
