20 Ton Horizontal Press and Portable Power Unit 460V, 3Ph

or
Call (954)444-4004

Description

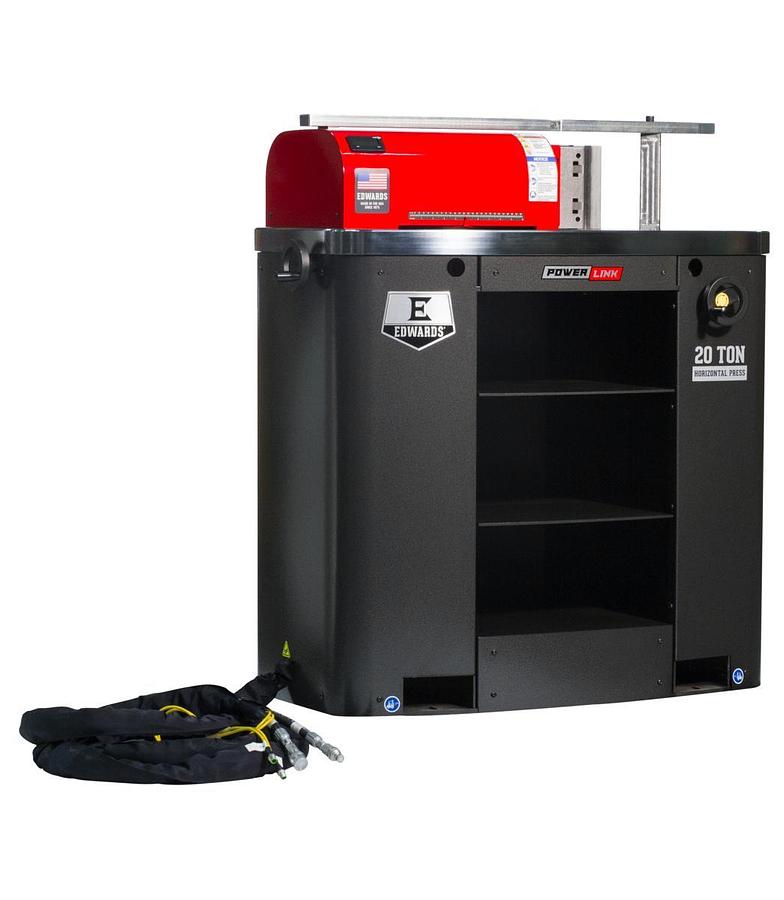

Horizontal Press and Portable Power Unit 460V, 3Ph

The 20 Ton Horizontal Press is the go-to tool to from, break and straighten mild steel. Designed for maximum flexibility to accept a variety (including custom) tooling. Repetitive processes are simple with the proximity sensor and digital readout. This Horizontal Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.


  • 20' quick-connect hoses for simple "plug & play" operation
  • Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling
  • Digital encoder provides enhanced accuracy for precise repeatability
  • Easy-to-use hand/jog controls with integrated E-Stop
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
  • Robust construction with 2" machine heavy-duty table
  • Ships with a standard 6" Brake with 4-Way Die able to create clips, brackets, hangers and more
  • Storage shelves perfect for holding additional tooling

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT6030
    ConditionNew
    Stock NumberED9-HAT6030
    Cylinder (In)2-1/4" Ram
    Overall Dimensions (L x W x H) (In.)54 x 96 x 97
    Product Dimensions (In.)26 x 43 x 49
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)20
    Stroke (In.)10
    Table Dimensions (In.)24 x 42
    Warranty1 Year
    Gross Weight1900.0
    Net weight1862.0
