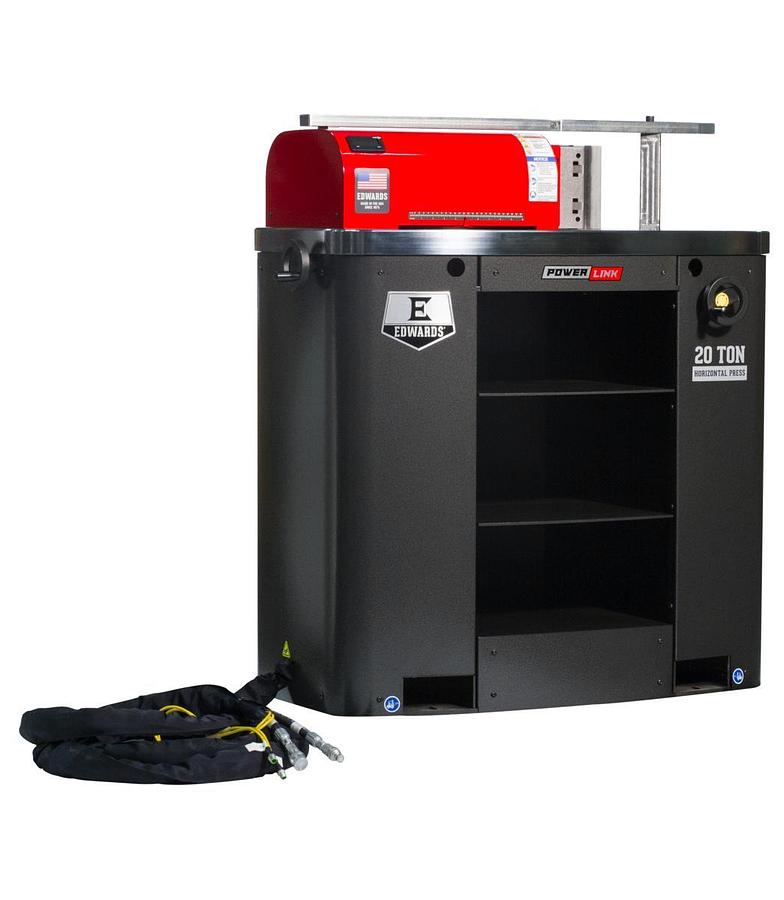

20 Ton Horizontal Press

or
Call (954)444-4004

Description

Horizontal Press

The 20 Ton Horizontal Press is the go-to tool to from, break and straighten mild steel. Designed for maximum flexibility to accept a variety (including custom) tooling. Repetitive processes are simple with the proximity sensor and digital readout. Must be run off an Edwards Ironworker with PowerLink ™ System or Portable Power Unit.


  • 20' quick-connect hoses for simple "plug & play" operation
  • Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling
  • Digital encoder provides enhanced accuracy for precise repeatability
  • Easy-to-use hand/jog controls with integrated E-Stop
  • Robust construction with 2" machine heavy-duty table
  • Ships with a standard 6" Brake with 4-Way Die able to create clips, brackets, hangers and more
  • Storage shelves perfect for holding additional tooling

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT6000
    ConditionNew
    Stock NumberED9-HAT6000
    Cylinder (In)2-1/4" Ram
    Overall Dimensions (L x W x H) (In.)30 x 48 x 60
    Product Dimensions (In.)26 x 43 x 49
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)20
    Stroke (In.)10
    Table Dimensions (In.)24 x 42
    Warranty1 Year
    Gross Weight1500.0
    Net weight1500.0
