10 Ton Bender and Porta Power 460V, 3Ph

or
Call (954)444-4004

Description

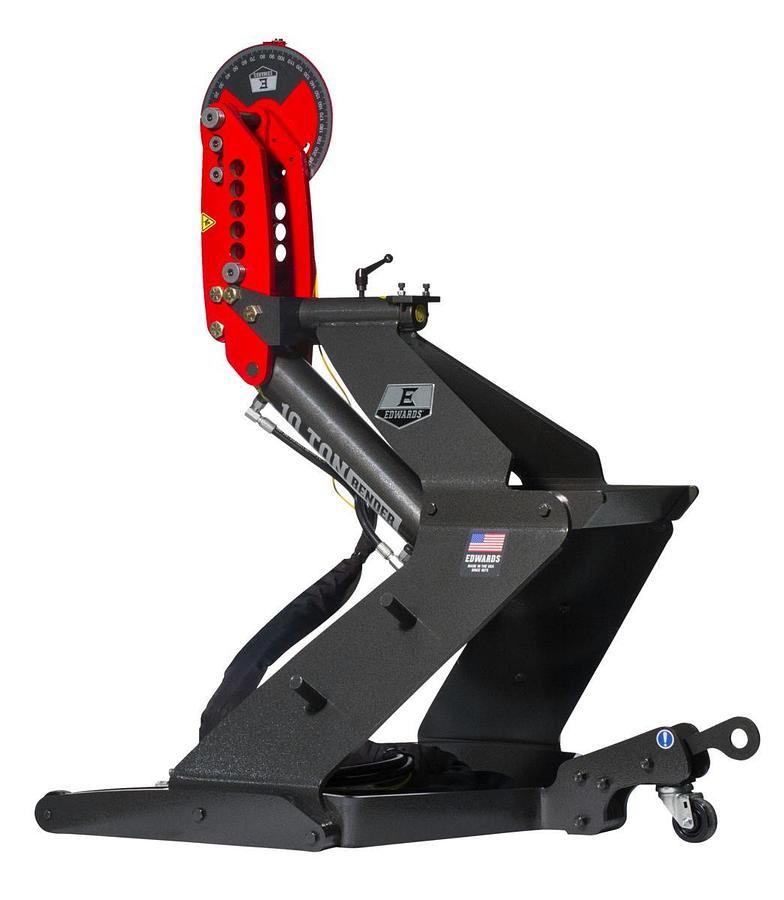

10 Ton Bender and Porta Power 460V, 3Ph

The Edwards 10 Ton Bender provides great flexibility to your shop. With over 300 dies available to bend pipe, tube, or square tube up to 180°, this Bender is a must have for any fabrication shop. Able to operate either Horizontally or Vertically depending on your project and with a heavy-duty rolling base, you can move the Bender out of the way when your project is complete. This Bender package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.


  • 20' quick-connect hoses for simple "plug & play" operation
  • Bend a wide variety of round or square tube and pipe up to 180°s
  • Built-in storage on the frame keeps your Bender Dies conveniently close
  • Easy-to-use hand/jog controls with integrated E-Stop
  • Heavy-duty rolling stand allows you to move the Radius Roller around as needed
  • Horizontal or Vertical operation provides the user flexibility
  • Integrated proximity sensor and degree wheel ensure you make the right bend every time
  • Over 300 standard dies available to handle your bending needs
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT1040
    ConditionNew
    Stock NumberED9-HAT1040
    Bend Capacity180.0000
    Cylinder (In)1-3/4" Ram
    Hydraulics (GPM)3-1/2
    Max. Bend (Deg.)180
    Overall Dimensions (L x W x H) (In.)66 x 93 x 100
    Product Dimensions (In.)40-1/2 x 36-1/2 x 42
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)10
    Round Pipe Sch. 40 Capacity (In.)2
    Round Tube Capacity (In.)2-1/2
    Square Tube Capacity (In.)2 (OD) .25
    Stroke (In.)14
    Valve Pressure (PSI)2750
    Warranty1 Year
    Gross Weight1000.0
    Net weight980.0
