Edwards 10 Ton Tube and Pipe Bender

or
Call (954)444-4004

Description

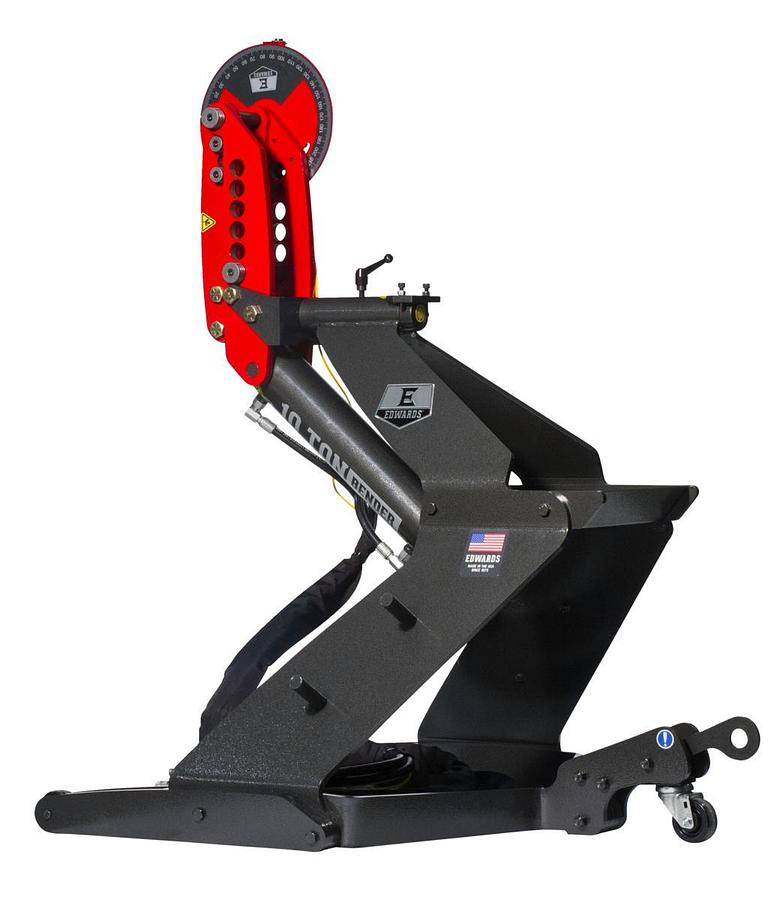

Edwards 10 Ton Tube and Pipe Bender

The Edwards 10 Ton Bender provides great flexibility to your shop. With over 300 dies available to bend pipe, tube, or square tube up to 180°, this Bender is a must have for any fabrication shop. Able to operate either Horizontally or Vertically depending on your project and with a heavy-duty rolling base, you can move the Bender out of the way when your project is complete. Edwards tube and pipe bender must be run off an Edwards Ironworker with PowerLink ™ System or Portable Power Unit.


  • 20' quick-connect hoses for simple "plug & play" operation
  • Bend a wide variety of round or square tubes and pipes up to 180°s
  • Built-in storage on the frame keeps your Bender Dies conveniently close
  • Easy-to-use hand/jog controls with integrated E-Stop
  • Heavy-duty pipe bender's rolling stand allows you to move the Radius Roller around as needed
  • Horizontal or Vertical operation provides the user flexibility
  • Integrated proximity sensor and degree wheel ensure you make the right bend every time
  • Over 300 standard dies available to handle your bending needs

    • Show All

    Specifications

    ManufacturerEdwards
    ModelHAT1000
    ConditionNew
    Stock NumberED9-HAT1000
    Bend Capacity180.0000
    Cylinder (In)1-3/4" Ram
    Hydraulics (GPM)3-1/2
    Max. Bend (Deg.)180
    Overall Dimensions (L x W x H) (In.)42 x 45 x 63
    Pipe Capacity (In.)2 (ID) Sch 40
    Product Dimensions (In.)40-1/2 x 36-1/2 x 42
    Prop 65Cancer and Reproductive Harm
    Rating (Tons)10
    Round Pipe Sch. 40 Capacity (In.)2
    Round Tube Capacity (In.)2-1/2
    Square Tube Capacity (In.)2 (OD) .25
    Stroke (In.)14
    Tube Capacity (In.)2-1/2 (OD) .095
    Valve Pressure (PSI)2750
    Warranty1 Year
    Gross Weight600.0
    Net weight588.0
