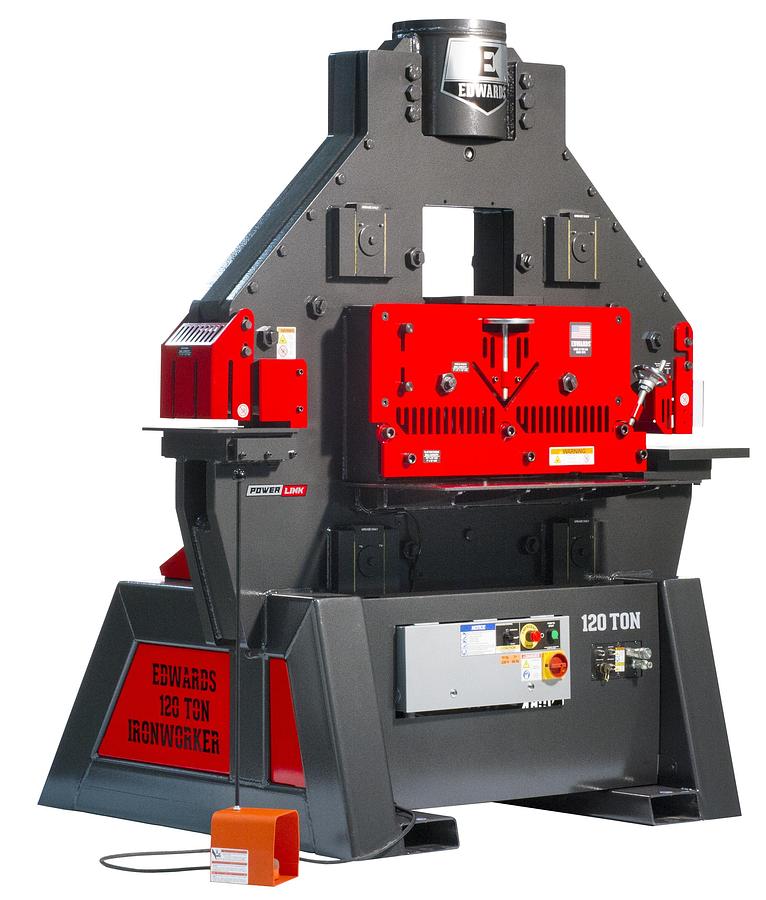

120 Ton Ironworker 460V, 3Ph, with PowerLink
Description
120 Ton Ironworker 460V, 3Ph, with PowerLink
Our most powerful Ironworker, the 120 Ton, offers the largest capacity and most flexibility - created with heavy-duty Made in USA steel construction. This compact machine allows for fast and easy transitions between fabrication operations. The 5 Workstations include a punch, flat bar shear, angle shear, coper notcher, and Open Cavity that accepts 4 Attachments. Further customize the Ironworker to your projects with 12 additional Attachments and 15 Accessories. Other features include an electric foot pedal with integrated jog control and bright LED lights to increase visibility. In addition, the PowerLink⢠System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. The longer stroke length and increased capacity provided by this Ironworker allow it to handle the most heavy-duty projects.
Specifications
| Manufacturer | Edwards |
| Model | IW120-3P460-AC900 |
| Condition | New |
| Stock Number | ED9-IW120-3P460-A |
| Amps | 12 |
| Angle Shear Max Capacity 1/2" | 6 x 6 |
| Angle Shear Work Height (In.) | 52-1/2 |
| Coper Notcher Max Capacity (In.) | 3 x 6 x 1/2 |
| Coper Notcher Work Height (In.) | 40 |
| Flat Bar Shear Max Capacity 1" | 12 |
| Flat Bar Shear Max Capacity 1/2" | 24 |
| Flat Bar Shear Max Capacity (In.) | 24 |
| Flat Bar Shear Max Round Capacity (In.) | 1-1/4 |
| Flat Bar Shear Max Round (In) | 1-1/4 |
| Flat Bar Shear Max Square (In) | 1-1/4 |
| Flat Bar Shear Rating (Tons) | 120 |
| Flat Bar Shear Work Height (In.) | 33-1/4 |
| Hydraulic Pump (GPM) | 24 |
| Hydraulic Reservoir (Gal.) | 17 |
| Hydraulics (GPM) | 24 |
| Hydraulics (PSI) | 3800 |
| Motor Amps | 12 |
| Motor (HP) | 10 HP 3 ~ 460V |
| Motor Speed (RPM) | 1770 |
| Overall Dimensions (L x W x H) (In.) | 60 x 60 x 84 |
| Overall Height (In.) | 87 |
| Product Dimensions (In.) | 60 x 60 x 84 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 120 Tons |
| Punch Open Height (In) | 9-1/8 |
| Punch Rating (Tons) | 120 |
| Punch Shut Height (In) | 7-1/8 |
| Punch Stroke (In.) | 2 |
| Punch Work Height (In.) | 9.125 |
| Rating (Tons) | 120 |
| Reservoir (Gal.) | 17 |
| Shipping Dimensions (L x W x H) (In.) | 60 x 67 x 87 |
| Valve Pressure (PSI) | 3800 |
| Warranty | 1 Year |
| Gross Weight | 5975.0 |
| Net weight | 5856.0 |
