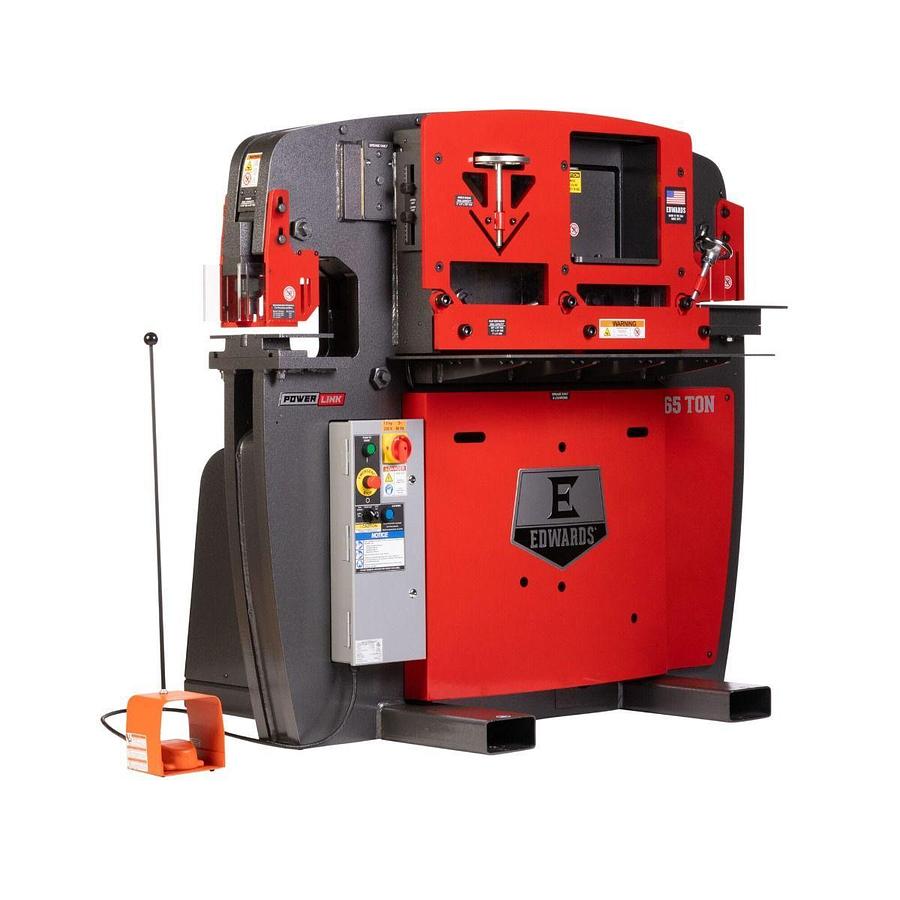

65 Ton Ironworker 208V, 3Ph, with PowerLink

or
Call (954)444-4004

Description

The 65 Ton is the ultimate mid-range Ironworker. Flexible enough to handle a wide variety of projects, this 5 workstation machine is extremely versatile. It allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine. Other features include an electric foot pedal with integrated jog control, bright LED lights to increase visibility and heavy-duty Made in USA steel construction. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. Accepting 14 interchangeable Attachments and 17 Accessories allows an operator to improve productivity and accuracy.


  • 3PH 208V power supply for robust industrial applications
  • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
  • Adjustable electric stroke control for accurate material processing
  • Five Workstations: Standard (4) - Punch, Flat Bar Shear, Angle Shear, Coper Notcher plus Open Cavity to customize your ironworker with four optional attachments including Brake, Rod Shear, Multi-Shear, and Pipe Notcher
  • ETL Certified Controls for compliance and reliability
  • Multiple safety features, including E-Stop and Lock-out/Tag-out system

    • Show All

    Specifications

    ManufacturerEdwards
    ModelIW65-3P208-AC600
    ConditionNew
    Stock NumberED9-IW65-3P208-A
    Amps22
    Angle Shear Max Capacity 3/8"5 x 5
    Angle Shear Work Height (In.)43-1/2
    Coper Notcher Max Capacity (In.)2-1/2 x 5 x 3/8
    Coper Notcher Work Height (In.)39-1/2
    Flat Bar Shear Max Capacity 1/2"14
    Flat Bar Shear Max Capacity 3/8"24
    Flat Bar Shear Max Capacity (In.)3/8 x 24, 1/2 x 14, 1x4
    Flat Bar Shear Max Round Capacity (In.)1
    Flat Bar Shear Max Round (In)1
    Flat Bar Shear Max Square (In)1
    Flat Bar Shear Rating (Tons)65
    Flat Bar Shear Work Height (In.)34-1/2
    Hydraulic Pump (GPM)10-1/2
    Hydraulic Reservoir (Gal.)17
    Hydraulics (GPM)10-1/2
    Hydraulics (PSI)3500
    Motor Amps22
    Motor (HP)7.5 HP 3 ~ 208V
    Motor Speed (RPM)1765
    Overall Dimensions (L x W x H) (In.)45 x 62-1/8 x 57
    Prop 65Cancer and Reproductive Harm
    Punch Max Capacity (In.)1-1/16 diam. in 3/4 mild steel
    Punch Open Height (In)8-3/4
    Punch Rating (Tons)65
    Punch Shut Height (In)6-15/16
    Punch Stroke (In.)1-13/16
    Punch Work Height (In.)36-9/16
    Rating (Tons)65
    Reservoir (Gal.)17
    Shipping Dimensions (L x W x H) (In.)46 x 69 x 63
    Valve Pressure (PSI)3500
    Warranty1 Year
    Gross Weight4750.0
    Net weight4655.0
