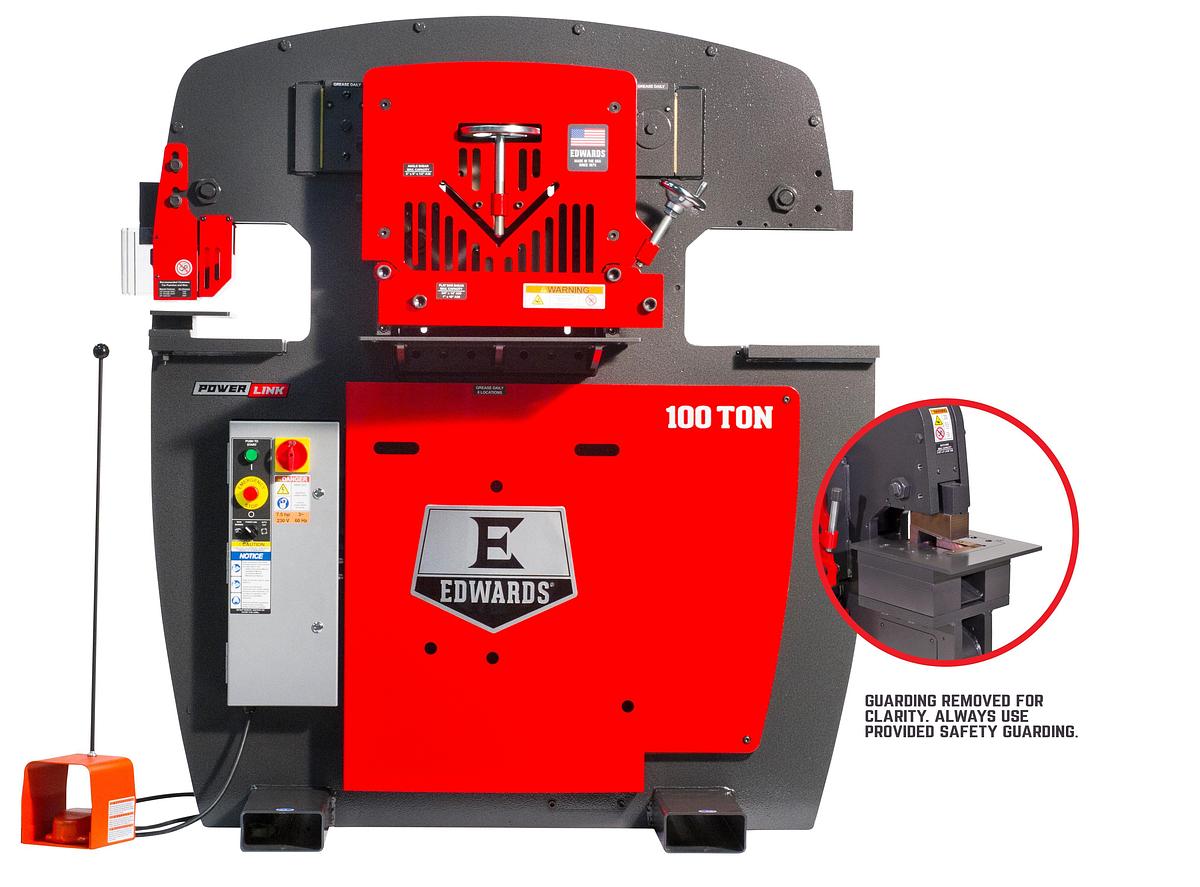

100 Ton Ironworker 208V, 3Ph, PowerLink, Coper Notcher & 2 LED Lights

Description

This 100 Ton Ironworker provides optimal power and adaptability to handle any project with its 4 Workstations including a factory-installed Coper Notcher. Compatible with 12 interchangeable Attachments and 17 Accessories to adapt the Ironworker to your needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle. Ideal for larger fabrication shops or those jobs requiring heavier materials.


  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Durable, heavy-duty Made in USA steel construction
  • ETL Certified Controls
  • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
  • Specifications

    ManufacturerEdwards
    Model10231512
    ConditionNew
    Stock NumberED9-10231512
    Flat Bar Shear Max Capacity 1"14
    Flat Bar Shear Max Round (In)1-1/4
    Flat Bar Shear Max Square (In)1-1/4
    Flat Bar Shear Work Height (In.)37
    Motor Amps22
    Motor (HP)7.5 HP 3 ~ 208V
    Motor Speed (RPM)1765
    Prop 65None
    Punch Max Capacity (In.)1-1/16 dia in 1" A36"
    Punch Open Height (In)8-3/4
    Punch Shut Height (In)6-15/16
    Punch Stroke (In.)1-13/16
    Punch Throat Depth (In.)11
    Punch Work Height (In.)39-1/16
    Rating (Tons)100
    Reservoir (Gal.)17
    Valve Pressure (PSI)3500
    Warranty1 Year
    Gross Weight4735.0
    Net weight4735.0
