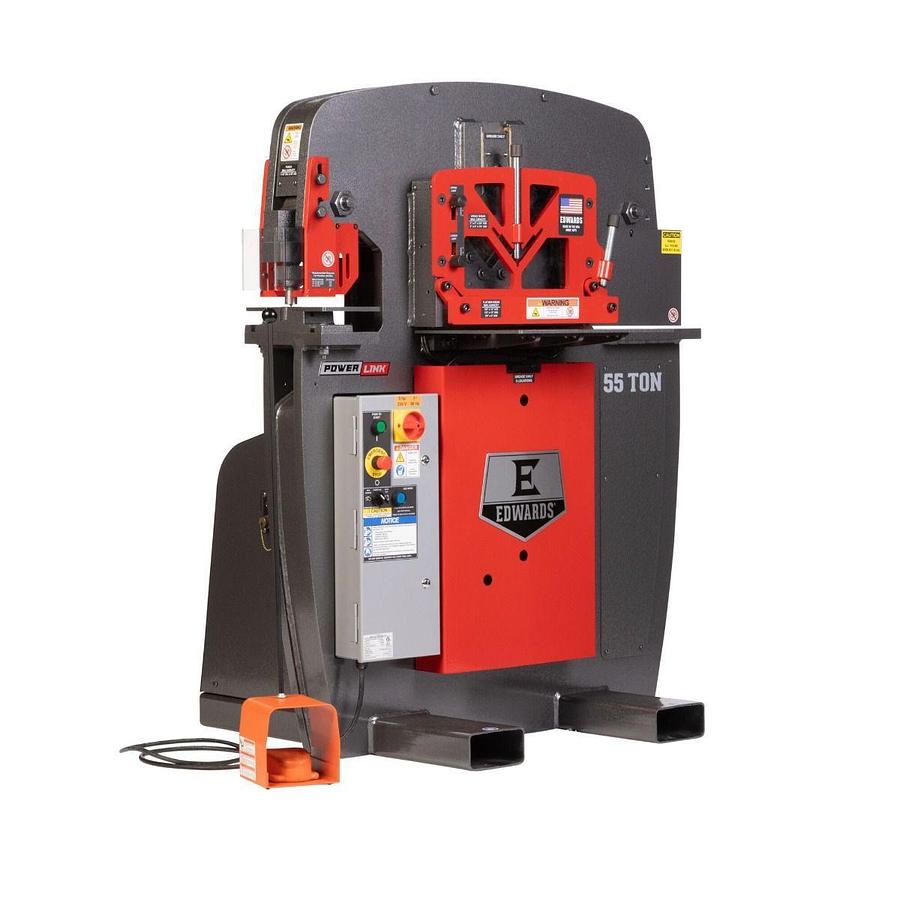

55 Ton Ironworker 230V, 3Ph with PowerLink
Description
55 Ton Ironworker 230V, 3Ph with PowerLink
The 55 Ton Ironworker provides more than enough power for larger projects and offers the ability to customize one of its 4 Workstations with 11 interchangeable Attachments. There are 17 Accessories that improve operator accuracy and productivity. Great for general use from medium size shops to full factory maintenance departments. The PowerLink⢠System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. ETL/UL
Approved Controls.
Specifications
| Manufacturer | Edwards |
| Model | IW55-3P230-AC500 |
| Condition | New |
| Stock Number | ED9-IW55-3P230-A |
| Amps | 14 |
| Angle Shear Max Capacity 1/4" | 4 x 4 |
| Angle Shear Work Height (In.) | 39-7/8 |
| Flat Bar Shear Max Capacity 1/2" | 12 |
| Flat Bar Shear Max Capacity 3/4" | 4 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 14, 1/2 x 12, 3/4 x 4 |
| Flat Bar Shear Max Round (In) | 7/8 |
| Flat Bar Shear Max Square (In) | 7/8 |
| Flat Bar Shear Rating (Tons) | 55 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Hydraulic Pump (GPM) | 3-1/2 |
| Hydraulics (GPM) | 3-1/2 |
| Hydraulics (PSI) | 2500 |
| Motor Amps | 14 |
| Motor (HP) | 5 HP 3 ~ 230V |
| Motor Speed (RPM) | 1725 |
| Open Station Open Height (In) | 8-1/8 |
| Open Station Shut Height (In) | 6-7/8 |
| Open Station Stroke (In) | 1-1/4 |
| Open Station Throat Depth (In) | 11-3/16 |
| Open Station Work Height (In) | 34-1/2 |
| Open Workstation Throat Depth (In.) | 11-3/16 |
| Open Workstation Work Height (In.) | 34-1/2 |
| Optional Coper Notcher Work Height (In.) | 39-1/2 |
| Overall Dimensions (L x W x H) (In.) | 36-1/8 x 44-3/8 x 55-1/4 |
| Product Dimensions (In.) | 44-3/8 x 36-1/8 x 55-1/4 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 1-1/16 diam. in 5/8 mild steel |
| Punch Open Height (In) | 8-1/8 |
| Punch Rating (Tons) | 55 |
| Punch Shut Height (In) | 6-7/8 |
| Punch Stroke (In.) | 1-1/4 |
| Punch Throat Depth (In.) | 7-1/2 |
| Punch Work Height (In.) | 36-9/16 |
| Rating (Tons) | 55 |
| Reservoir (Gal.) | 7 |
| Shipping Dimensions (L x W x H) (In.) | 45 x 51 x 62 |
| Valve Pressure (PSI) | 2750 |
| Warranty | 1 Year |
| Gross Weight | 2480.0 |
| Net weight | 2430.0 |
