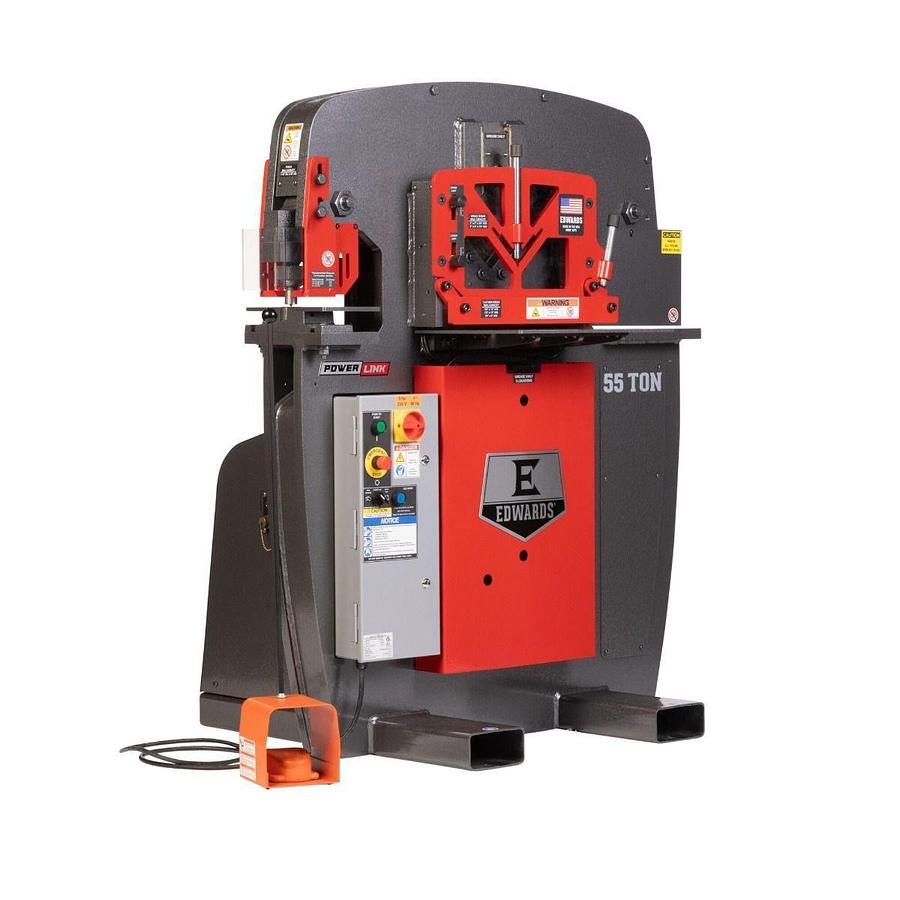

55 Ton Ironworker 460V, 3Ph with PowerLink

or
Call (954)444-4004

Description

Designed for high-output manufacturing environments, the 55 Ton Ironworker with PowerLink is built to handle large-scale projects with ease. With four workstations and 11 interchangeable attachments, this ironworker is versatile and powerful. The PowerLink™ System enhances efficiency by converting the unit into a power source for hydraulic tools. Enhanced safety and precision come from features like bright LED lighting, an open-style guard, and an illuminated jog button.


  • 3PH 460V power supply for heavy-duty industrial applications
  • Adjustable electric stroke control for fine-tuned performance
  • Optional accessories available to further increase precision
  • Optimized workstation heights to maximize efficiency
  • Integrated E-Stop and Lock-out/Tag-out features for enhanced safety
  • ANSI B11.5-1988(02) compliant guarding for operator protection
  • ETL/UL Approved Controls ensure safety and compliance

    • Show All

    Specifications

    ManufacturerEdwards
    ModelIW55-3P460-AC500
    ConditionNew
    Stock NumberED9-IW55-3P460-A
    Amps7
    Angle Shear Max Capacity 1/4"4 x 4
    Angle Shear Work Height (In.)39-7/8
    Flat Bar Shear Max Capacity 1/2"12
    Flat Bar Shear Max Capacity 3/4"4
    Flat Bar Shear Max Capacity (In.)3/8 x 14, 1/2 x 12, 3/4 x 4
    Flat Bar Shear Max Round (In)7/8
    Flat Bar Shear Max Square (In)7/8
    Flat Bar Shear Rating (Tons)55
    Flat Bar Shear Work Height (In.)34-1/2
    Hydraulic Pump (GPM)3-1/2
    Hydraulics (GPM)3-1/2
    Hydraulics (PSI)2500
    Motor Amps7
    Motor (HP)5 HP 3 ~ 460V
    Motor Speed (RPM)1725
    Open Station Open Height (In)8-1/8
    Open Station Shut Height (In)6-7/8
    Open Station Stroke (In)1-1/4
    Open Station Throat Depth (In)11-3/16
    Open Station Work Height (In)34-1/2
    Open Workstation Throat Depth (In.)11-3/16
    Open Workstation Work Height (In.)34-1/2
    Optional Coper Notcher Work Height (In.)39-1/2
    Overall Dimensions (L x W x H) (In.)36-1/8 x 44-3/8 x 55-1/4
    Product Dimensions (In.)44-3/8 x 36-1/8 x 55-1/4
    Prop 65Cancer and Reproductive Harm
    Punch Max Capacity (In.)1-1/16 diam. in 5/8 mild steel
    Punch Open Height (In)8-1/8
    Punch Rating (Tons)55
    Punch Shut Height (In)6-7/8
    Punch Stroke (In.)1-1/4
    Punch Throat Depth (In.)7-1/2
    Punch Work Height (In.)36-9/16
    Rating (Tons)55
    Reservoir (Gal.)7
    Shipping Dimensions (L x W x H) (In.)45 x 51 x 62
    Valve Pressure (PSI)2750
    Warranty1 Year
    Gross Weight2480.0
    Net weight2430.0
