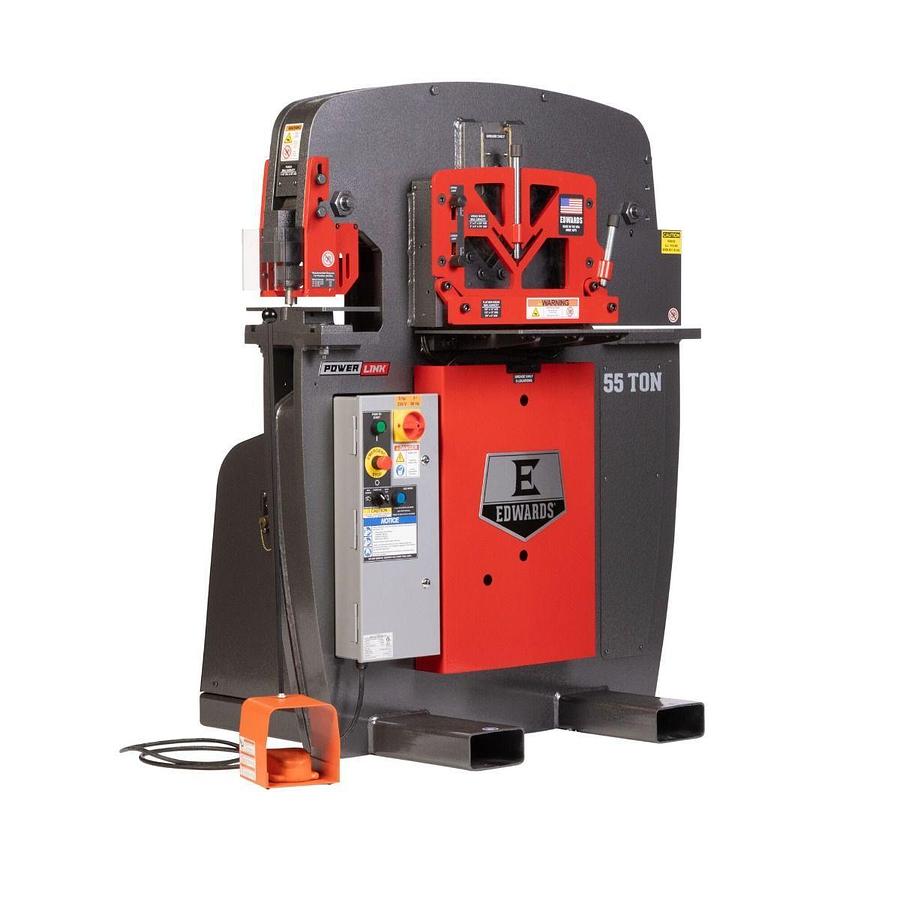

55 Ton Ironworker 208V, 3Ph with PowerLink
Description
The 55 Ton Ironworker with PowerLink delivers unmatched power and versatility, making it a go-to choice for industrial applications. With four workstations and 11 interchangeable attachments, operators can tailor it to meet specific needs. The PowerLink⢠System enhances productivity by turning the ironworker into a power source for hydraulic tools. Safety is a priority with an open-style guard, bright LED lighting, and an illuminated jog button that toggles between jog and standard mode.
Specifications
| Manufacturer | Edwards |
| Model | IW55-3P208-AC500 |
| Condition | New |
| Stock Number | ED9-IW55-3P208-A |
| Amps | 14 |
| Angle Shear Max Capacity 1/4" | 4 x 4 |
| Angle Shear Work Height (In.) | 39-7/8 |
| Flat Bar Shear Max Capacity 1/2" | 12 |
| Flat Bar Shear Max Capacity 3/4" | 4 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 14, 1/2 x 12, 3/4 x 4 |
| Flat Bar Shear Max Round (In) | 7/8 |
| Flat Bar Shear Max Square (In) | 7/8 |
| Flat Bar Shear Rating (Tons) | 55 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Hydraulic Pump (GPM) | 3-1/2 |
| Hydraulics (GPM) | 3-1/2 |
| Hydraulics (PSI) | 2500 |
| Motor Amps | 14 |
| Motor (HP) | 5 HP 3 ~ 208V |
| Motor Speed (RPM) | 1725 |
| Open Station Open Height (In) | 8-1/8 |
| Open Station Shut Height (In) | 6-7/8 |
| Open Station Stroke (In) | 1-1/4 |
| Open Station Throat Depth (In) | 11-3/16 |
| Open Station Work Height (In) | 34-1/2 |
| Open Workstation Throat Depth (In.) | 11-3/16 |
| Open Workstation Work Height (In.) | 34-1/2 |
| Optional Coper Notcher Work Height (In.) | 39-1/2 |
| Overall Dimensions (L x W x H) (In.) | 36-1/8 x 44-3/8 x 55-1/4 |
| Product Dimensions (In.) | 44-3/8 x 36-1/8 x 55-1/4 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 1-1/16 diam. in 5/8 mild steel |
| Punch Open Height (In) | 8-1/8 |
| Punch Rating (Tons) | 55 |
| Punch Shut Height (In) | 6-7/8 |
| Punch Stroke (In.) | 1-1/4 |
| Punch Throat Depth (In.) | 7-1/2 |
| Punch Work Height (In.) | 36-9/16 |
| Rating (Tons) | 55 |
| Reservoir (Gal.) | 7 |
| Shipping Dimensions (L x W x H) (In.) | 45 x 51 x 62 |
| Valve Pressure (PSI) | 2750 |
| Warranty | 1 Year |
| Gross Weight | 2480.0 |
| Net weight | 2430.0 |
