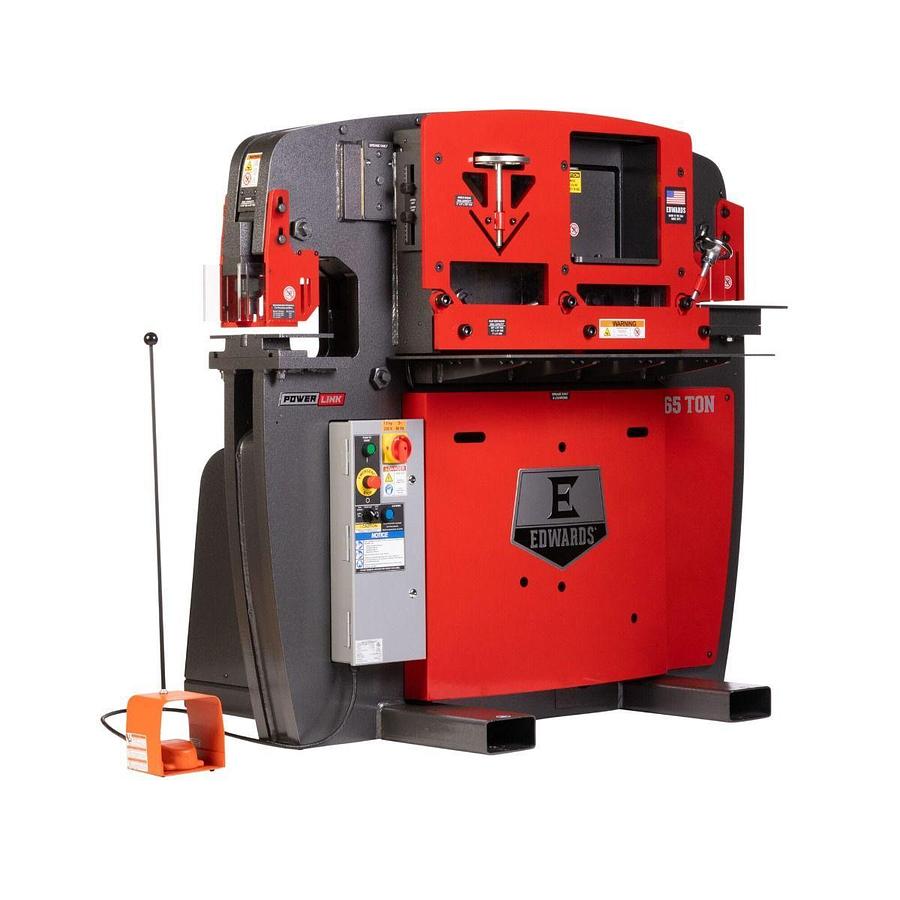

65 Ton Ironworker 230V, 1Ph, with PowerLink
Description
The 65 Ton is the ultimate mid-range Ironworker. Flexible enough to handle a wide variety of projects, this 5 workstation machine is extremely versatile. It allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine. Other features include an electric foot pedal with integrated jog control, bright LED lights to increase visibility and heavy-duty Made in USA steel construction. The PowerLink⢠System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. Accepting 14 interchangeable Attachments and 17 Accessories allows an operator to improve productivity and accuracy.
Specifications
| Manufacturer | Edwards |
| Model | IW65-1P230-AC700 |
| Condition | New |
| Stock Number | ED9-IW65-1P230-A |
| Amps | 36 |
| Angle Shear Max Capacity 3/8" | 5 x 5 |
| Angle Shear Work Height (In.) | 43-1/2 |
| Coper Notcher Max Capacity (In.) | 2-1/2 x 5 x 3/8 |
| Coper Notcher Work Height (In.) | 39-1/2 |
| Flat Bar Shear Max Capacity 1/2" | 14 |
| Flat Bar Shear Max Capacity 3/8" | 24 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 24, 1/2 x 14, 1x4 |
| Flat Bar Shear Max Round Capacity (In.) | 1 |
| Flat Bar Shear Max Round (In) | 1 |
| Flat Bar Shear Max Square (In) | 1 |
| Flat Bar Shear Rating (Tons) | 65 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Hydraulic Pump (GPM) | 10-1/2 |
| Hydraulic Reservoir (Gal.) | 17 |
| Hydraulics (GPM) | 10-1/2 |
| Hydraulics (PSI) | 3500 |
| Motor Amps | 36 |
| Motor (HP) | 7.5 HP 1 ~ 230V |
| Motor Speed (RPM) | 1765 |
| Overall Dimensions (L x W x H) (In.) | 45 x 62-1/8 x 57 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 1-1/16 diam. in 3/4 mild steel |
| Punch Open Height (In) | 8-3/4 |
| Punch Rating (Tons) | 65 |
| Punch Shut Height (In) | 6-15/16 |
| Punch Stroke (In.) | 1-13/16 |
| Punch Work Height (In.) | 36-9/16 |
| Rating (Tons) | 65 |
| Reservoir (Gal.) | 17 |
| Shipping Dimensions (L x W x H) (In.) | 46 x 69 x 63 |
| Valve Pressure (PSI) | 3500 |
| Warranty | 1 Year |
| Gross Weight | 4750.0 |
| Net weight | 4655.0 |
