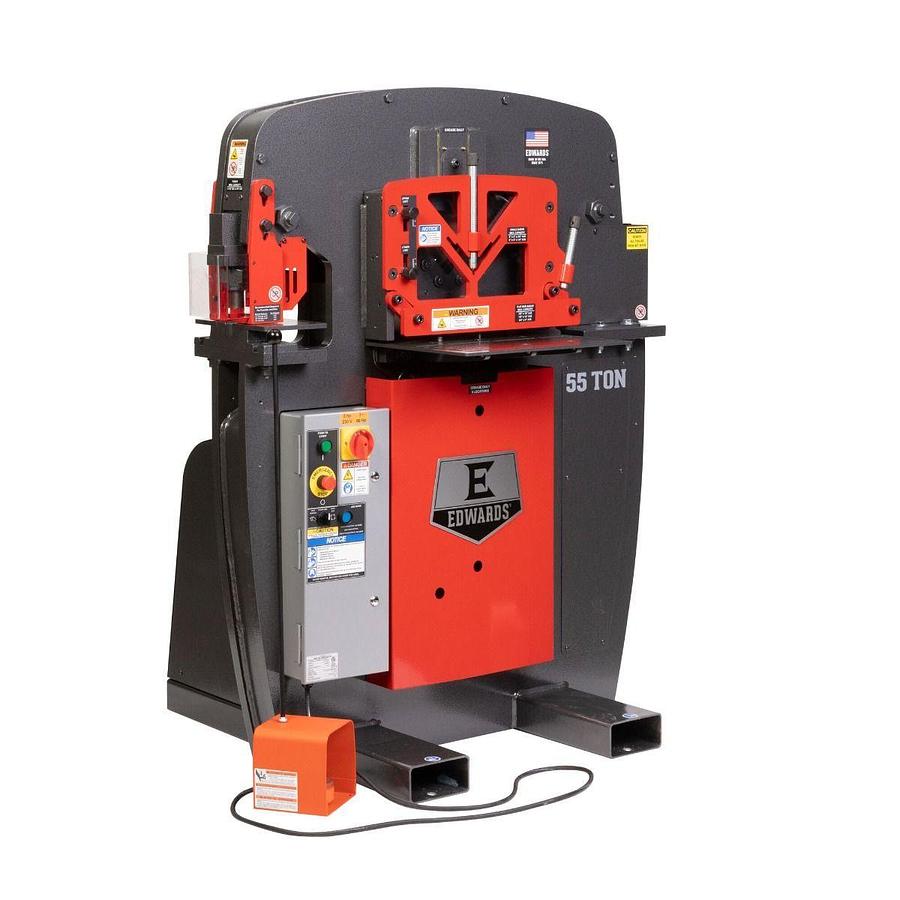

55 Ton Ironworker 460V, 3Ph
Description
Designed for heavy-duty industrial applications, the 55 Ton Ironworker with 3 Phase 460V power delivers unmatched strength, precision, and safety. It features bright LED lights and an open-style guard for superior visibility, allowing for precise and controlled operation. The illuminated jog button provides quick transitions between jog mode and standard mode, ensuring safe and efficient workflow. With four workstations, 11 interchangeable attachments, and USA-made steel construction, this ironworker is built for maximum performance in demanding environments.
Specifications
| Manufacturer | Edwards |
| Model | IW55-3P460 |
| Condition | New |
| Stock Number | ED9-IW55-3P460 |
| Amps | 7 |
| Angle Shear Max Capacity 1/4" | 4 x 4 |
| Angle Shear Work Height (In.) | 39-7/8 |
| Flat Bar Shear Max Capacity 1/2" | 12 |
| Flat Bar Shear Max Capacity 3/4" | 4 |
| Flat Bar Shear Max Capacity (In.) | 3/8 x 14, 1/2 x 12, 3/4 x 4 |
| Flat Bar Shear Max Round (In) | 7/8 |
| Flat Bar Shear Max Square (In) | 7/8 |
| Flat Bar Shear Rating (Tons) | 55 |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| Hydraulic Pump (GPM) | 3-1/2 |
| Hydraulics (GPM) | 3-1/2 |
| Hydraulics (PSI) | 2500 |
| Motor Amps | 7 |
| Motor (HP) | 5 HP 3 ~ 460V |
| Motor Speed (RPM) | 1725 |
| Open Station Open Height (In) | 8-1/8 |
| Open Station Shut Height (In) | 6-7/8 |
| Open Station Stroke (In) | 1-1/4 |
| Open Station Throat Depth (In) | 11-3/16 |
| Open Station Work Height (In) | 34-1/2 |
| Open Workstation Throat Depth (In.) | 11-3/16 |
| Open Workstation Work Height (In.) | 34-1/2 |
| Optional Coper Notcher Work Height (In.) | 39-1/2 |
| Overall Dimensions (L x W x H) (In.) | 36-1/8 x 44-3/8 x 55-1/4 |
| Product Dimensions (In.) | 44-3/8 x 36-1/8 x 55-1/4 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 1-16 diam. In 5/8 mild steel |
| Punch Open Height (In) | 8-1/8 |
| Punch Rating (Tons) | 55 |
| Punch Shut Height (In) | 6-7/8 |
| Punch Stroke (In.) | 1-1/4 |
| Punch Throat Depth (In.) | 7-1/2 |
| Punch Work Height (In.) | 36-9/16 |
| Rating (Tons) | 55 |
| Reservoir (Gal.) | 7 |
| Shipping Dimensions (L x W x H) (In.) | 45 x 51 x 62 |
| Valve Pressure (PSI) | 2750 |
| Warranty | 1 Year |
| Gross Weight | 2480.0 |
| Net weight | 2430.0 |
