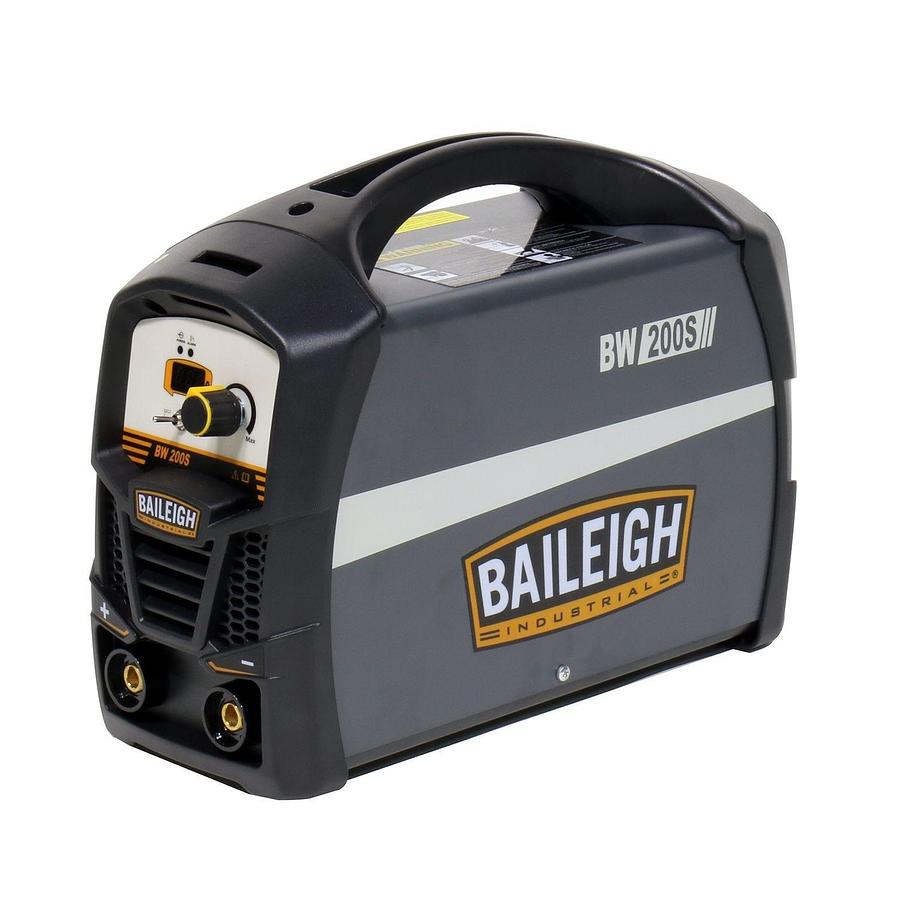

BW-200S - 200A Stick (SMAW) Welder

or
Call (954)444-4004

Description

  • Portable IGBT inverter stick welder
  • Dual voltage: 120/230V single-phase
  • Thermal overload protected

    • The BW-200S from Baileigh Industrial is an industrial level 200 Amp Arc welder. It features extremely solid construction but remains very portable at only 16 lbs. This BW-200S Industrial welding machine is the ideal choice for a welder working at the job site in during extreme conditions.
    Order this SMAW welding machine from Baileigh Industrial today!

  • Portable IGBT Inverter stick welder
  • Dual voltage can run on 120 volt or 230-volt single-phase power - High Open Circuit Voltage
  • Intelligent voltage sensing – This welder knows what voltage it is plugged into and (when plugged into 120V) will limit the output of the welder
  • Step-less Current Adjustment - adjustments are infinite and do not “click” between only a few options
  • Thermal Overload Protected, will shut down welding if its temperature is too high - Fan Cooled
  • Anti-Stick / Hot Start - automatically increases output at the beginning of a weld to pre-heat the weld and electrode
  • Arc Force, keeps arc more stable, with less sticking when the electrode is close
  • Lift ARC TIG capable – Torch not included
  • Generator safe and will tolerate large voltage variations
  • Includes electrode holder, ground clamp, 6-50P 250V plug, and adapter to 120V plug

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBW-200S
    ConditionNew
    Stock NumberBA9-1021967
    CertificationCSA UL
    Cooling SystemFan Cooled
    Current Draw (Watts)200 Amps
    Duty Cycle 10077A (120V) / 77A (230V)
    Enclosure ProtectionIP21S
    Input PowerDual Voltage - 120V/230V Single Phase
    Insulation ClassH
    No Load Voltage78V (120V) / 78V (230V)
    Power Factor0.7500
    Prop 65Cancer and Reproductive Harm
    Rated Duty Cycle100% (120V) / 15% (230V)
    Rated Input Capacitance4.4KVA (120V) / 9.2KVA (230V)
    Rated Input Current20A (120V) / 40A (230V)
    Rated Working Voltage23V (120V) / 28V (230V)
    Shipping Dimensions (L x W x H) (In.)18x10x14
    Warranty1 Year
    Welding Current15~75A (120V) / 12~200A (230V)
    Gross Weight20.0
    Net weight20.0
    Efficiency (percentage)85%
