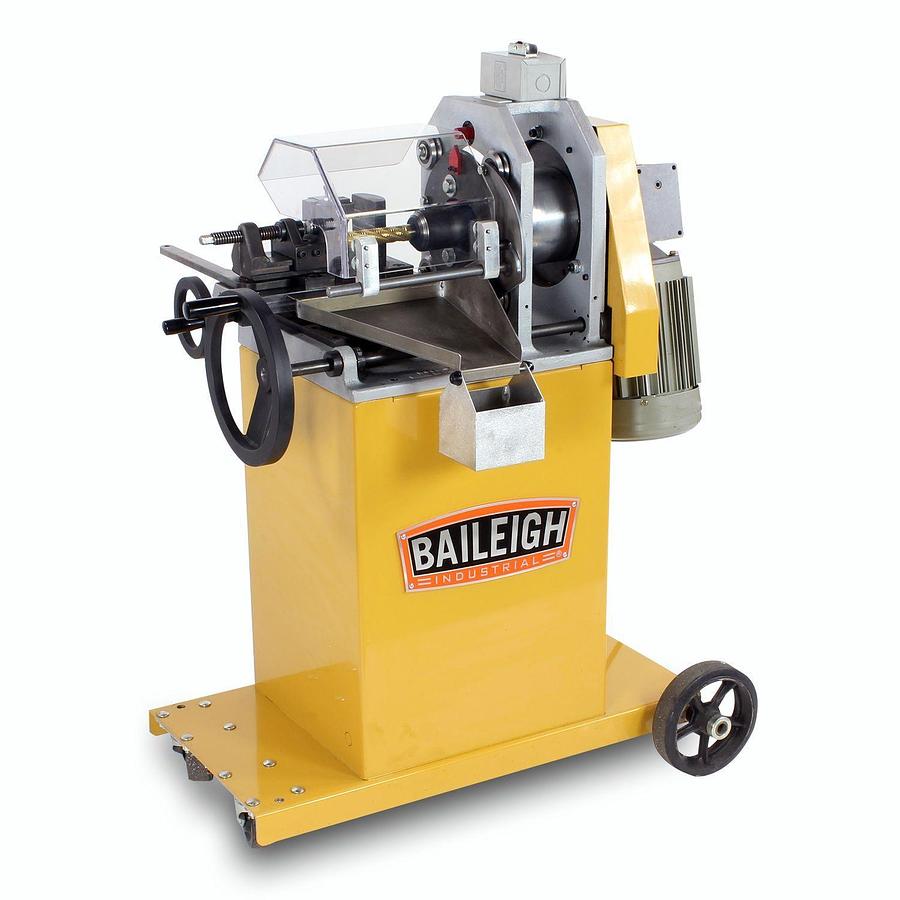

Tube and Pipe Notcher | TN-800

or
Call (954)444-4004

Description

  • 110V end mill tube and pipe notcher.
  • For 1" to 3" OD tube.
  • Notches up to 60Deg..
  • Patented design no tooling needed.

    • The TN-800 Tube and Pipe Notcher does what no other Tubing Notcher on the market can do: notch tube from 1” to 3” OD without any change in tooling, hole saws, or mandrels.
    Recommended for: Structural work, racing and off-road chassis, steam pipe, and many more applications.
    Why choose the TN-800 over similar machines?
    *Baileigh’s patented design (Patent No: 6,435,783) can save you thousands of dollars every year in tooling costs. No competing End Mill Notcher can cope from 1” to 3” OD tube or pipe without a switch.
    *Decimal angle-finder enables you to work your way up to the right notch angle to produce a tighter fit and a better weld without wasting material on trial and error.
    *Made in the USA and built to last, the TN-800 draws strength from its rugged cast iron construction, something you won’t find on many competing models.
    *You can depend on unlimited remote assistance from Baileigh’s team of friendly and experienced reps. Call us anytime for application advice and problem solving.

  • Made in the USA
  • 1 hp motor runs on 110-volt power. You can operate it almost anywhere, including in the field
  • Notches up to 60°
  • Carefully chosen milling speed of 350 rpm balances cutting power with long machine life and low wear and tear
  • Our tooling-free design lets you simply dial in the OD that you want to notch—and the Tube Notcher will change its eccentric path and produce a perfect notch
  • Vise adjusts in just about every way possible, featuring X- and Y-axis control to ensure a good cutting position
  • Degree or angle-finder makes it simple to check the angle and ensure repeatability
  • If you want a more traditional notch, the cam lock enables you to set your degrees|| just move it in either direction to angle the notch
  • Heavy-duty cast iron framework reduces vibration, prolongs machine life, and delivers more accurate results
  • Includes portable cart with wheels, so that when you’re not using the TN-800 you can roll it out of the way

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelTN-800
    ConditionNew
    Stock NumberBA9-TN800
    Motor (HP)1 hp
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Gross Weight600.0
    Net weight600.0

    Documents
