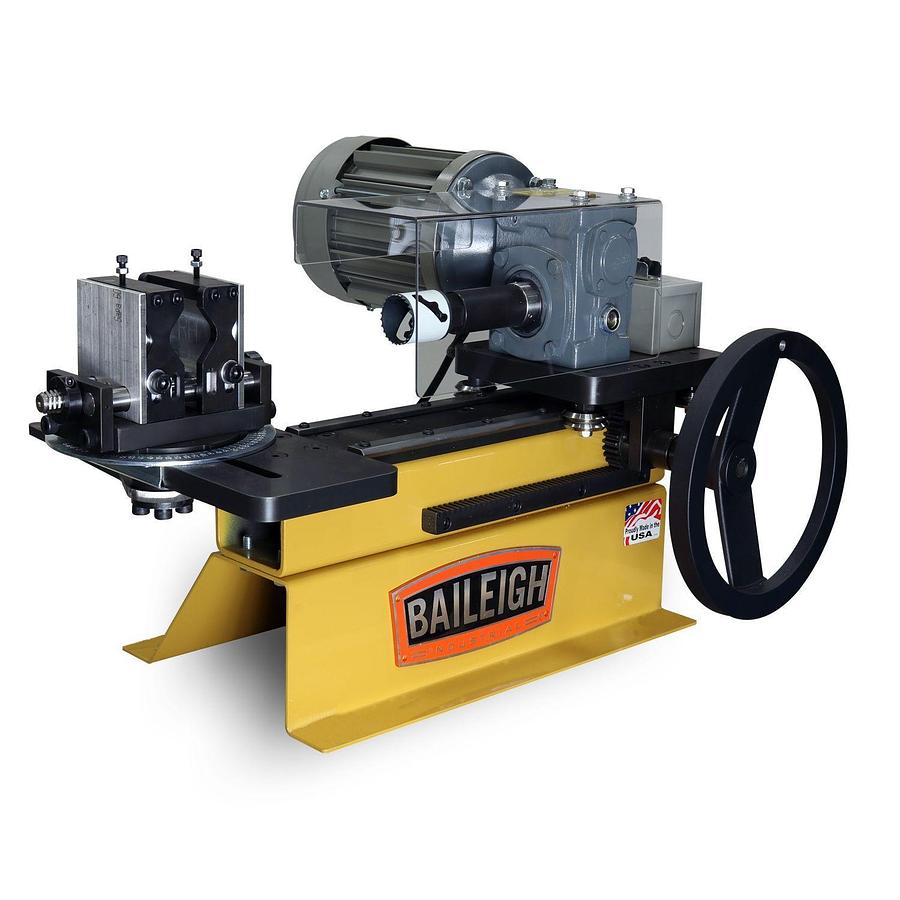

Pipe Notcher TN-300

or
Call (954)444-4004

Description

  • 110V hole saw notcher
  • 5/8 " to 3 " OD capacity
  • Up to 220Deg. angle adjustment
  • Runs at 177 rpm

    • What makes the TN-300 pipe notcher the best production hole saw tube notcher on the market today? Baileigh eliminated the need for a hand drill to create a more useful tool for fabricators.


  • Proudly made in the USA.
  • Requires 110-volt single-phase power.
  • Notches .5” to 3” tube and .5” to 2.5” schedule 40 pipes.
  • You can adjust the notching angle up to 220°.
  • High-quality .5 hp motor will last through years of profitable production.
  • Runs at 233 rpm to give an optimal combination of saw life and cutting speed.
  • Quick-release cam-centric vise and solid taper lock enable you to set up different notch angles in seconds.
  • Includes a large degree wheel for indexing the vise.
  • Designed for easy operation: just turn it on, grab the hand wheel, and rotate it toward the material.
  • Rigid steel plate base and industrial-grade components help to reduce vibrations made by the hole saw.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelTN-300
    ConditionNew
    Stock NumberBA9-TN300
    Motor (HP)1/2
    Notch Capacity (in./OD)5/8" - 3"
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Gross Weight220.0
    Net weight220.0
    Motor Phase1
    Shipping Weight (Lbs.)220
    Volts110

    Documents
