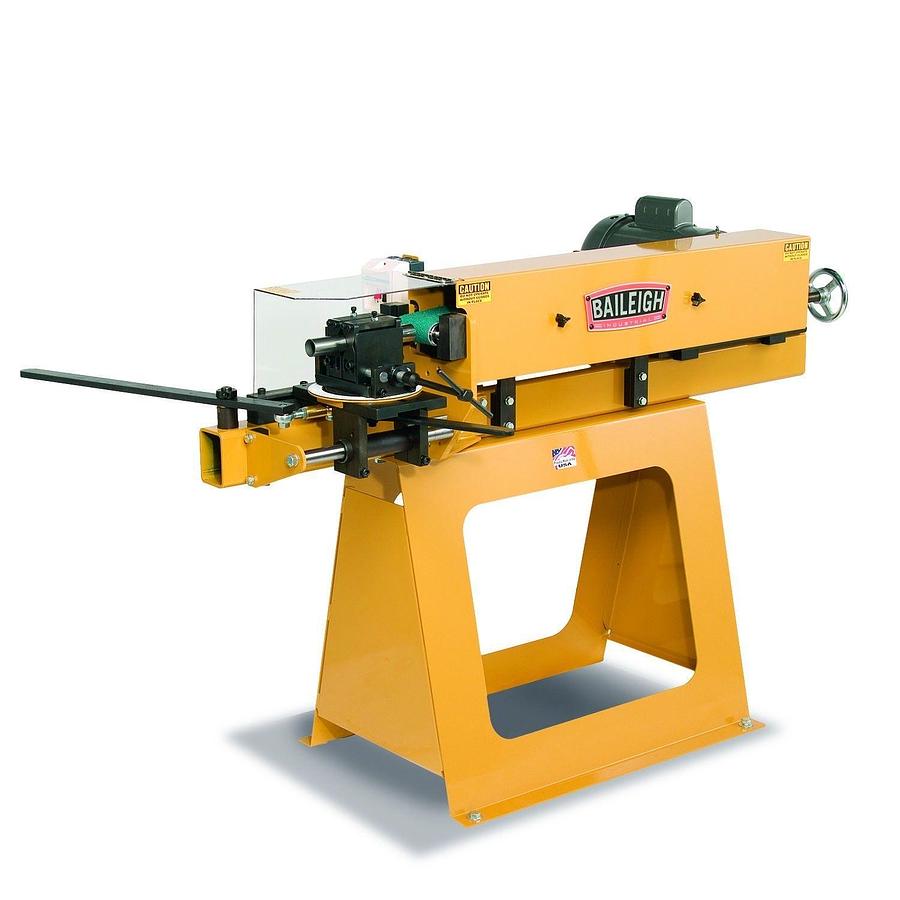

Abrasive Notcher TN-400

or
Call (954)444-4004

Description

  • .75 " to 2 " tube capacity
  • Up to 60Deg. angle adjustment
  • 79 " x 4 " belt
  • Self-centering vise

    • The TN-400 abrasive tube notcher uses a self-centering vise to guarantee the right belt positioning every time. This machine will help you perfectly cope thin wall tubing.


  • Made in the USA.
  • 3 hp motor runs on 220-volt single-phase power.
  • Ideal for coping the ends of .75” OD to 2” OD tubing or pipe.
  • Notches at almost any angle up to 60°.
  • 79” x 4” belt spins at a speed of 5420 feet per minute.
  • V-block design of the vise jaws keeps the tube or pipe centered with the notching spindle and holds it securely.
  • Vise carriage rides on a smooth Thompson® shaft assembly during the notching cycle.
  • Pivoted control lever presses the material press into the belt.
  • Quick-change tooling system allows you to swap out the mandrel in seconds.
  • Comes standard with 1.25” pipe mandrel.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelTN-400
    ConditionNew
    Stock NumberBA9-TN400
    Belt Speed (FPM)5420
    Motor (HP)3 hp
    Notch Capacity (in./OD).75" - 2"
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Gross Weight480.0
    Net weight480.0
    Motor PhaseSingle
    Shipping Weight (Lbs.)480
    Volts220
