TN-400X3 - 3 Station Abrasive Tube Notcher

or
Call (954)444-4004

Description

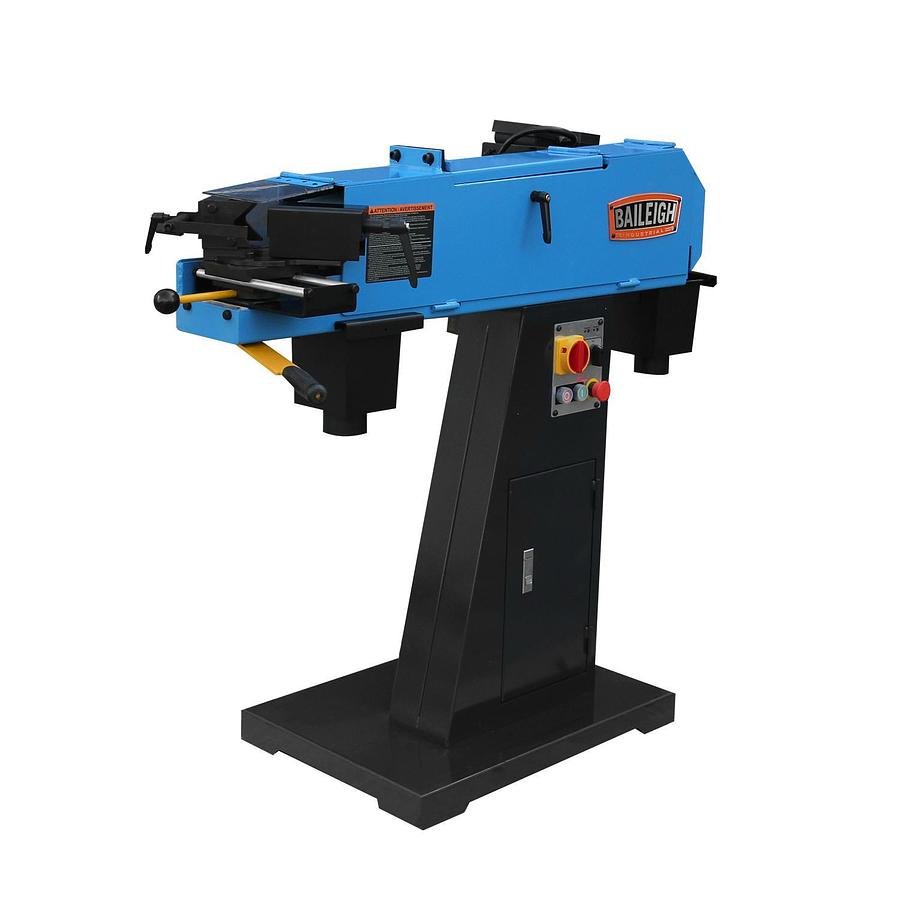

The Baileigh TN-400X3-3 Station Abrasive Tube Notcher is a powerful and versatile machine designed for quick and efficient notching of tubes and pipes. It features a 220-volt single-phase 4 hp motor and a forward and reverse switch for change of belt direction for standard grinding on the rear of the machine. The stand of the notcher has a convenient storage location for all mandrels/rollers, which includes seven rollers ranging from 1/2” to 2-1/2” that come standard with the machine. Additionally, it is designed for quick belt changes, which makes it easy to switch between different grits of the three replacement belts included (one each of 36G, 60G & 80G). Overall, the Baileigh TN-400X3-3 Station Abrasive Tube Notcher is a reliable and efficient tool for any metalworking shop.


  • Three-station design provides quick and easy access to notching, grinding, and deburring at 3 different stations.
  • Requires only 220 volts of single-phase power.
  • Robust 4hp motor
  • Forward and Reverse switch for change of belt direction for standard grinding on rear of machine
  • Notches up to 2-1/2” OD tubing at 60° with included mandrels.
  • Seven mandrels, 1/2” to 2-1/2” come standard.
  • Convenient storage location in the stand for all mandrels/rollers
  • V-jaws of the vise tightly grip both light- and heavy-gauge tubes.
  • Smooth rail system, controlled by an industrial helm joint and a polished slideway, feeds the material into the belt.
  • You can adjust belt tension with the convenient wheel.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelTN-400X3
    ConditionNew
    Stock NumberBA9-1232708
    Belt Size (W x L) (In.)4 x 79
    Belt Speed (SFPM)6600
    Motor (HP)4 hp
    Notch Capacity (in./OD).5 - 2.5
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Gross Weight510.0
    Net weight344.0
    Motor PhaseSingle
    Volts230
