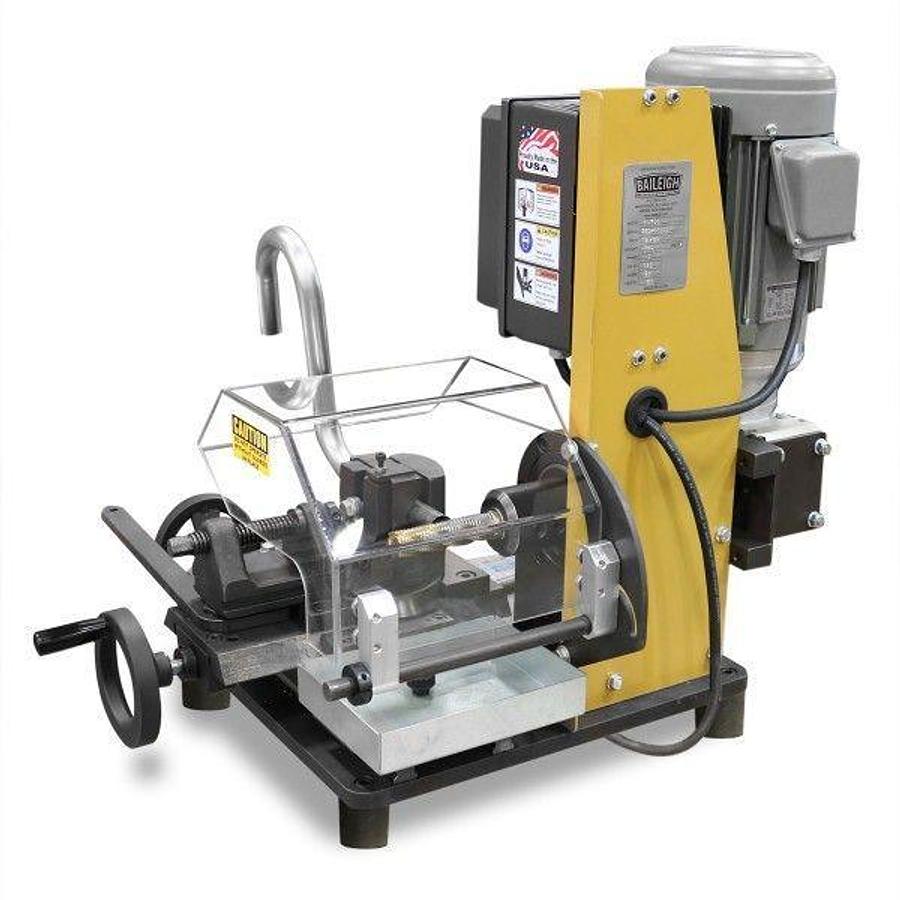

TN-700 - Tube and Pipe Notcher

or
Call (954)444-4004

Description

  • 115V end mill tube and pipe notcher.
  • For 1" to 2.5" OD tube.
  • Notches up to 60°

    • The TN-700 Tube and Pipe Notcher is a great alternative to tying up your vertical mill with that pesky tube and pipe notching.
    Recommended for: Structural work, racing and off-road chassis, steam pipe, and many more applications.
    Special Notes:
    To use end mills smaller that 1.25" a spacer sleeve is included with machine.
    Does not come with end mill, optional rolling stand is available


  • Made in the USA.
  • 2 hp motor runs on 115-volt power. You can operate it almost anywhere, including in the field.
  • Notches up to 60°.
  • Inverter driven variable speeds allow for the optimum milling speed that balances cutting power with long machine life and low wear and tear.
  • Digital readout for RPM, included
  • Included speed chart helps dial the perfect speed for your cut.
  • Vise adjusts in just about every way possible, featuring X- and Y-axis control to ensure a good cutting position.
  • Degree or angle-finder makes it simple to check the angle and ensure repeatability.
  • If you want a more traditional notch, the cam lock enables you to set your degrees; just move it in either direction to angle the notch.
  • Heavy-duty cast iron framework reduces vibration, prolongs machine life, and delivers more accurate results.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelTN-700
    ConditionNew
    Stock NumberBA9-TN700
    Motor (HP)2 hp
    Prop 65Cancer and Reproductive Harm
    Warranty1 Year
    Gross Weight350.0
    Net weight350.0
    End Mill Size1/2" Standard / 2-1/2" Optional
    Prewired Voltage (V.)115
    Shipping Weight (Lbs.)340
    Speed Range (RPM)40-230
