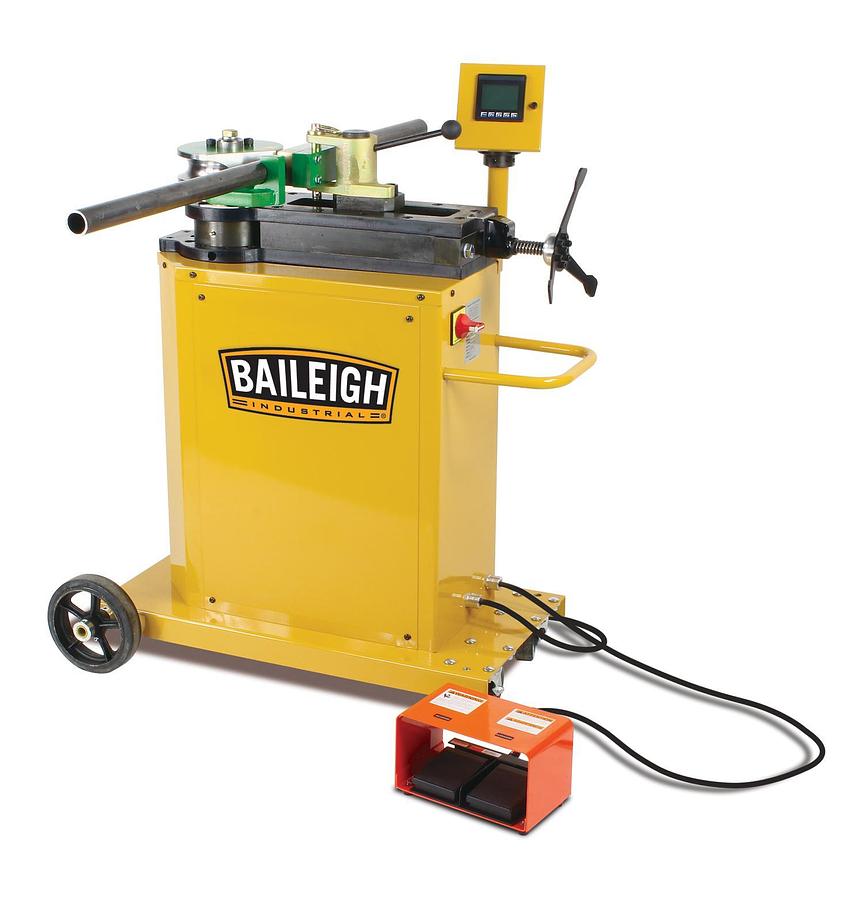

Baileigh Tube Bender - (RDB-250)

or
Call (954)444-4004

Description

  • 220V 1-phase power
  • 2 " schedule 40 pipe capacity
  • 9 " max. CLR
  • Stores 170 bend programs

    • This compact, programmable tube bender shapes material at blistering speeds with professional accuracy. Made in the USA, the RDB-250 will revolutionize the efficiency of your fabrication shop. Why choose Baileigh’s RDB-250 Tube Bender over competing machines?


    *Cuts down on time and effort for repeat projects by storing complex bend specifications as programs. *Reduces delays with extremely fast automatic bending.


    *You can rely on after-sale support and project advice from Baileigh’s experienced team—just a phone call away—for as long as you’re using the RDB-250.


    *Accommodates a wide range of tooling, available from Baileigh, to suit almost any application.


  • Runs on 220-volt single-phase power
  • Tackles heavy-duty materials, bending up to 2.5” tubing and 2” schedule 40 pipe
  • Rotary draw bender smoothly executes 180° bends in just 9 seconds and can complete up to 360° bends
  • Stores up to 170 programs of 10 bends each in its internal memory and accepts limitless external memory
  • Easy-to-use touchscreen or handy foot pedal can both operate the bender, when not in manual mode
  • 2-piece die mount loosens to release bent tubing without a hassle
  • Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.
  • Covered by a 1-year parts warranty and lifetime technical support

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelRDB-250
    ConditionNew
    Stock NumberBA9-RDB250220TS
    Chromoly Round Tube Wall2" (.125)
    Input Power220V Single Phase
    Minimum OD0.25
    Prop 65Cancer and Reproductive Harm
    Round Pipe Sch. 40 Capacity (In.)2"
    Round Tube Capacity (In.)2.5" (.125)
    Shipping Dimensions (L x W x H) (In.)60x44x77
    Square Tube Capacity (In.)2" (.125)
    Warranty1 Year
    Gross Weight590.0
    Net weight590.0
