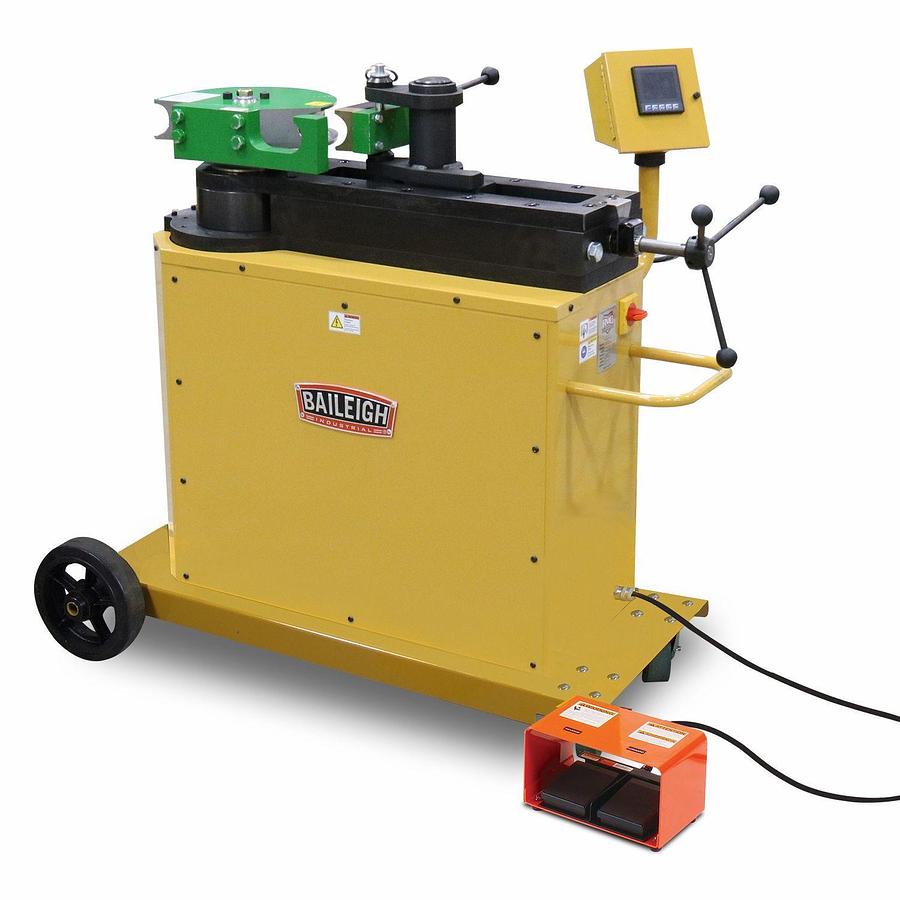

Programmable Pipe Bender RDB-325

or
Call (954)444-4004

Description

  • 220V 1-phase power
  • 2" schedule 80 pipe capacity
  • 16 " max. CLR
  • Stores 170 programs

    • Designed to be a workhorse in any shop for decades, the RDB-325 programmable tube/pipe bender can tackle a huge capacity of 2” schedule 80 pipes (mild steel T.S. 64,000 PSI) and 3” round tubing. Order this programmable pipe bender from Baileigh Industrial today.


  • 16” maximum centerline radius depending on material OD.
  • Runs on 220-volt single-phase power, so it will work in almost any fabrication setting.
  • Rotates up to 360° degrees in either direction, ideal for rod applications if you use our optional universal bending plate.
  • Comes standard with a simple-to-use touchscreen controller.
  • Internal storage holds up to 170 programs of up to 10 bends per program.
  • Also accepts memory cards (standard 2CB SD card, max) to store programs.
  • Convenient foot pedal controls let you stop and start the machine while leaving your hands free.
  • Swing-away counter die system helps you save valuable time on tooling changes and increase your production.
  • Compatible with over 5,000 optional die and tooling sets available from Baileigh Industrial. There’s sure to be one that can fit your application!
  • You can add an optional indexing table to bend on varying planes and easily duplicate complex bends.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelRDB-325
    ConditionNew
    Stock NumberBA9-RDB325220
    Center Line Radius (In.)16.5
    Chromoly Round Tube Wall3" (.083)
    Input Power220V / 1-phase
    Mild Steel Pipe Schedule 802
    Minimum Center line Radius0.5
    Minimum OD0.25
    Pipe Capacity (In.)2"
    Prop 65Cancer and Reproductive Harm
    Round Pipe Sch. 40 Capacity (In.)2
    Round Stock Capacity (Max.) (In.)1.25"
    Round Tube Capacity (In.)2" (.120)
    Shipping Dimensions (L x W x H) (In.)60x44x77
    Warranty1 Year
    Gross Weight1100.0
    Net weight1100.0
