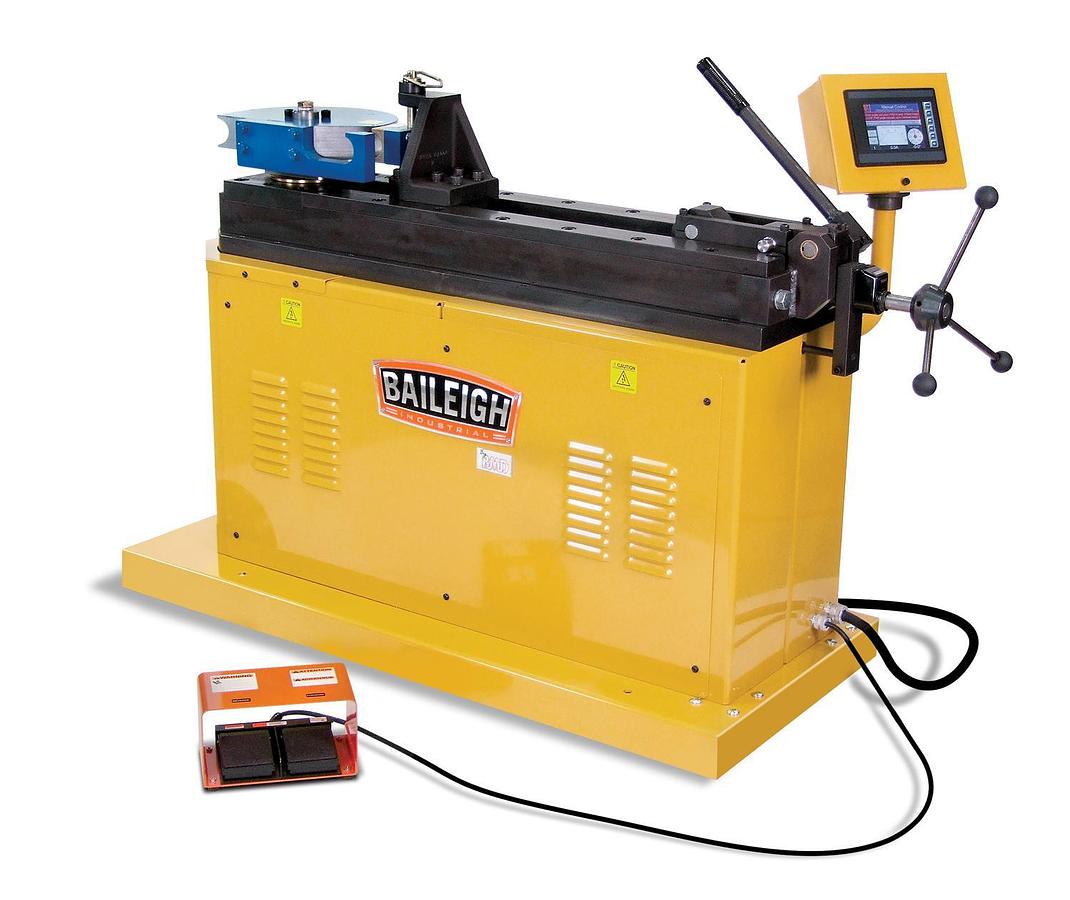

Programmable Tube Bender | RDB-350-TS

or
Call (954)444-4004

Description

  • 220V 3-phase rotary-draw bender
  • 2.5 " schedule 40 pipe capacity
  • 24 " CLR maximum
  • Stores 170 bend programs

    • This Tubing Bender for sale will stand up to the rigors of any shop—and save you time. The RDB-350-TS Industrial Tubing Bender bends 180° in 16 seconds. Its quick-release die system speeds up production.

    Mini Mandrel Attachment for the RDB-350 Tube Bender (optional)
    Sample Tooling List


  • Capacity of 2.5” schedule 40 pipe and 3” tube with .187” wall thickness
  • 24” centerline radius maximum and bends to 360° in one shot, both left and right
  • You can program the desired angle, material springback, and bend speed for easy repeatability
  • Programmer can also keep track of rotational orientation
  • Touchscreen controller designed for user-friendly programming
  • 320° rotation of the controller lets you operate RDB-350-TS from any side of the machine
  • Internal memory can store up to 170 programs of 10 bends per program
  • Unlimited program storage/backup via the micro-SD port (standard 2CB SD card)
  • Quick-release counter die system allows you to load and unload the pipe bender quickly for high production runs
  • Accepts a rotary positioning table, available from in several lengths, to achieve accurate bends on varying planes

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelRDB-350-TS
    ConditionNew
    Stock NumberBA9-RDB350220TS
    Chromoly Round Tube Wall2.5" (.125)
    Input Power220V / 3-phase
    Minimum OD0.24
    Prop 65Cancer and Reproductive Harm
    Round Pipe Sch. 40 Capacity (In.)2.5"
    Round Tube Capacity (In.)3" (.187)
    Shipping Dimensions (L x W x H) (In.)78x45x80
    Square Tube Capacity (In.)3" (.125)
    Warranty1 Year
    Gross Weight1484.0
    Net weight1484.0
