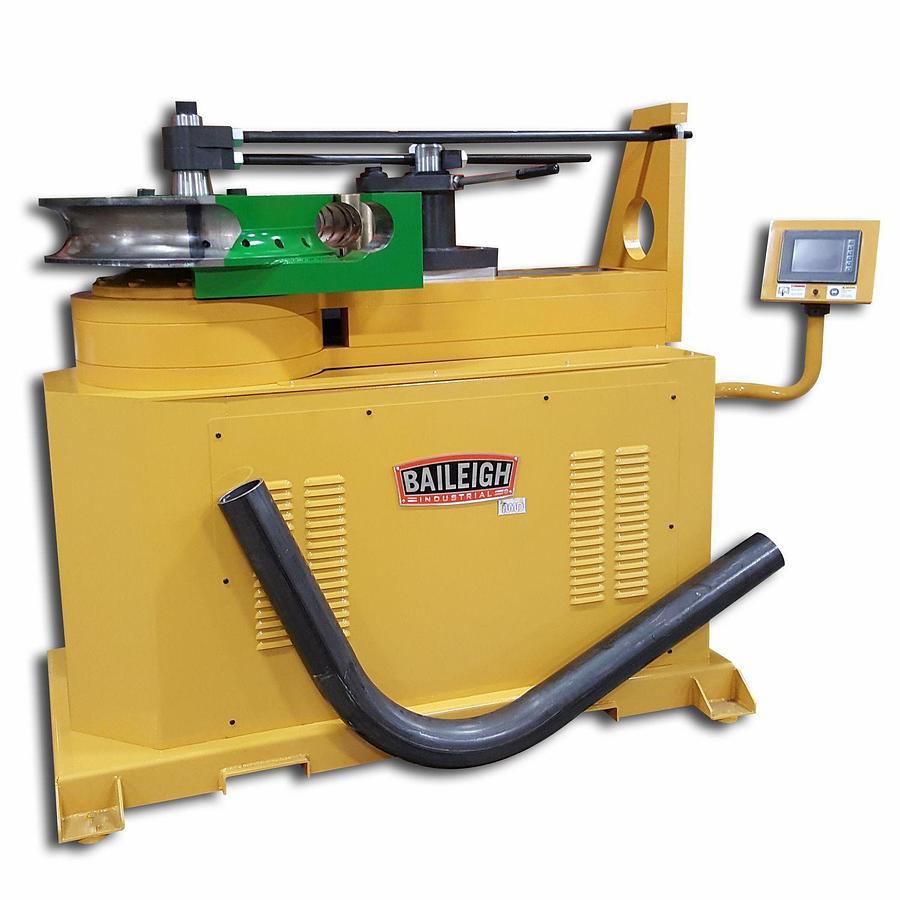

Baileigh Pipe Bender RDB-480

or
Call (954)444-4004

Description

  • 220V 3-phase power
  • 4"
  • schedule 80 pipe capacity
  • 28"

    • This programmable pipe bender shapes material at blistering speeds with professional accuracy. Made in the USA, the RDB-480 pipe bender for sale will revolutionize the efficiency of your fabrication shop.
    Why choose Baileigh’s RDB-480 Tube Bender over competing machines?
    Cuts down on time and effort for repeat projects by storing complex bend specifications as programs.
    Reduces delays with extremely fast automatic bending.
    You can rely on after-sale support and project advice from Baileigh’s experienced team—just a phone call away—for as long as you’re using the RDB-480.
    Accommodates a wide range of tooling, available from Baileigh, to suit almost any application.


  • Runs on 220 volt three-phase power.
  • Tackles heavy-duty materials, bending up to 5” tubing and 4” schedule 80 pipe.
  • Rotary draw bender smoothly executes 180° bends in just 20 seconds and can complete up to 360° bends.
  • Stores up to 170 programs of 10 bends each in its internal memory and accepts limitless external memory.
  • Easy-to-use touchscreen or handy foot pedal can both operate the bender, when not in manual mode.
  • 2-piece die mount loosens to release bent tubing without a hassle.
  • Covered by a 1-year parts warranty and lifetime technical support.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelRDB-480
    ConditionNew
    Stock NumberBA9-RDB480220
    Bend DirectionClockwise
    Input Power220V - 3-Phase
    Max Bend (Degrees)180.0000
    Mild Steel Pipe Schedule 804
    Minimum Center line Radius6
    Minimum OD2.5
    Motor (HP)10 hp
    Prop 65Cancer and Reproductive Harm
    Round Tube Capacity (In.)5" x .083"
    Shipping Dimensions (L x W x H) (In.)60" x 44" x 68"
    Warranty1 Year
    Gross Weight7000.0
    Net weight7000.0
