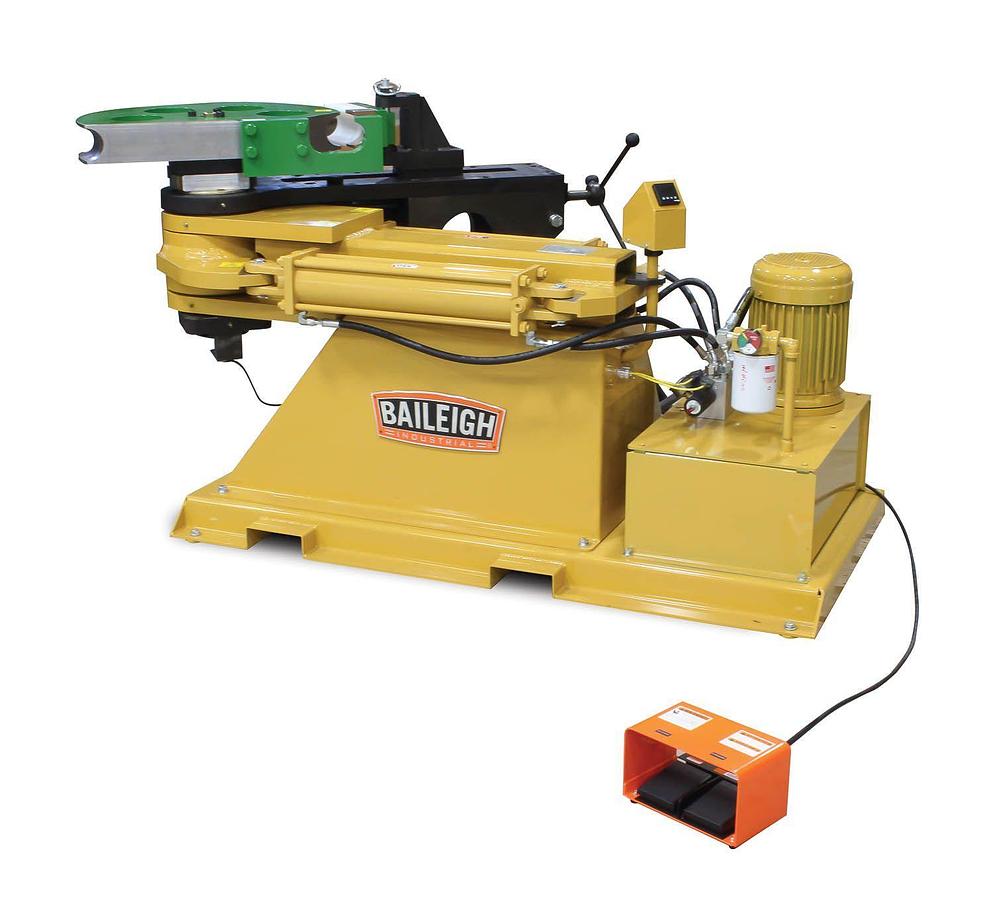

Hydraulic Pipe Bender - (RDB-500)

or
Call (954)444-4004

Description

  • Rotary draw tube and pipe bender
  • Runs on 220V 3-phase power
  • 3" schedule 40 pipe capacity
  • 20" CLR maximum

    • If you need to bend big pipe—and we mean really big pipe —then this is the Industrial Hydraulic Rotary Draw Bender for you.

    Why choose the RDB-500 over similar machines?
    *This pipe bender is made in the USA to the highest quality standards.
    *You can take on profitable military and industrial bending projects and know that your bender is up to the job.
    *Includes accuracy-enhancing auto-stop, a feature that some companies consider an upgrade.
    *Fast cycle time makes your shop more efficient.
    *Easily accommodates 5,000+ drop-on tooling options. And if you don’t see the tooling you need, we can customize it for you.
    *Your shop can count on after-sale support and application advice from Baileigh’s team of representatives, all of whom have hands-on experience.
    Feel free to call us at 1-920-717-1266 to talk to a customer service representative or fill out our contact form. Order this hydraulic pipe bending machine for your application today!
    Sample Tooling List


  • Industrial-grade, low-pressure hydraulic system runs on 220-volt 3-phase power
  • Handles a maximum capacity of 3” schedule 40 pipe, 3” square, and 3.5” round tube (.188 wall mild steel)
  • Maximum centerline radius of 20”, depending on wall thickness and material
  • Bends pipe up to 206° in a single shot, without stopping or ratcheting
  • Foot pedal allows you to control the bender at a variable speed
  • Digital auto-stop lets you specify the desired bend degree for ease and accuracy
  • Solid steel framework, weighing 1800 lbs., ensures durability and accuracy
  • Use this machine for: Military production, oil rigs, gas station bumpers, and other applications involving large-radius pipe
  • Covered by a 1-year parts warranty and lifetime technical support

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelRDB-500
    ConditionNew
    Stock NumberBA9-RDB500220SB
    Chromoly Round Tube Wall3.5" (.187)
    Input Power220V / 3-phase
    Minimum OD0.25
    Prop 65Cancer and Reproductive Harm
    Round Pipe Sch. 40 Capacity (In.)3"
    Round Tube Capacity (In.)3" (.250)
    Shipping Dimensions (L x W x H) (In.)72x48x48
    Square Tube Capacity (In.)3" (.250)
    Warranty1 Year
    Gross Weight1940.0
    Net weight1940.0
