Tube Bender - BA9-RDB175B

or
Call (954)444-4004

Description

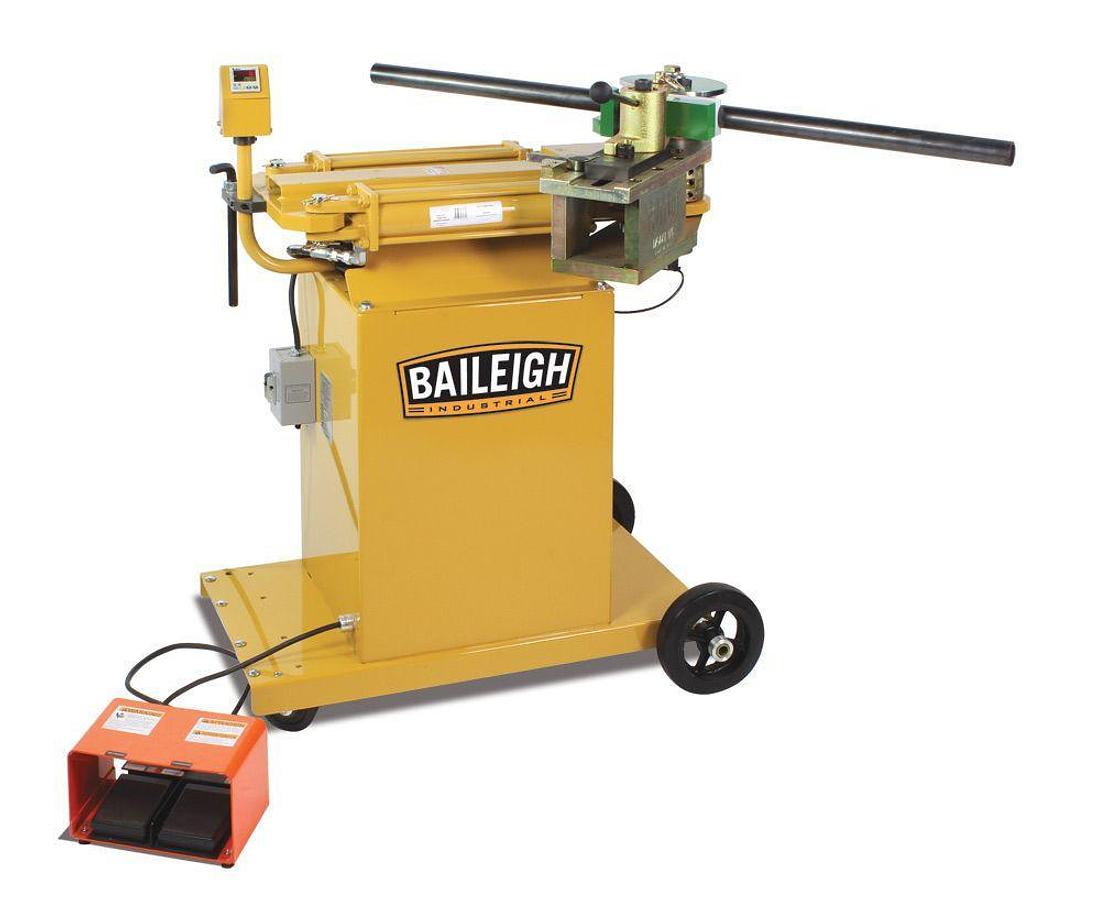

  • 110V hydraulic rotary draw tube and pipe bender
  • 2" schedule 40 pipe capacity
  • 9" CLR maximum
  • Auto-stop and ratcheting counter die holder

    • Made in the USA, this hydraulic rotary draw bender improves on our breakthrough RDB-150 with patented* additional features to streamline your bending jobs.
    Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.
    Why choose the RDB-175 over similar machines?
    Improved-accuracy digital readout package measures bend angle on the die head or spindle instead of cylinder placement to get a true reading.
    You can count on the extreme speed and reliability of the RDB-175 to eliminate delays.
    Accepts a wide range of quality tooling options from Baileigh, with over 5000 die sets available.
    Limitless after-sale support from Baileigh representatives with hands-on experience is just a phone call away.
    *U.S Patent No. 7,380,430 / U.S Patent No. 7,743,636.


  • Maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel.
  • Rotary draw executes 180° bends in a smooth single motion.
  • Bends almost 300% faster than the RDB-150, making quick work of round tube, pipe, and square tubing.
  • Auto-stop programming lets you achieve the desired bend angle without worrying about accuracy.
  • Easy-to-read digital degree indicator to monitor bend progress and check angles.
  • Convenient foot pedal controls the movements of the bender, leaving your hands free to guide the material.
  • Works with up to a 9’’ centerline radius to accommodate 90% of applications.
  • Ratcheting counter die adjustment allows for quick tooling changes.
  • No valves on top, leaving plenty of open space for complex bends.
  • Backed by a 1-year parts warranty and lifetime technical support.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelBA9-RDB175B
    ConditionNew
    Stock NumberBA9-RDB175B
    Aluminum Pipe Schedule 402.5" (.156)
    Center Line Radius9" MAX
    Chromoly Round Tube Wall2" (.125)
    Input Power110 volt
    Max. Bend (Deg.)180
    Minimum Center line Radius.5"
    Minimum OD0.25
    Pipe Capacity (In.)2"
    Prop 65Cancer and Reproductive Harm
    Round Tube Capacity (In.)2.5" (.125)
    Shipping Dimensions (L x W x H) (In.)60x44x77
    Square Tube Capacity (In.)2" (.125)
    Warranty1 Year
    Gross Weight700.0
    Net weight700.0
