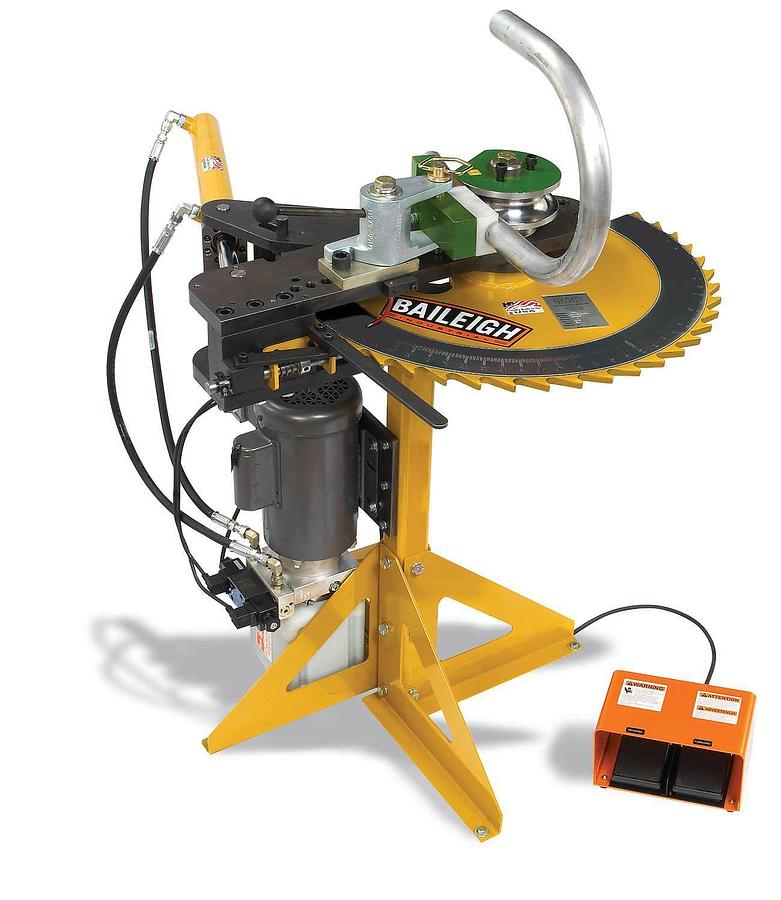

Baileigh Industrial Rotary Draw Bender - RDB-125

or
Call (954)444-4004

Description

  • 110V hydraulic rotary draw tube and pipe bender
  • 2" schedule 40 pipe capacity
  • 10.5" maximum CLR

    • Tired of your exhausting manual bender? This hydraulic rotary draw bender will increase your productivity.


  • Requires only 110-volt, single-phase power for easy plug-in almost anywhere.
  • Handles a maximum capacity of 2.5” OD tubing, 2” OD Chrom alloy, 2” square tubing, and 2” schedule 40 pipe.
  • Maximum centerline of 8”, depending on material’s OD.
  • Bends up to 200°, allowing for true 180° bends without having to re-pin the die set.
  • Takes only 4 complete pushes to reach 180°.
  • Built-in anti-spring back mechanism lets hydraulic cylinder retract without losing its place in the bend.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support from our knowledgeable team.
  • All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelRDB-125
    ConditionNew
    Stock NumberBA9-RDB125
    Aluminum Pipe Schedule 402.5" (.156)
    Chromoly Round Tube Wall2" (.125)
    Input Power110 volt
    Max. Bend (Deg.)200 deg.
    Minimum Center line Radius.5"
    Minimum OD0.25
    Prop 65Cancer and Reproductive Harm
    Round Tube Capacity (In.)2.5" (.125)
    Shipping Dimensions (L x W x H) (In.)60x44x77
    Square Tube Capacity (In.)2" (.125)
    Warranty1 Year
    Gross Weight590.0
    Net weight590.0
