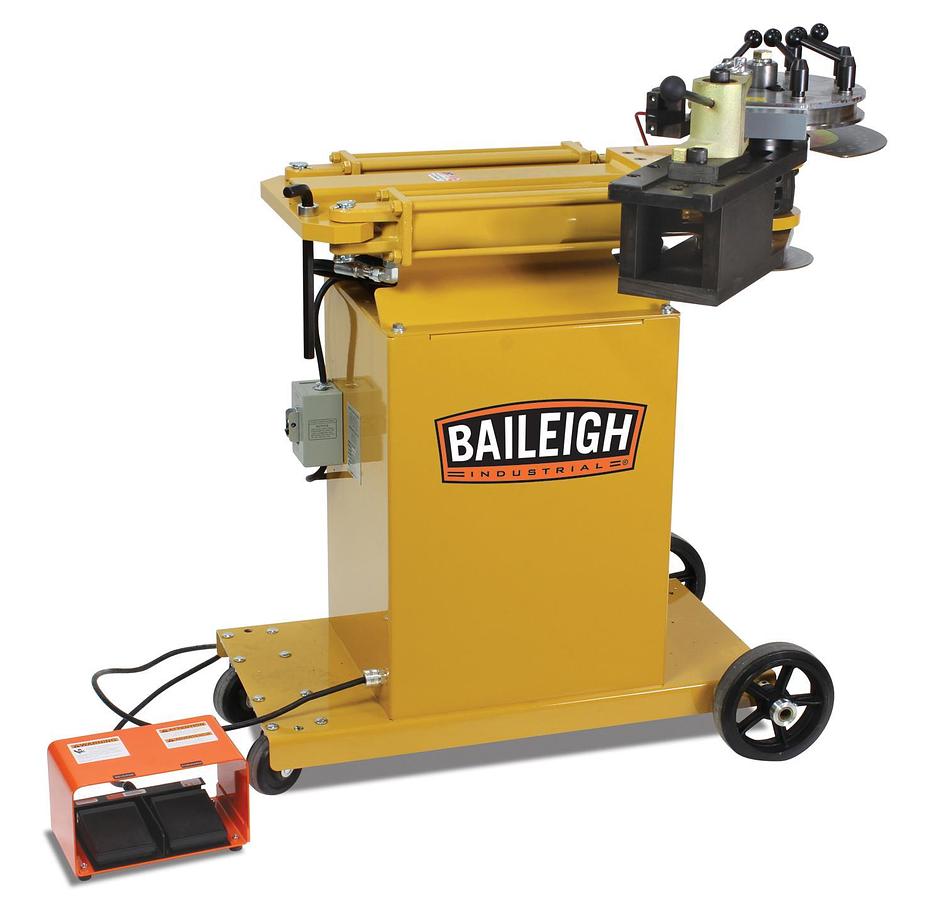

RDB-150-AS - Tube and Pipe Bender

or
Call (954)444-4004

Description

  • 110V hydraulic rotary draw tube and pipe bender
  • 2" schedule 40 pipe capacity
  • 8" CLR maximum
  • Auto-stop programmer

    • In 2002, Baileigh broke new ground for Hydraulic Benders with the RDB-150—and we didn’t stop there! Made in the USA, this Pipe Bender model improves on the original with an added auto-stop feature, for even more exacting standards. Why choose the RDB-150-AS over comparable machines? It’s the best buy in hydraulic pipe benders today, designed to make your fabrication shop more efficient. Comes standard with auto-stop to save time and cut down on errors. Accepts quality “drop-on” tooling from Baileigh, providing thousands of options for your application—many more than “sandwiched” tooling could offer. Limitless after-sale support and advice on projects are just a phone call away. Feel free to call us at 1-920-717-1266 to talk to a customer service representative or fill out our contact form. Sample Tooling List


  • Powerful low-pressure hydraulic system operates on only 110 volts
  • Tackles a maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel
  • Executes consistent 180° bends in one fluid motion
  • Auto-stop programmer lets you set the desired bend angle for convenient precision and repeatability
  • Quick-release counter die makes for fast loading and unloading
  • Easy-to-read degree indicator shows a bend’s progress
  • Compact machine includes wheels on the base for convenient storage in small shops
  • Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.
  • Covered by a 1-year parts warranty
  • Includes lifetime technical support form from our experienced team of representatives

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelRDB-150-AS
    ConditionNew
    Stock NumberBA9-RDB150ASB
    Chromoly Round Tube Wall2" (.125)
    Input Power110V
    Minimum OD0.25
    Prop 65Cancer and Reproductive Harm
    Round Pipe Sch. 40 Capacity (In.)2"
    Round Tube Capacity (In.)2.5" (.125)
    Shipping Dimensions (L x W x H) (In.)60x44x77
    Square Tube Capacity (In.)2" (.125)
    Warranty1 Year
    Gross Weight610.0
    Net weight610.0
