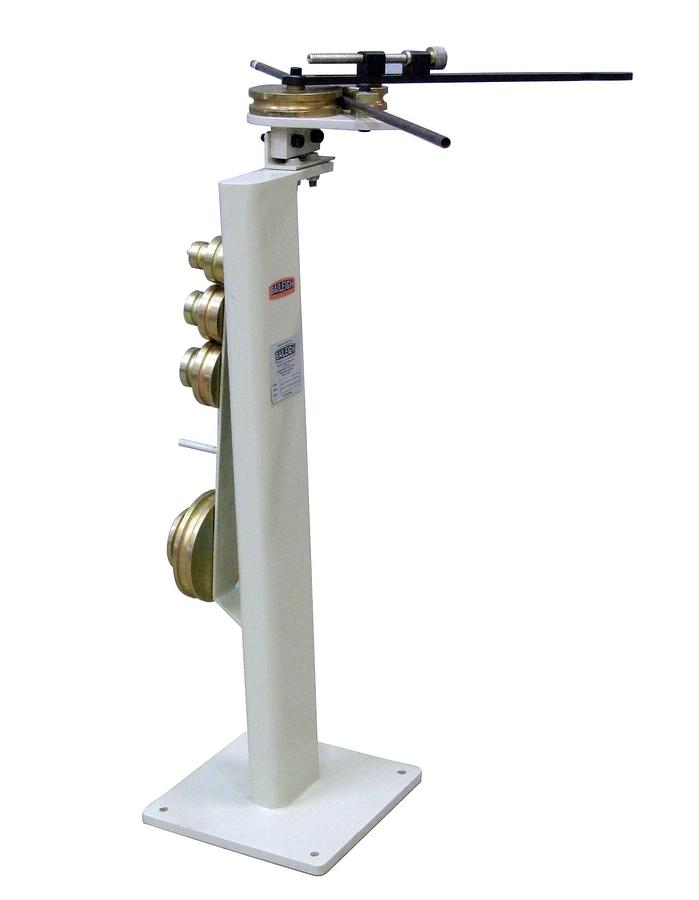

Hand Bender - (RDB-10)

or
Call (954)444-4004

Description

  • Manual tubing bender for hydraulic lines
  • Bends up to 180Deg.
  • Includes 10 die sets from 1/4" to 5/8" OD

    • If your job involves building race cars, restoring autos and airplanes, or working with an automated machinery builder, you know the value of properly bent lines. Our simple and precise Manual Tubing Bender will save you time and money from the first time you use it.
    Included Die Sets:
    1/4 x 3D
    6.350 mm x 3D
    1/4 x 5D
    6.350 mm x 5D
    5/16 x 3D
    7.938 mm x 3D
    5/16 x 5D
    7.938 mm x 5D
    3/8 x 3D
    9.525 mm x 3D
    3/8 x 5D
    9.525 mm x 5D
    1/2 x 3D
    12.7 mm x 3D
    1/2 x 5D
    12.7 mm x 5D
    5/8 x 3D
    15.875 mm x 3D
    5/8 x 5D
    15.875 mm x 5D
    You may also like the Manual Tube Bender RDB-050.

  • Bends tubing up to 180°
  • Makes serpentine bends without difficulty at very tight radii (depending on the OD, material, and wall thickness)
  • Comes standard with 10 different size combinations, from 1/4" to 5/8" OD in either 3 or 5 times the diameter radii
  • Works with mild steel, stainless steel, and certain copper and aluminum
  • Includes a heavy pedestal and tooling rack (in addition to the bending machine itself)
  • Recommended for: Bending air lines, brake lines, fuel lines, and general hydraulic lines.

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelRDB-10
    ConditionNew
    Stock NumberBA9-1006772
    Input PowerManual
    Prop 65Cancer and Reproductive Harm
    Shipping Dimensions (L x W x H) (In.)43x16x19
    Warranty1 Year
    Gross Weight155.0
    Net weight155.0
