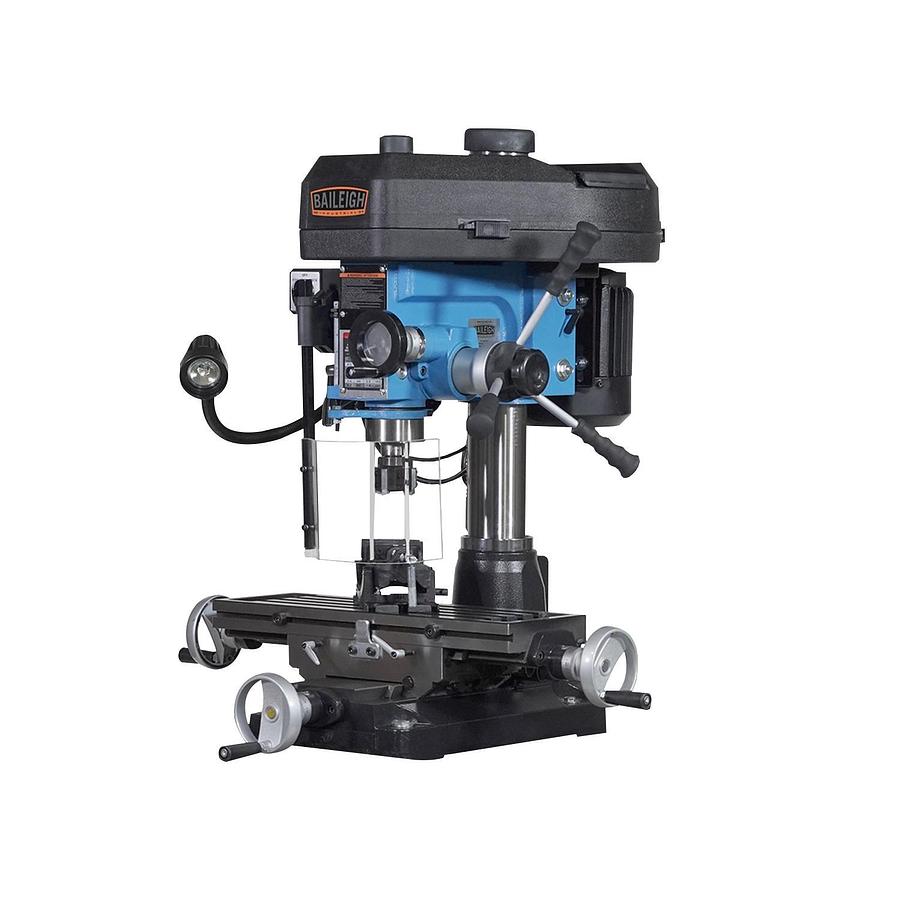

VMD-15 - 15" Mill Drill with R-8 Taper

or
Call (954)444-4004

Description

  • 115V 1 hp motor.
  • R8 taper
  • 1” drilling capacity.
  • 12 speeds: 110 to 2580 rpm.

    • The Baileigh VMD-15 Vertical Mill Drill is the perfect option when operators need to do some light-duty milling that doesn't require a full-size milling machine but still allows the use of R-8 tooling. The ability to drill and mill with one machine saves time and money. The VMD-15 Vertical Mill Drill is perfect for maintenance departments, machine, welding, job, or even home shops. An optional stand is also available if bench space is at a premium.


  • Efficiency
  • Belt-drive, step pulley system allows for rapid, easy speed changes to work with a variety of materials
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • Drill press style angle vise locks material in place
  • Drill chuck & arbor allow easy changes from drilling to milling
  • 360° head swivel allows milling or drilling of oversized material
  • Articulated LED lamp illuminates your workpiece
  • Performance
  • Single piece, the cast iron column provides stable support for precise milling or drilling reducing deflection
  • Easy-to-read external depth gauge for accurate milling & drilling

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelVMD-15
    ConditionNew
    Stock NumberBA9-1231787
    Base Dimensions (In.)12-1/2 x 19-3/4
    Column Diameter (In.)3-5/8
    Drilling Capacity (In.)1.5
    Max Distance Spindle to Table (In.)14-1/2
    Motor (HP)1
    Number of Spindle Speeds12
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)2-7/16
    Range of Spindle Speeds (RPM)110 - 2580
    Spindle Taper (In. x TPI)R8
    Spindle Travel (In.)4.75"
    Swing (In.)14-1/2
    T-Slots Number and Size (In.)4 and 9/16
    Table Size (L x W) (In.)7-1/2 x 23
    Warranty1 Year
    Work Table Weight Capacity (Lbs.)350
    Gross Weight457.0
    Net weight370.0
