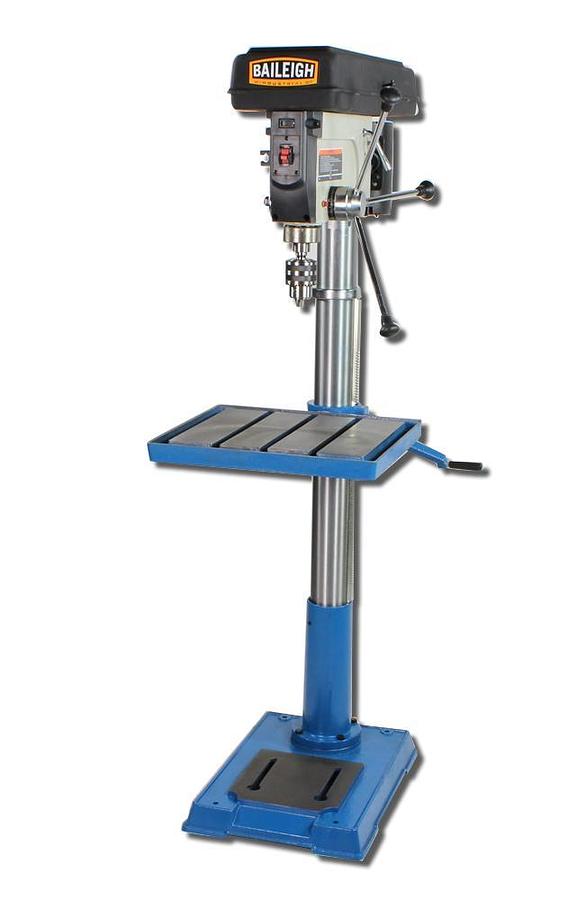

Floor Drill Press | DP-2012F-HD-V3

or
Call (954)444-4004

Description

  • 220V single-phase floor drill press
  • 20" swing
  • 12 spindle speeds
  • 16.5" x 18.5" table

    • Need more capacity from your Drill Press? Well take a look at the DP-2012F-HD-V3 Floor Drill Press to see if it will fit your needs. This mammoth has a 20” swing and a cast iron 16.5"x 18.5" oversized table and can handle just about anything that you can throw at it. The 3.6” diameter column and 24” x 16.5” cast iron base make for one rigid structure.
    For more information on the DP-2012F-HD-V3 or any of the other Baileigh Industrial Floor Drill Presses call and speak to a representative today.


  • Runs on 220-volt single phase power
  • Turns the MT4 spindle to 3200 RPMs
  • The range of speeds is done using six pulleys that give the DP-2012F-HD-V3 12 spindle speeds
  • It also includes a drill chuck that can opens to a maximum of ¾”
  • Baileigh machines are covered by 1-Year Parts Warranty

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelDP-2012F-HD-V3
    ConditionNew
    Stock NumberBA9-1015771
    AccessoriesIncluded Accessories
    Distance Base to Spindle (Min.) (In.)46.75
    Drilling Capacity (In.)1.25
    Number of Spindle Speeds12 - 220 to 3200 rpm
    Prop 65Cancer and Reproductive Harm
    Shipping Dimensions (L x W x H) (In.)69x44x24
    Spindle Distance to Table (Max.) (In.)26"
    Table T-Slot (In.)3 @ 5/8"
    Table Width (In.)18.5"
    Warranty1 Year
    Gross Weight390.0
    Net weight390.0
