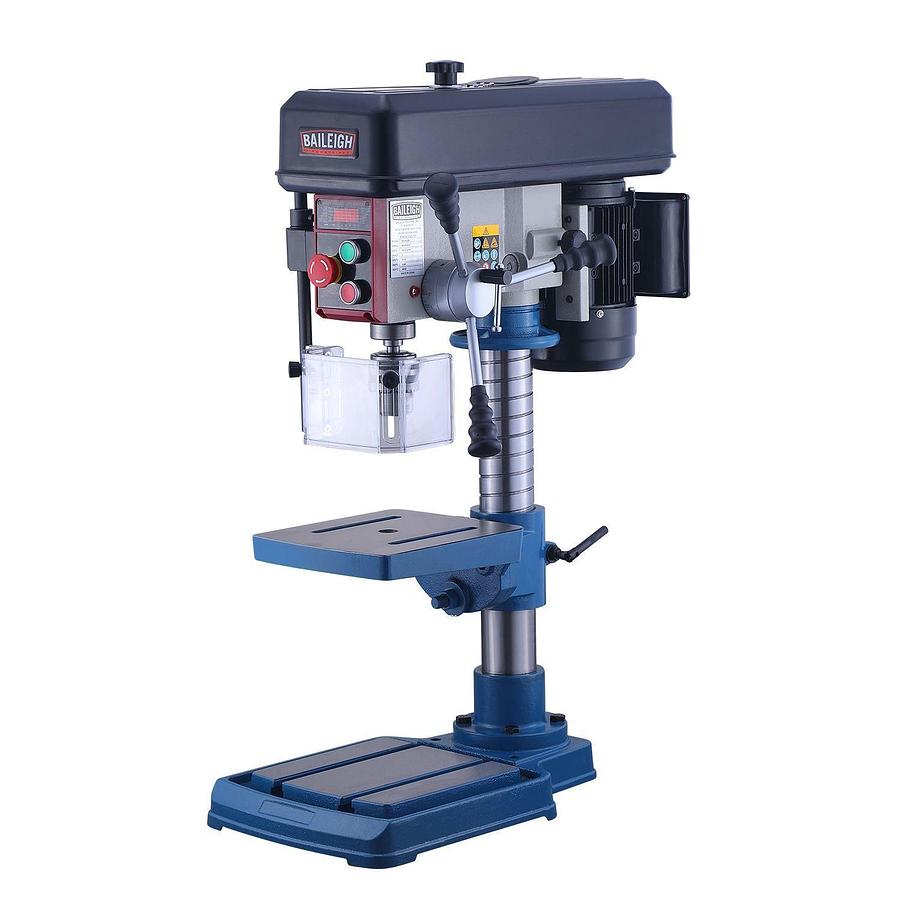

DP-3814B - Bench Top Drill Press

or
Call (954)444-4004

Description

  • 14" Swing
  • Easy adjust head and table
  • 5 Spindle Speeds
  • 9" x 10" Table

    • Looking for a small, compact, bench top drill press that has the power to do any task you ask of it at an economical price? The DP-3814B 14" swing is just what you are looking for. This drill press runs smoothly even at full capacity—and will do so for years at your shop.

  • 1/2 hp motor requires 110-volt power and will work at virtually any shop or site
  • Belt-driven head drills a maximum capacity of 5/8” steel
  • Spindle speeds in the range from 250 to 2900 rpm to suit your application
  • 2-3/4" wide steel column eliminates flexing even when drilling at full capacity
  • Easy to adjust table and head position with its clever screw type column
  • Rigid cast iron base and table add strength to the drill’s structure
  • The table even tilts left or right to 45 degrees
  • Includes a safety shield around the drill head to protect you

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelDP-3814B
    ConditionNew
    Stock NumberBA9-1228211
    Base Size (In.)18-3/4" x 12-1/2"
    Chuck Size (In.).03" - .625"
    Column Diameter (In.)2-3/4
    Drilling Capacity Mild Steel (In.)5/8
    Headstock MovementYes (360 degrees)
    Input Power110 Volt
    Number of Spindle Speeds5
    Overall Dimensions (L x W x H) (In.)26 1/4 x 13 x 38 1/4
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)1.85"/ 47mm
    Range of Spindle Speeds (RPM)250-2900
    Shipping Dimensions (L x W x H) (In.)48x31x16
    Speeds16
    Spindle Distance to Table (Max.) (In.)11-1/2"
    Spindle TaperB16
    Spindle Travel (In.)3-1/2
    Swing (In.)14"
    Table MaterialCast Iron
    Table Size (In.)9" x 10-1/4"
    Table T-Slot (In.)2 @ .531"
    Table Tilt (Deg.)L or R 45 Degrees
    Warranty1 Year
    Working Load Limit (Lbs.)132
    Gross Weight210.0
    Net weight210.0
    Distance From Spindle To Base (In.)19-5/8"
    Shipping Weight (Lbs.)194
