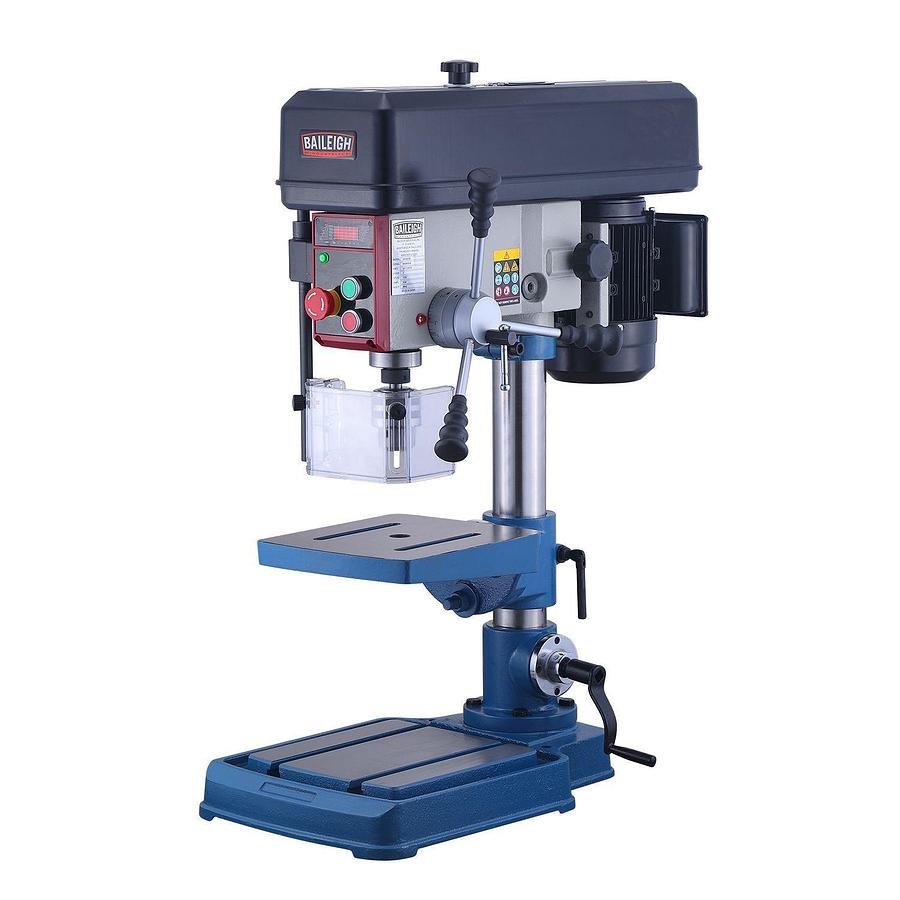

DP-4016B - 16" Bench Top Drill Press

or
Call (954)444-4004

Description

  • 16" Swing
  • 5 Spindle Speeds
  • 11" x 10" Table
  • 110V

    • Looking for a small, compact, bench top drill press that has the power to do any task you ask of it at an economical price?  The DP-4016B 16" swing is just what you are looking for. This drill press runs smoothly even at it's 1" full capacity—and will do so for years at your shop.


  • 1/2 hp motor requires 110-volt power , and will work at virtually any shop or site.
  • Belt-driven head drills a maximum capacity of 5/8" mild-steel
  • Spindle speeds in the range from 250 to 2900 rpm to suit your application.
  • 2-3/4" wide steel column eliminates flexing even when drilling at full capacity
  • Rigid cast iron base and table adds strength to the drill's structure
  • The table even tilts left or right to 45 degrees
  • Includes safety shield around the drill head to protect you
  • Baileigh backs this bench-top drill press machine with a 1-year parts warranty & lifetime technical support by phone from our experienced team

    • Show All

    Specifications

    ManufacturerBaileigh
    ModelDP-4016B
    ConditionNew
    Stock NumberBA9-1228212
    Base Size (In.)10.63” x 10.03”
    Chuck Size (In.).03" - .625" (B16)
    Column Diameter (In.)2-3/4
    Distance Base to Spindle (Min.) (In.)22.83
    Drilling Capacity Mild Steel (In.)3/4
    Headstock MovementYes (360 degrees)
    Input Power110 Volt
    Number of Spindle Speeds5
    Overall Dimensions (L x W x H) (In.)29.13" x 17.52" x 41.33"
    Prop 65Cancer and Reproductive Harm
    Range of Spindle Speeds (RPM)250-2900
    Shipping Dimensions (L x W x H) (In.)48" x 30" x 21"
    Spindle Distance to Table (Max.) (In.)13.18"
    Spindle TaperMT2
    Spindle Travel (In.)3.93"
    Swing (In.)16"
    Table MaterialCast Iron
    Table Size (In.)11.14 x 9.76
    Table T-Slot (In.)2 @ .531"
    Table Tilt (Deg.)L or R 45 Degrees
    Warranty1 Year
    Working Load Limit (Lbs.)132
    Gross Weight260.0
    Net weight260.0
    Shipping Weight (Lbs.)269
